Home > Industry Power Supply > Brick Power Supply > PDH Series

1/1

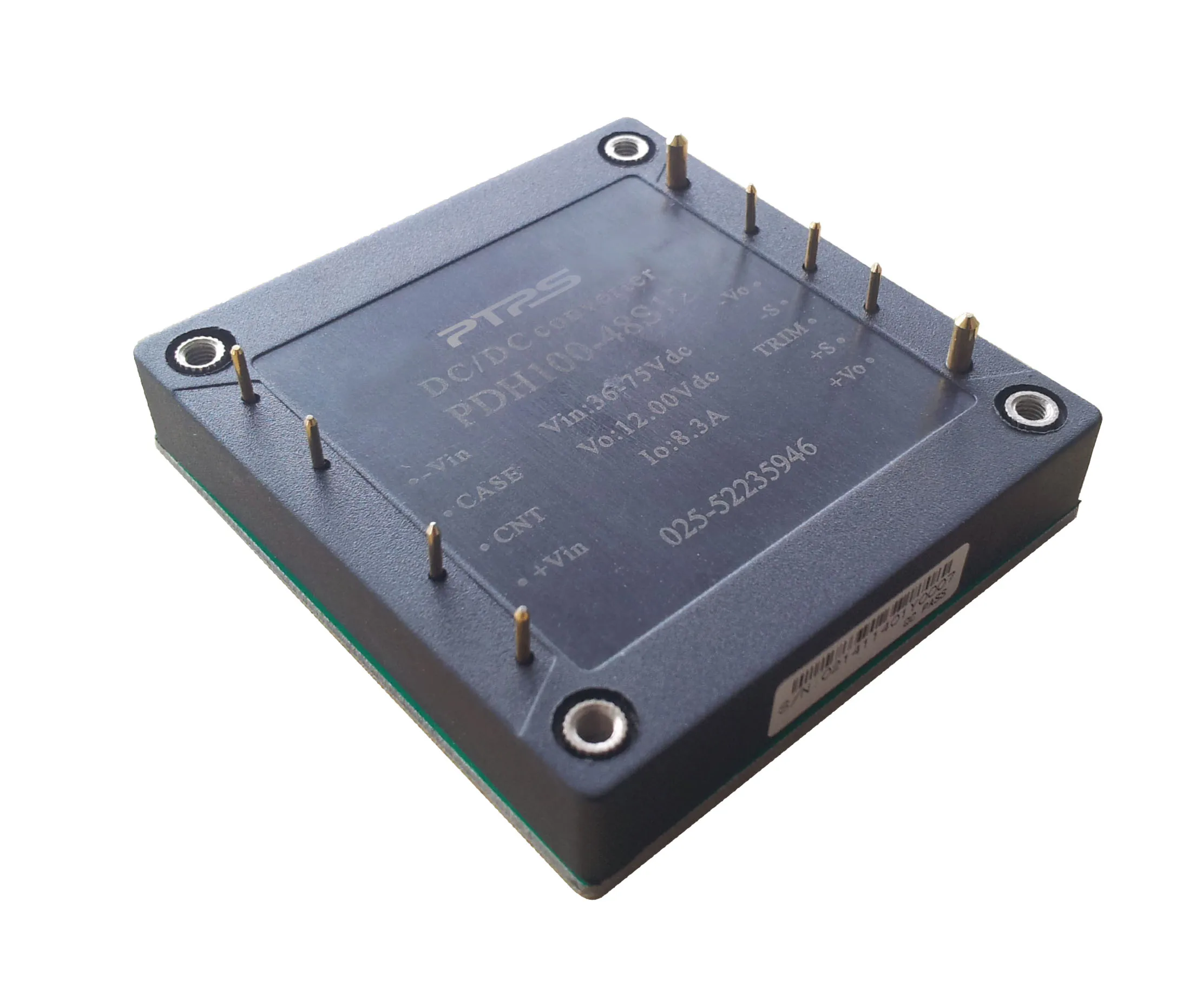

PDH Series 300W-1000W

Name: PDH Series 300W-1000W
Brand: MY SHOP
SKU: 1600851960073
Price: 35 USD
Availability: InStock

0.0 (0)

0 Sold

$35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Output Power:

300W

600W

700W

1000W
Input Voltage:

9-36V

18-75V

16-40V

180-425V

400-650V
Output Voltage:

12V

24V

5V

28V

48V
Output Current:

25A

60A

50A

12.5A

6.25A

41.7A

20.8A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	100-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Output Type	Single

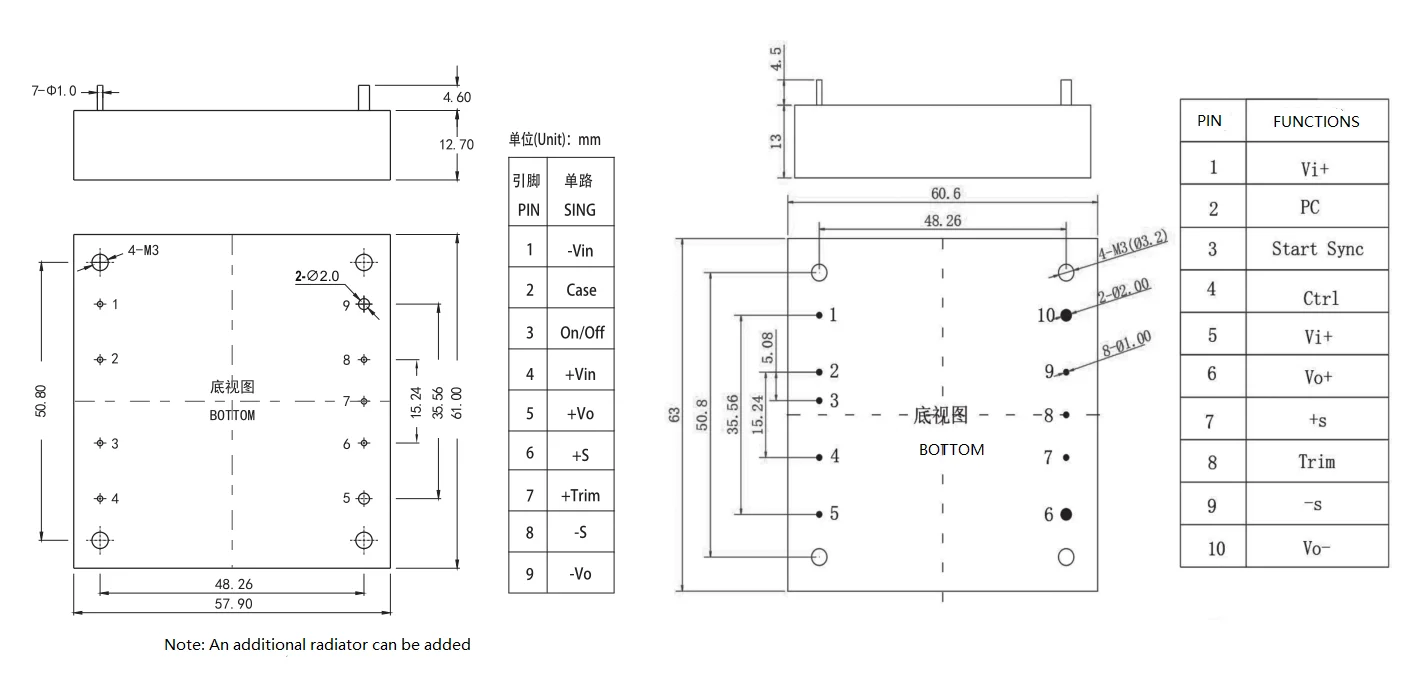

Size	57.96112.7mm	Model Number	PDH Series
Warranty	2 years	Customized support	Custom LOGO
Certificate	CE,RoHs, ect

Packaging and delivery

Selling Units	Single item	Single package size	25X25X20 cm
Single gross weight	3.000 kg

Features

* Wide range input
* High voltage isolation
* Control and trim functions
* High efficiency
* 100% domestic production of components
Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

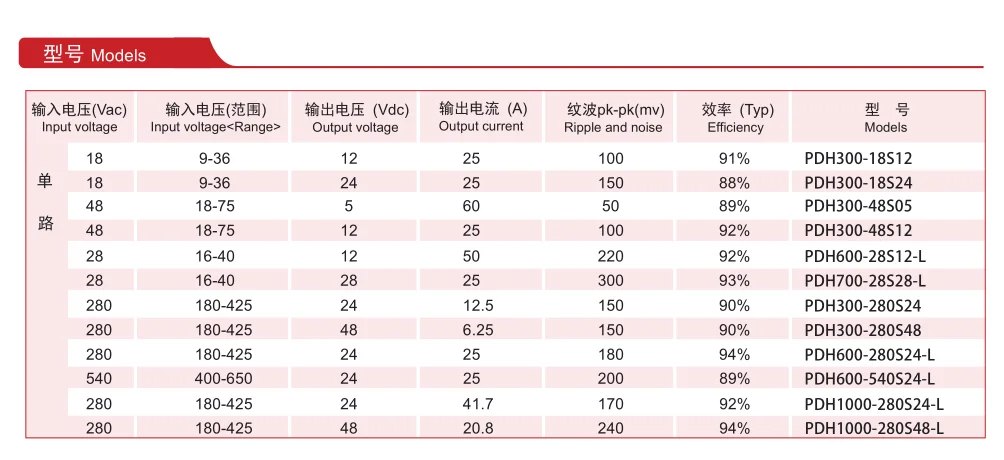

Input Characteristic：

Voltage range
18VDC (Normal Rated Value): 9 ~ 36VDC

24VDC (Normal Rated Value): 18 ~ 36VDC
28VDC (Normal Rated Value): 16 ~ 40VDC

48VDC (Normal Rated Value): 18 ~ 75VDC
280VDC (Normal Rated Value): 180 ~ 425 VDC
540VDC (Normal Rated Value): 400 ~ 650VDC

Output Characteristic：

* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Full load) ……….........……… ±0.5%
* Load regulation (20%-100%load) ………........…..........±0.5%

General Characteristic：
* Switching frequency …………………… 200-350 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage Input-output:>1500 VDC
Input-case:>1050 VDC
Output-case:>500 VDC

* Environmental Characteristic

* Substrate Working Temperature ………Industry: -40-+100℃
* Storage temperature …………………… Industry: -45~ +105℃

REM Features：
* Positive logic: The module is enabled when the control signal is at a high level or left floating (not connected).
* Remote Sense (Output Voltage Compensation): max: 105% Vo

Protection features：

Input undervoltage protection

Output overcurrent protection
Input overvoltage protection

Output short circuit protection
Over temperature protection
