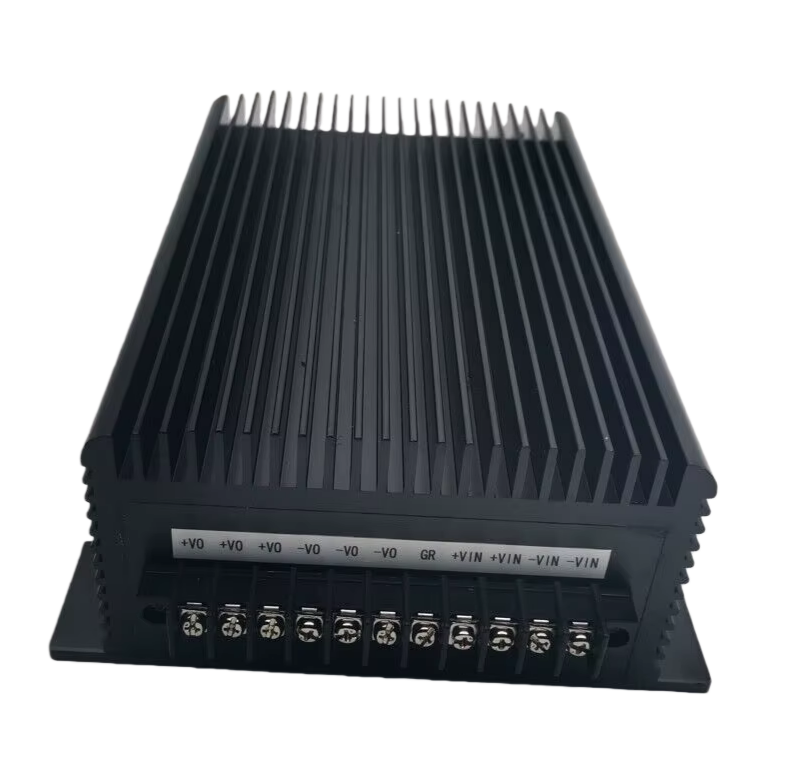

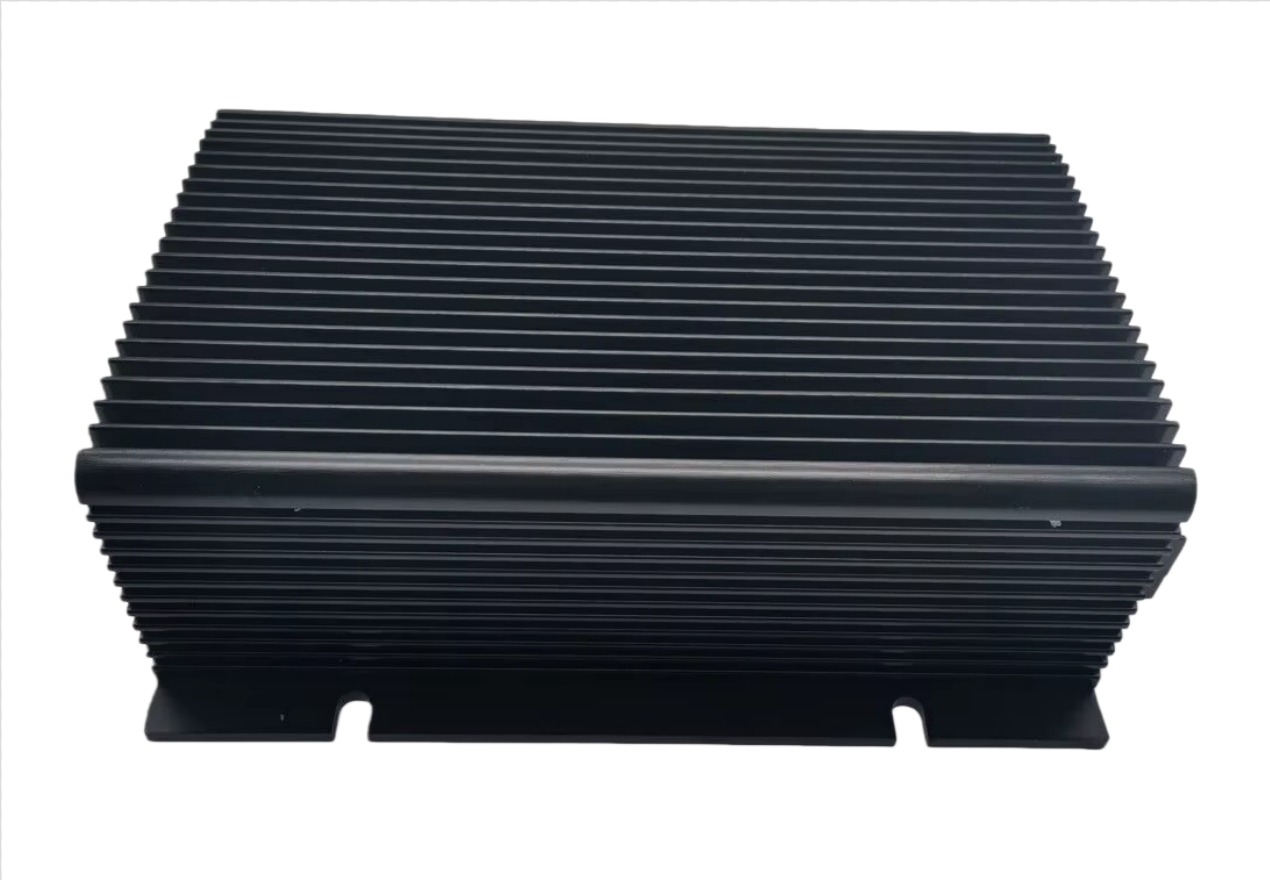

  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
1/1
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
Share:

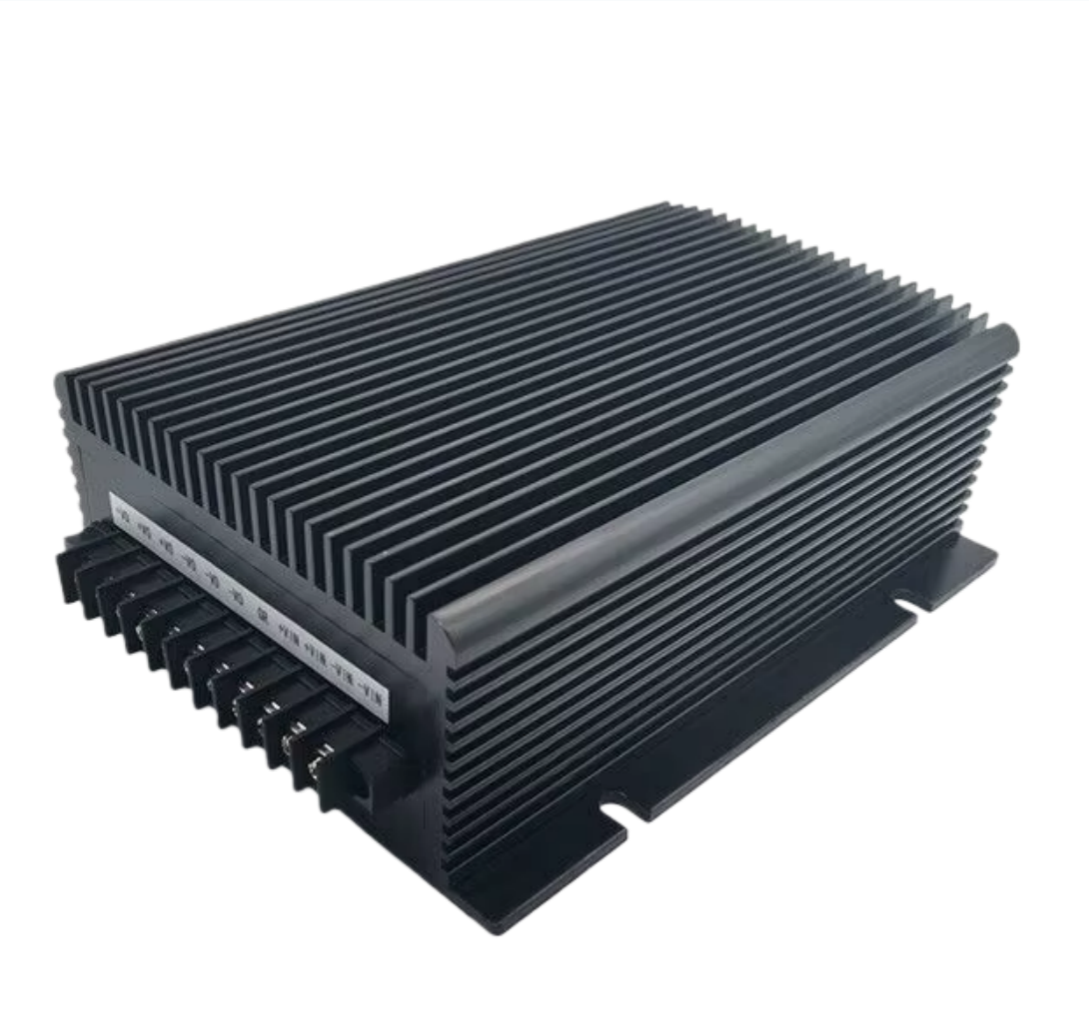

PDB-H3 Series 600-1000W

SKU:
0.0 (0)
0 Sold
$248.00 $0.00
The PDB-H3 Series is a 600–1000W, high-power, high-reliability DC/DC power module. It supports multiple input voltage options from low to high voltage​ (24V/48V/110V/600V), features a 2:1 wide input range​ and up to 92% conversion efficiency, making it suitable for demanding industrial and specialized power environments.
Widely used in battery-powered systems, industrial control, communication base stations, military electronics, photovoltaic energy storage, and intelligent robotics—ideal for medium-to-high power DC conversion scenarios requiring high reliability and power density.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Black
    Black
  • Output Lines:
    Single

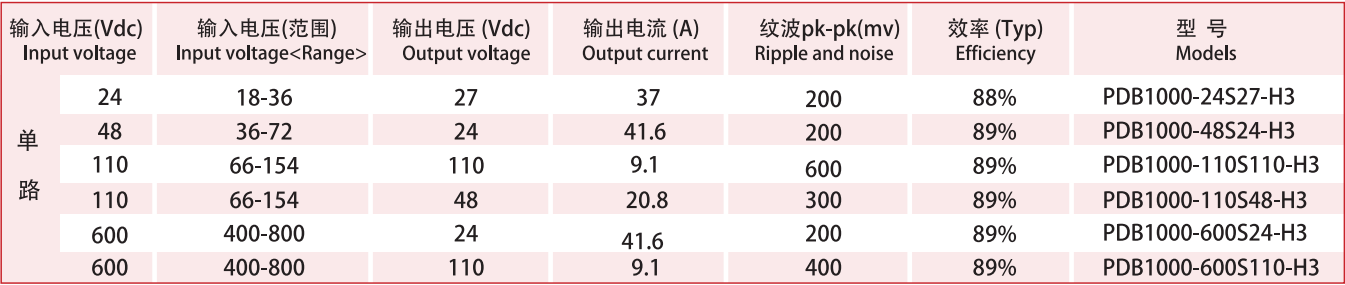

  • Input Voltage:
    18-36
    36-72
    66-154
    400-800
  • Output Power:
    1000W
  • Output Voltage/Output Current:
    27V/37A
    24V/41.6A
    110V/9.1A
    48V/20.8A
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
1/1
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • PDB1000-110S48-H3 | 1000W High Voltage Input Converter | 110V to 48V 20.8A | for Renewable Energy
  • Description

Key attributes

Phase Single Phase Output Frequency 100-200KHZ
Type DC/DC Converter Place of Origin Jiangsu, China
Brand Name Pengtu Output Type Single

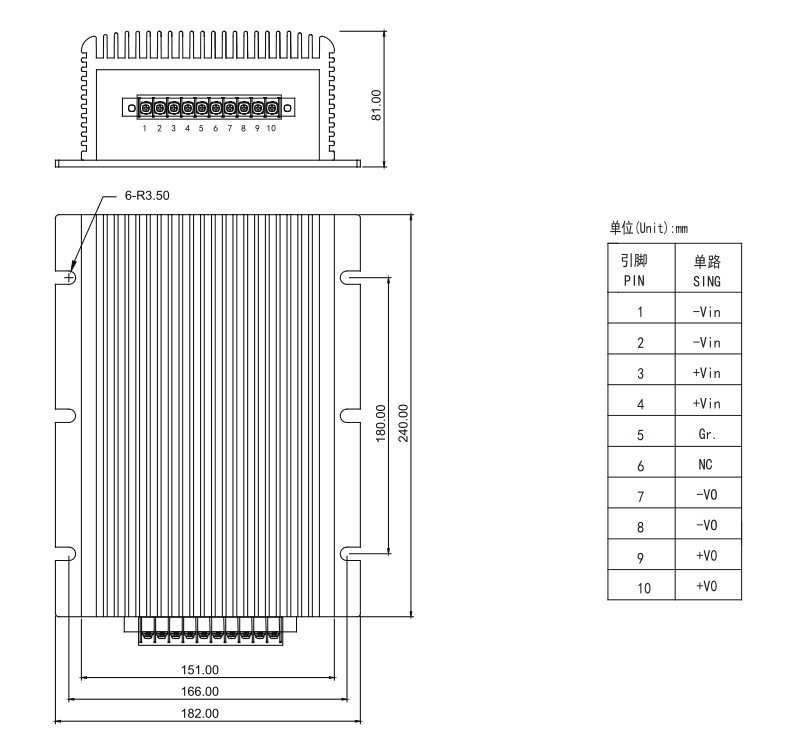

Size 240*182*81mm Weight 400g
Warranty 2 years Customized support Custom LOGO
Certificate CE,RoHs, ect


Packaging and delivery

Selling Units Single item Single package size 24X19X8 cm
Single gross weight 6.000 kg
Highlights at a glance
Handles 110V high voltage DC input for solar or battery storage systems
Efficient 89 percent conversion to standard 48V for industrial equipment
Over 1500VDC isolation and complete protection for safe and reliable operation
About this supplier
About Nanjing Pengtu Power SupplyFounded in 2007 in Nanjing, China, Nanjing Pengtu Power Supply Co., Ltd. is a national high-tech enterprise specializing in module power supplies, photovoltaic power supplies, railway power supplies, and vehicle-mounted power supplies.20+ Years Expertise ~ Professional R&D team with extensive software, hardware, and electrical design experience.Strong Innovation ~ Over 20 national patents, multiple mature and stable product series.Strict Quality Control ~ ISO9001:2015 certified, CE & EMC compliant, advanced testing and production equipment.Wide Applications ~ Rail transit, solar energy, automotive, aerospace, electricity, automation, marine, and new energy industries.Global Reach ~ Trusted by well-known domestic clients and exported to Southeast Asia, Europe, and North America.One-Stop Service ~ From design to after-sales, offering customized solutions with rapid delivery.We are committed to Quality & Service, delivering high performance, reliable power solutions that create more value for our customers worldwide.
Company overview
Competitive advantages
Factory profile
Packaging & shipping specifications
FAQs
Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment
What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply
Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.
What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express DeliveryAccepted Payment Currency:USD,EURAccepted Payment Type: T/T,L/C,PayPal,Western Union,CashLanguage Spoken:English,Chinese,Spanish,Portuguese,Korean
