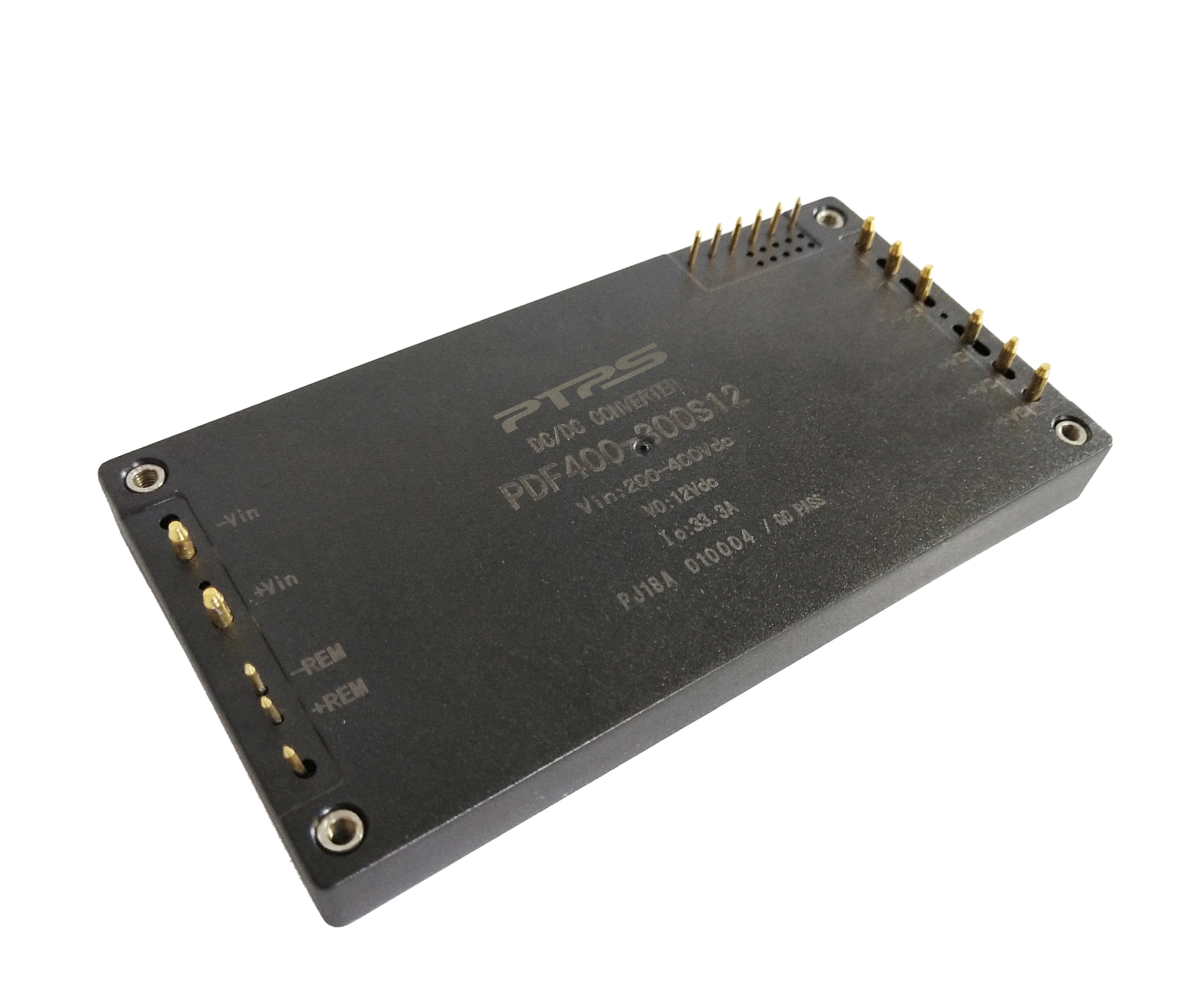

  • PDF Series Full Brick 400W-2000W DC-DC Converter | Wide Input Range, High Voltage Isolation, High Efficiency
  • PDF Series 400-2000W
  • PDF Series Full Brick 400W-2000W DC-DC Converter | Wide Input Range, High Voltage Isolation, High Efficiency
  • PDF Series Full Brick 400W-2000W DC-DC Converter | Wide Input Range, High Voltage Isolation, High Efficiency
  • PDF Series 400-2000W
  • PDF Series Full Brick 400W-2000W DC-DC Converter | Wide Input Range, High Voltage Isolation, High Efficiency
1/1
  • PDF Series Full Brick 400W-2000W DC-DC Converter | Wide Input Range, High Voltage Isolation, High Efficiency
  • PDF Series 400-2000W
  • PDF Series Full Brick 400W-2000W DC-DC Converter | Wide Input Range, High Voltage Isolation, High Efficiency
  • Description

Key attributes

Phase Single Phase Output Voltage 12~48V
Type DC/DC Converter Place of Origin Jiangsu, China
Brand Name Pengtu Output Type Single

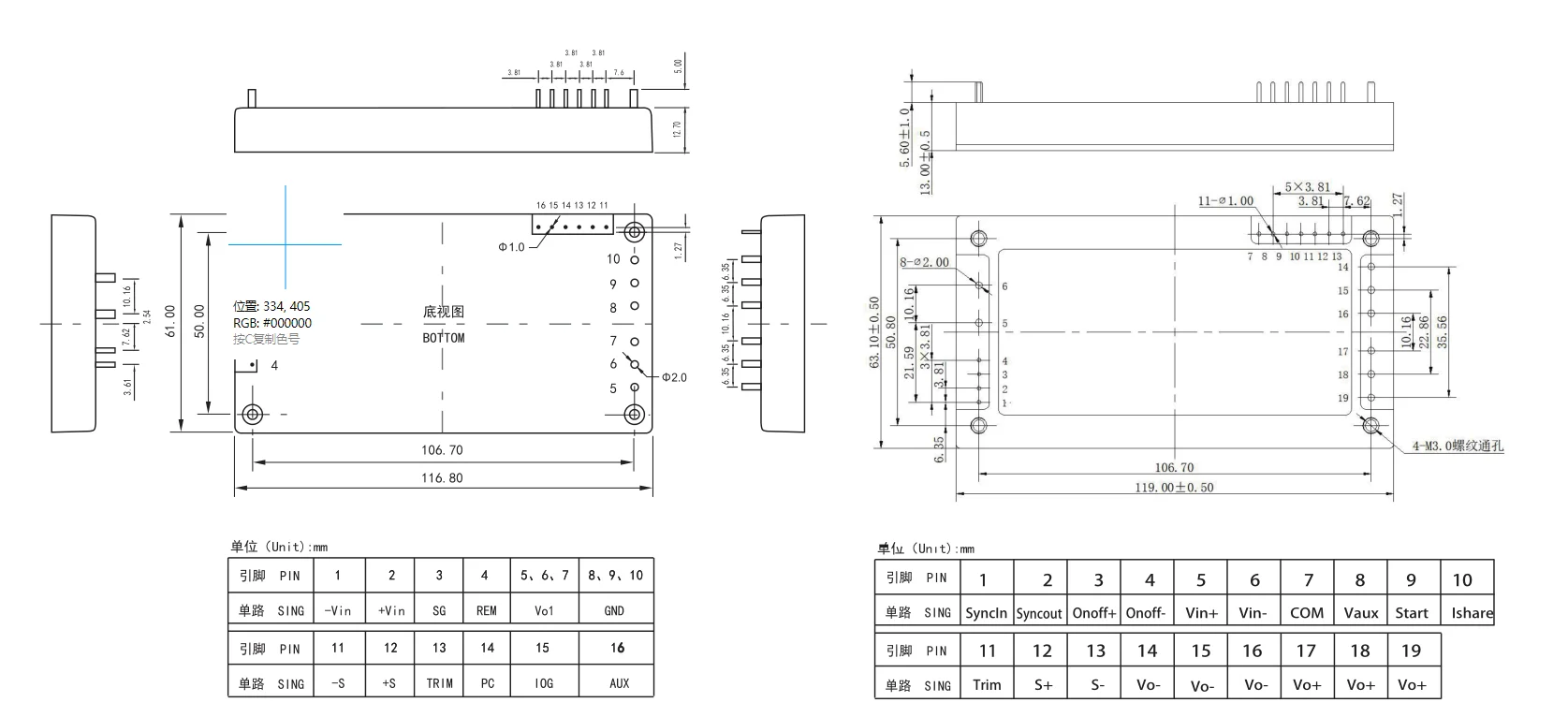

Size 116.8*61*12.7mm Output Current 8-80A
Input Voltage 9-650VDC Power 400-2000W
Certificate CE,RoHs, ect


Packaging and delivery

Selling Units Single item Single package size 25X25X20 cm
Single gross weight 4.000 kg

Features

* Wide range input
* High voltage isolation
* Control and trim functions
* High efficiency
* 100% domestic production of components
Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.

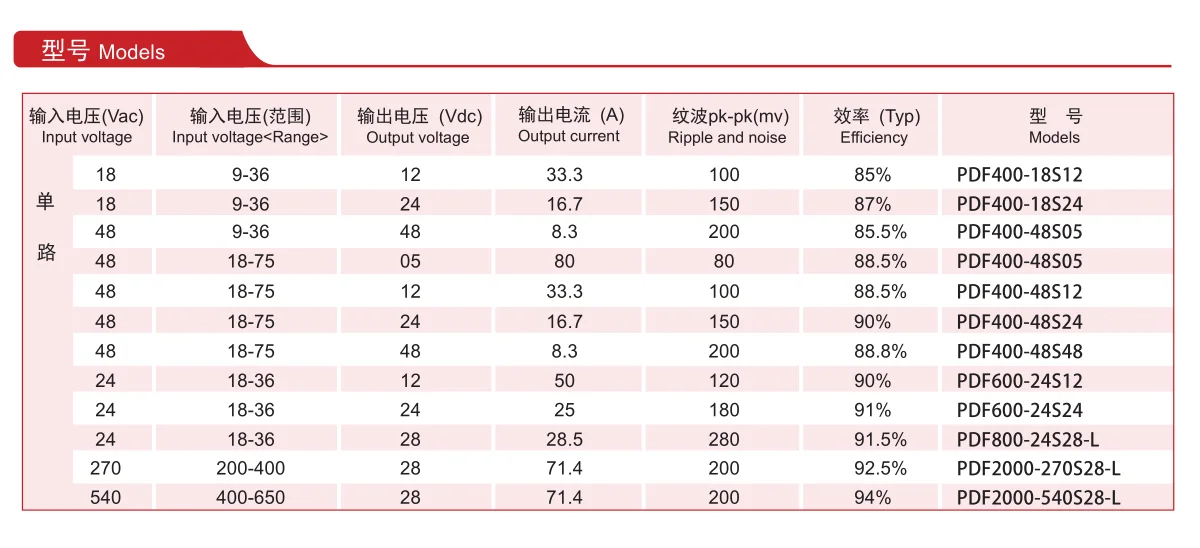

Input Characteristic

Voltage range
18VDC (Normal Rated Value): 9 ~ 36VDC
24VDC (Normal Rated Value): 18 ~ 36VDC
48VDC (Normal Rated Value): 18 ~ 75VDC
270VDC (Normal Rated Value): 200 ~ 400 VDC
540VDC (Normal Rated Value): 400 ~ 650VDC

Output Characteristic

* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Full load) ……….........……… ±0.5%
* Load regulation (20%-100%load) ………........…..........±0.5%

General Characteristic
* Switching frequency …………………… 200-350 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage Input-output:>1500 VDC
Input-case:>1050 VDC
Output-case:>500 VDC

* Environmental Characteristic
* Substrate Working Temperature ………Industry: -40-+100℃
* Storage temperature …………………… Industry: -45~ +105℃

REM Features
* Positive logic: The module is enabled when the control signal is at a high level or left floating (not connected).
* Remote Sense (Output Voltage Compensation): max: 105% Vo
Protection features
Input undervoltage protection
Output overcurrent protection
Input overvoltage protection
Output short circuit protection
Over temperature protection
