Home > Solar PV Power Supply > PDD Series

1/1

PDD Series 15-30W

Name: PDD Series 15-30W
Brand: MY SHOP
SKU: 1601356750372
Price: 78 USD
Availability: InStock

0.0 (0)

0 Sold

$78.00

This series of small size, long life and high reliability of the DC-DC din rail power supply design according to UL1741,
EN/IEC62109 standard. It can be widely used in photovoltaic power generation, energy storage system, industrial control and other industrial and civil areas.

Item	Input voltage range	Output voltage	Output current
PDD15-700S05	100-1200VDC	5VDC	3A
PDD15-700S12	100-1200VDC	12VDC	1.25A
PDD15-700S24	100-1200VDC	24VDC	0.63A
PDD20-900S05	300-1500VDC	5VDC	4A
PDD20-900S12	300-1500VDC	12VDC	1.66A
PDD20-900S24	300-1500VDC	24VDC	0.83A
PDD30-24S24	18-36VDC	24VDC	12.5A
PDD30-110S24	66-154VDC	24VDC	12.5A

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Input voltage:

100-1200V

300-1500V

18-36V

66-154V
Output voltage:

5V

12V

24V
Output current:

3A

1.25A

0.63A

4A

1.66A

0.83A

12.5A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	100-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDD Series
Size	96.15429.5mm	Input Voltage	100-1200VDC
Warranty	2 years	Output Current	2-15A
Certificate	CE,RoHs, ect	Output Voltage	5-48V

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12cm
Single gross weight	3.000 kg

15-30W DC DC Din rail power supply
This series of small size, long life and high reliability of the DC-DC din rail power supply design according to UL1741,
EN/IEC62109 standard. It can be widely used in photovoltaic power generation, energy storage system, industrial control and other industrial and civil areas.

Features:
* Wide voltage input: 18-36/66-154/100-1200VDC/300-1500VDC for optional
* Isolated Input and output
* Input undervoltage protection, Input reverse protection
* Output overcurrent protection, Output short-circuit protection

Output Characteristic：

* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
* Output Current Limited ................................. 120% （Typ）
* Output current …………………………………2-15A for optional
* Output voltage …………………………………5-48V
* Power ……………………………………………10-40W

General Characteristic：
* Switching frequency …………………… 100-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage * Input-output:>1500 VAC/MIN (Leakage current ＜5mA)
* Input-case:>1500 VAC/MIN (Leakage current ＜5mA)
* Output-case:>500 VDC/MIN
* Main-Viice: >500 VDC/MIN

Environmental Characteristic：

* Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃

Military: -55-+105℃

Models

Item	Input voltage range	Output voltage	Output current
PDD15-700S05	100-1200VDC	5VDC	3A
PDD15-700S12	100-1200VDC	12VDC	1.25A
PDD15-700S24	100-1200VDC	24VDC	0.63A
PDD20-900S05	300-1500VDC	5VDC	4A
PDD20-900S12	300-1500VDC	12VDC	1.66A
PDD20-900S24	300-1500VDC	24VDC	0.83A

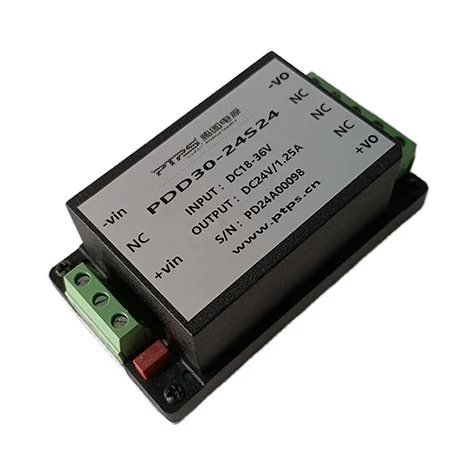

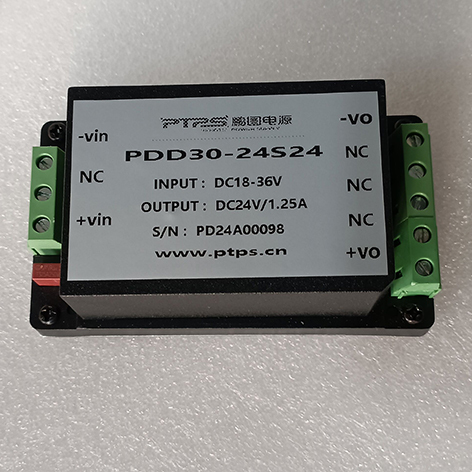

PDD30-24S24	18-36VDC	24VDC	12.5A
PDD30-110S24	66-154VDC	24VDC	12.5A
