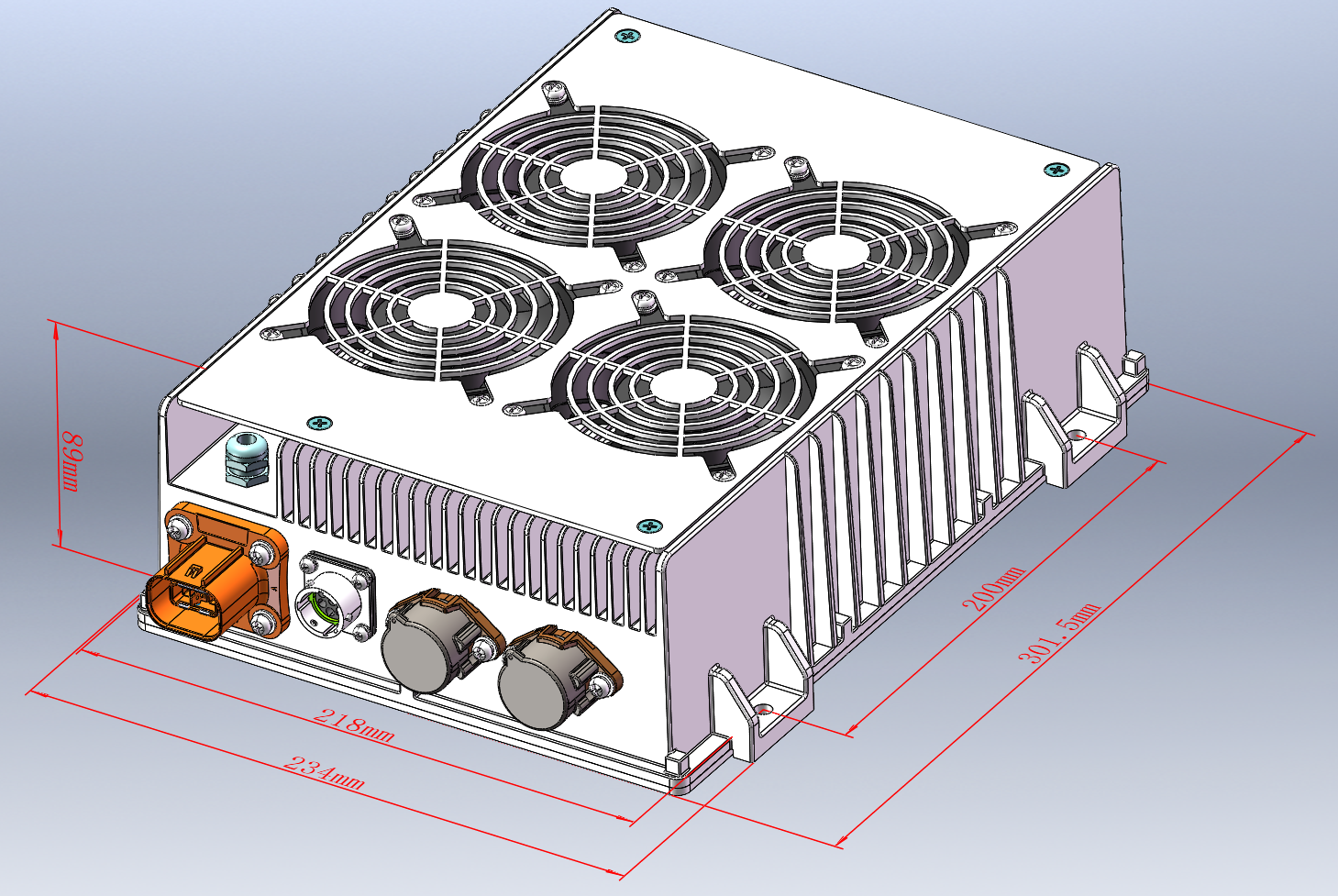

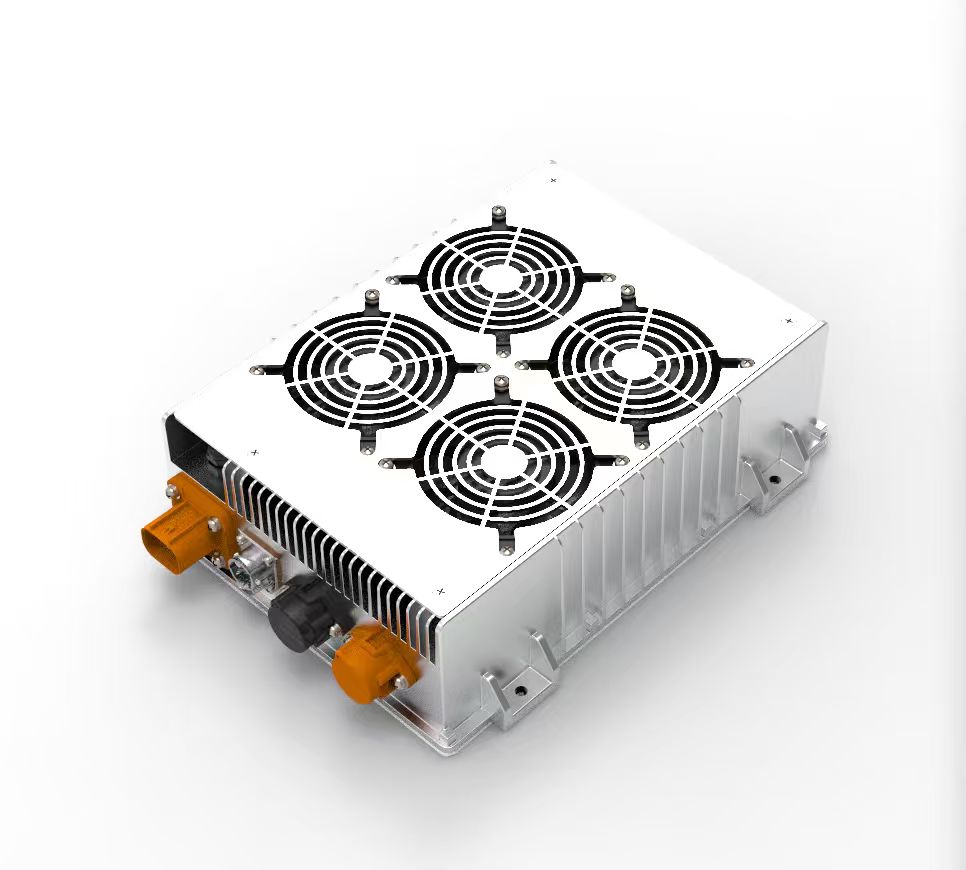

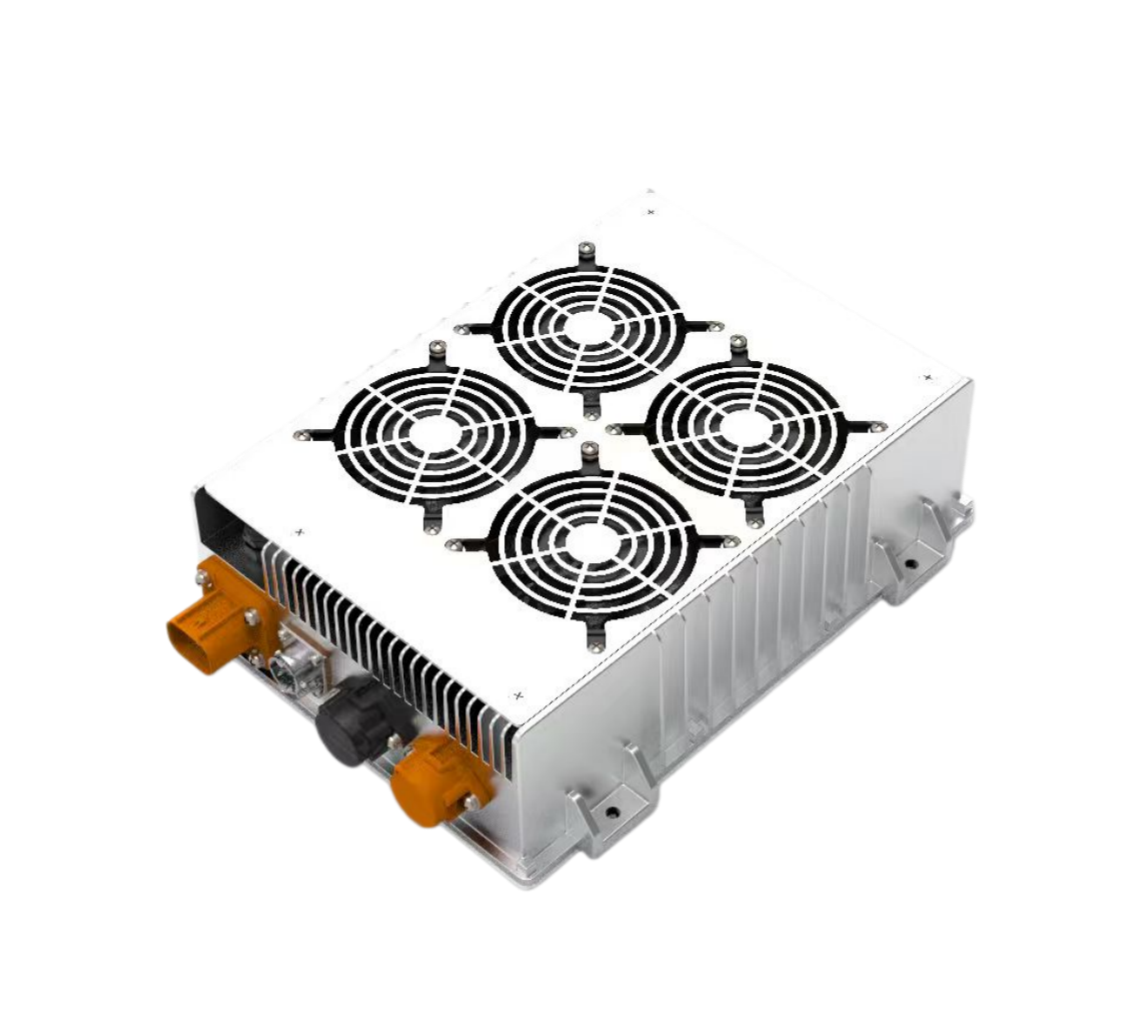

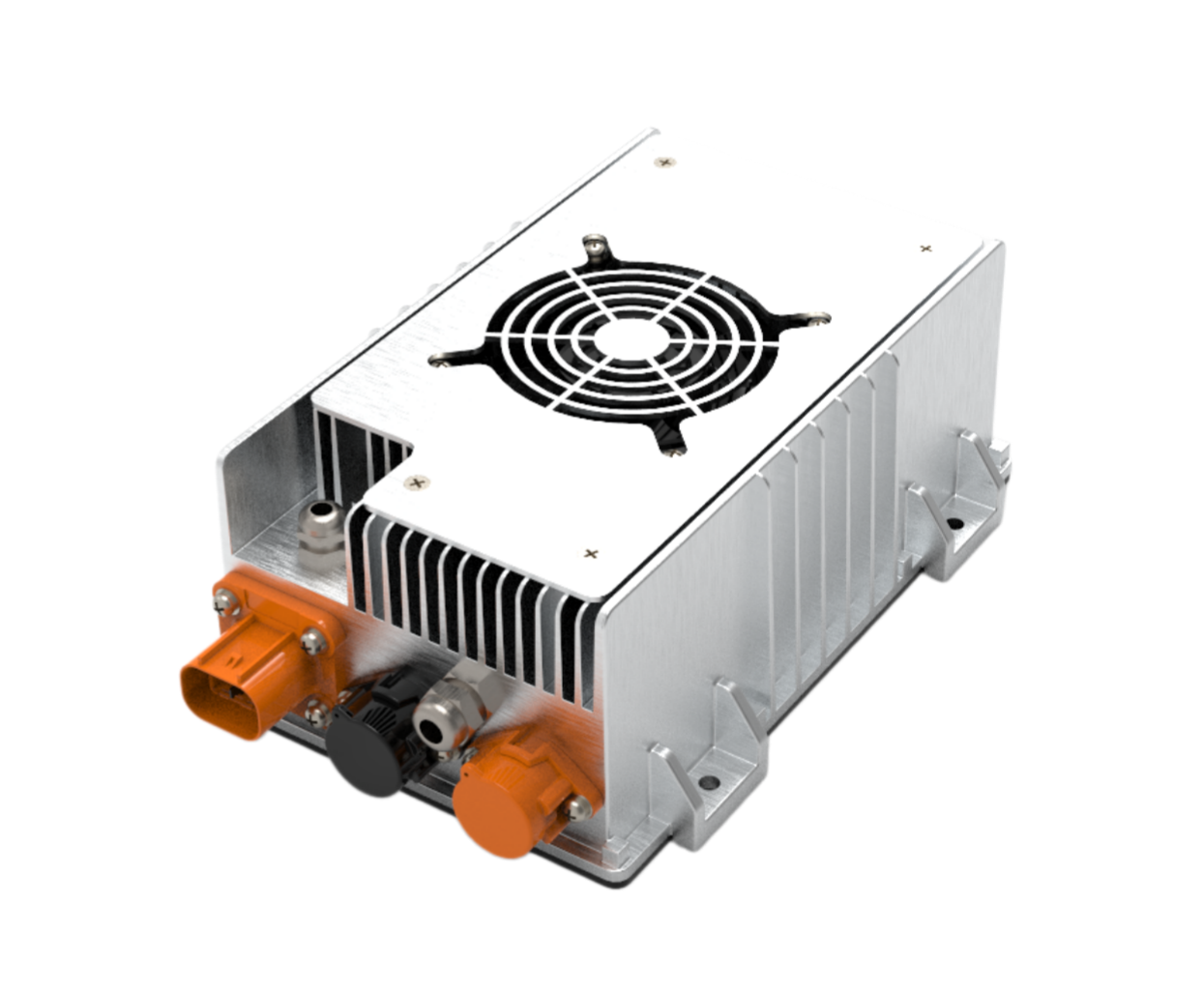

PDC-MF Series 3000-6000W

Rated input voltage

580VDC

Input voltage range

400~850VDC

Input current

16A

Input voltage reporting accuracy

±2V

Rated output power

6.0KW

Rated output voltage

58±0.2vdc

Output voltage range

55-60vdc （adjusted by software）

 Output current range

0.5-103.5A

Voltage regulation accuracy

1%

Output response time

300mS (The time for the output voltage to rise from 10% to 90%, and it is required that the output waveform
rise monotonically.)

Capacitive load

1000-5000uF

Output control method

Support software on/off

Parallel operation mode

Support

Environmental conditions

Operating ambient temperature

-40℃～+60℃

Storage temperature

-40～105℃

Humidity

5%~95% no condensation

Cooling function

 Fan-cooling

Communication features

CAN bus support

Charging function

Receiving the charging command can charge normally; The no-command
charger is in standby

Safety & Reliability

Input-case: 2000vdc/1min. It should be capable of withstanding 2000V DC
voltage, with a leakage current of less than 3mA, 2000V DC voltage, and a leakage current of less than 1mA. There should be no breakdown or arc flying phenomenon, and the single machine should be marked with DC as per the national standard.

Input-output: 3000vdc/1min It should be capable of withstanding a 3000V DC voltage with a leakage current of less than 3mA, and a 2000V DC voltage with a leakage current of less than 1mA. There should be no breakdown or arc flying phenomenon, and the single machine should be marked with DC as per the national standard. Output-case: 850vdc/1min It should be capable of withstanding a DC voltage of 850V, with a leakage current of less than 1.OmA, and there should be no breakdown or arc flying phenomenon. Insulation resistance

Input- case.>50Μ Ω The insulation resistance between the live circuit and ground (enclosure) in a DC/DC converter shall not be less than 500Ω/V and greater than 50M Ω when the ambient temperature is 23℃±2℃ and the relative humidity is 80% to 90%.
