Home > Solar PV Power Supply > PDB-TY Series

1/1

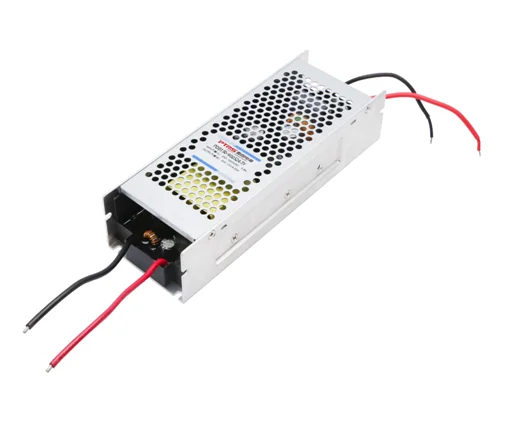

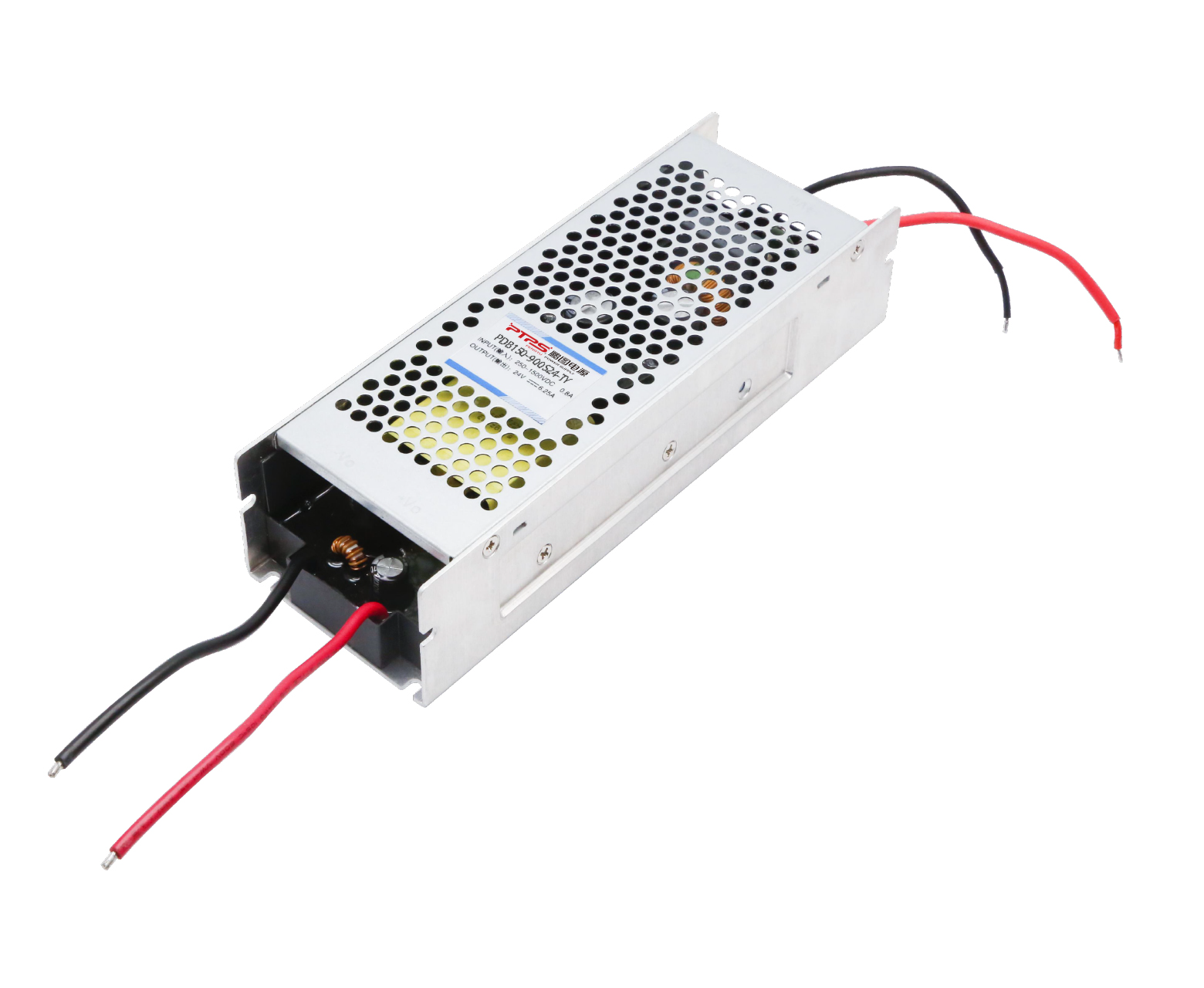

PDB-TY Series 150W

Name: PDB-TY Series 150W
Brand: MY SHOP
SKU: 1601577924934
Price: 28 USD
Availability: InStock

0.0 (0)

0 Sold

$28.00

The 150W Ultra-Wide High Voltage Input DC/DC Module Power Supply (PDB-TY Series) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 250~1500VDC (momentary up to 1700VDC for 10 seconds) and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

Item	Input voltage range	Output voltage	Output current	Size
PDB150-900S24-TY	250-1500VDC	24V	6250mA	2017042mm
PDB150-900S28-TY		28V	5360mA
PDB150-900S32-TY		32V	4690mA

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Lines:

Single
Input voltage:

250-1500
Output voltage:

24V

28V

32V
Output current:

6.25A

5.36A

4.69A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-TY Series
Size	2017042mm	Input Voltage	200-1500VDC
Warranty	2 years	Output Current	4~7A
Certificate	CE,RoHs, ect	Output Voltage	24V/28V/32V

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12cm
Single gross weight	3.000 kg

The 150W Ultra-Wide High Voltage Input DC/DC Module Power Supply (PDB-TY Series) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 250~1500VDC (momentary up to 1700VDC for 10 seconds) and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

Key Features:
* Ultra-wide input voltage: 250~1500VDC
* Input-output isolation
* Input under-voltage and reverse connection protection
* Output overcurrent, short-circuit, and overvoltage protection
* High efficiency, long life, high reliability
* Operating temperature: -40℃ ~ +85℃
* 100% full-load aging tested

Input Characteristic

250~1500VDC

Output Characteristic

Voltage set-point accuracy ……………… ±2%
Output voltage range………………………±10%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% (Typ)
Output current …………………………………2-20A for optional
Output voltage …………………………………5-48V
Power ……………………………………………100W

General Characteristic

Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃

Military: -55-+105℃

Item	Input voltage range	Output voltage	Output current	Size
PDB150-900S24-TY	250-1500VDC	24V	6250mA	2017042mm
PDB150-900S28-TY		28V	5360mA
PDB150-900S32-TY		32V	4690mA
