Home > Module Power Supply > Isolated DC DC Converter > PDB-N1 Series

1/1

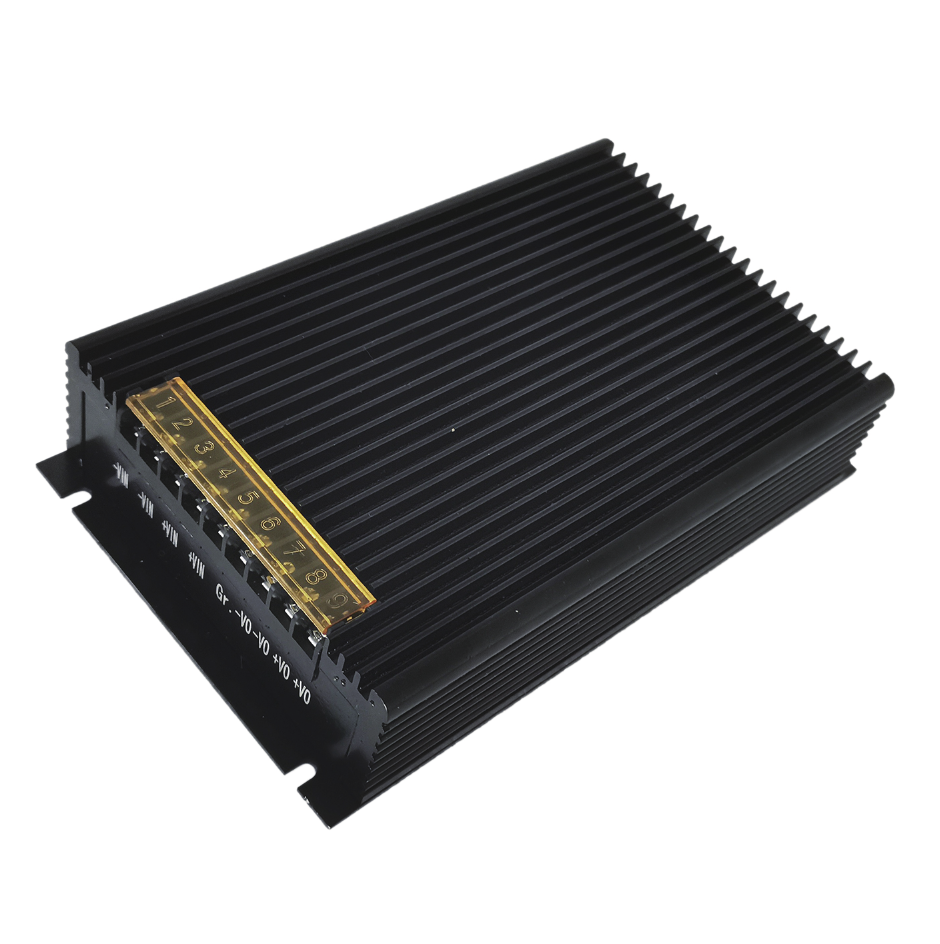

PDB-N1 Series 170-350W

Name: PDB-N1 Series 170-350W
Brand: MY SHOP
SKU: 1601298641286
Price: 80 USD
Availability: InStock

0.0 (0)

0 Sold

$80.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Output Lines:

Single

Dual
Output Power:

350 W

300W

170W

200W
Input Voltage:

18-36V

36-72V

66-154V
Output Voltage:

24V

12V

5&12V

5&24V

12&24V
Output Current:

14.5A

25A

10&10A

10&5A

8&4A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Output Type	Single/Dual
Size	18011039mm	Weight	300g
Warranty	2 years	Customized support	Custom LOGO
Certificate	CE,RoHs, ect

Packaging and delivery

Selling Units	Single item	Single package size	25X20X10 cm
Single gross weight	3.000 kg

Products Description

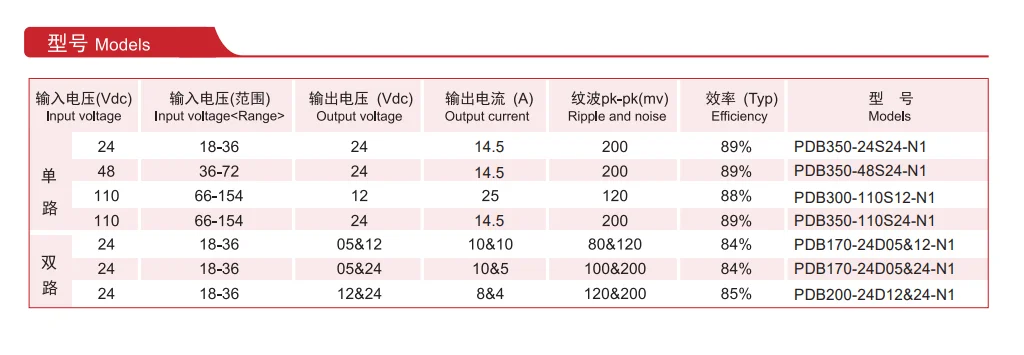

Model Number	PDB-N1 Series
Output Power	200~350W
Output Type	Single or Dual
Input Voltage	12~110V
Output Voltage	5~48V
Output Frequency	160~200KHz
Output Current	5~40A
Product Name	Module power supply
Warranty	2 years
Color	black

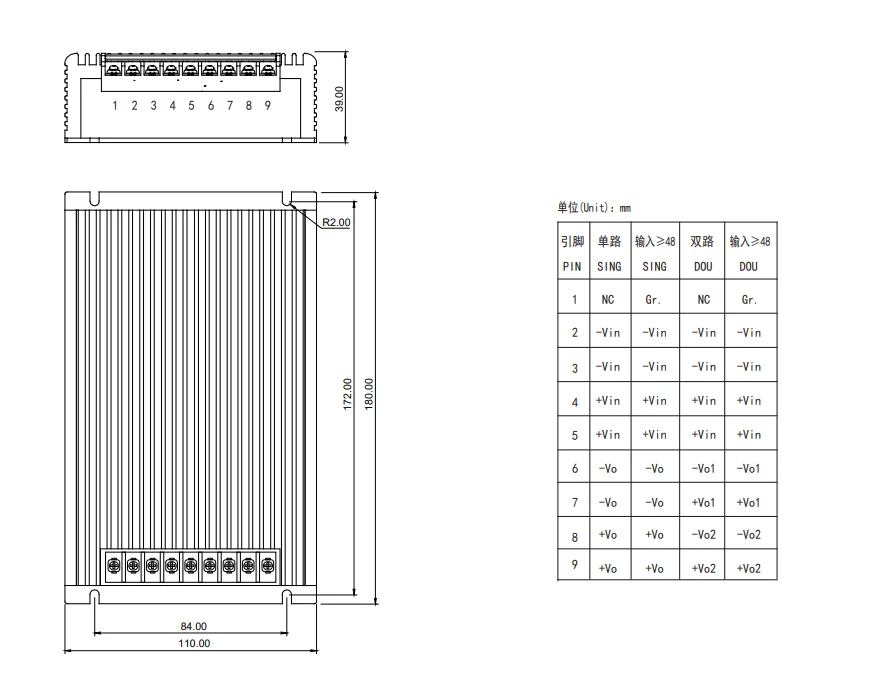

Dimension	18011039mm

Product Specifications

Input Characteristic：
Inputvoltage range…………………… 9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
70 ~ 140 VDC Rated value: 110VDC
9 ~ 36 VDC Rated value: 18VDC
Reverse Protection：
Fuse Outside

Output Characteristic：
Voltage set-point accuracy ………………±1%
Line regulation(main) …………...........…±0.2%
Load regulation(main) …………….......…±0.4%
Temperature coefficient …………….......±0.01%/°C
Output current limiting …………........… 120%(Typ)
Dynamic response ……………………… 400μs
Output current …………………………… 2-10A
Output voltage …………………………… 5-48V
Power …………………………………… 75-120W

General Characteristic：
Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
MTBF ………………………………… >500000H
Isolation voltage：
Input-output:>1500 VDC/1min(leakage current<5mA)
Input-case: >1050 VDC/1min(leakage current<5mA)
Output-case: >500 VDC/1min
Environmental Characteristic：
Case temperature …………………… Industry: -25-+85°C; MⅠ: -40~ +85°C; M Ⅱ: -55~ +85°C
Storage temperature …………………… Industry: -45~ +105°C; M: -55~ +105°C

Product Features

Product Application

Company Profile

00:14

Why Choose Us

30pcs 24vdc to 24vdc 3a 75W power converter/ carton (it's ok according to your requirement)

FAQ

1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
