Home > PDB-HF Series

1/1

PDB-HF Series 1500-3000W

Name: PDB-HF Series 1500-3000W
Brand: MY SHOP
SKU: 1601457896691
Price: 245 USD
Availability: InStock

0.0 (0)

0 Sold

$245.00

This power supply is a vehicle-mounted DC/DC power supply, supporting a voltage input of 87-108Vdc, an output voltage platform of 14V, and a rated total output power of 2.4KW. This power supply is equipped with protection functions such as input reverse connection prevention, output short circuit protection, output overcurrent protection, output overvoltage protection and over-temperature protection, and supports CAN communication.

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Power:

1500W

2000W
Input Voltage:

20-260V

280-1100V
Output Voltage:

24V

48V

58V

72V

80V

120V

200V

300V

400V
Output Current:

60A

30A

83.3A

62.5A

51.7A

41.6A

37.5A

25A

15A

10A

7.5A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-HF Series
Size	240226100mm	Input Voltage	87-108VDC
Warranty	2 years	Output Current	0.5-172A
Certificate	CE,RoHs, ect	Output Voltage	10-15V

Packaging and delivery

Selling Units	Single item	Single package size	37X24X13 cm
Single gross weight	8.000 kg

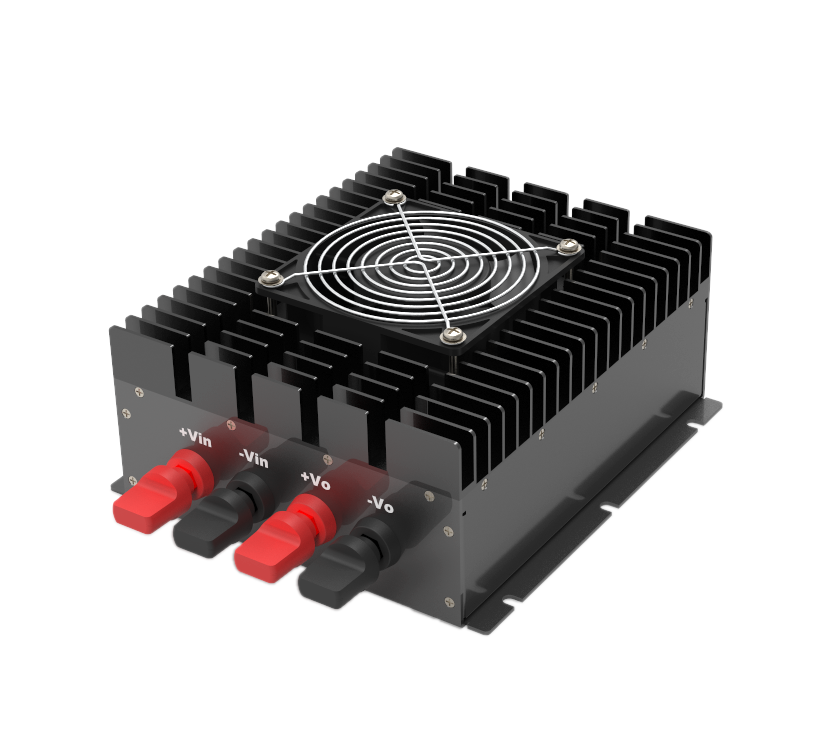

Product Display

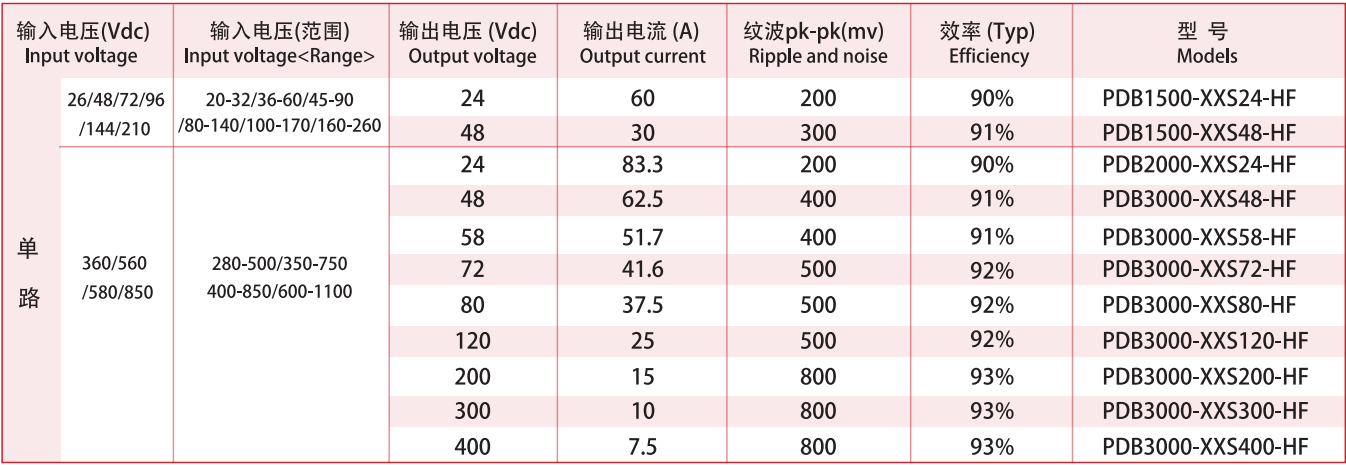

Product introduction

Electrical characteristics

PDB2400-96S14-HF
Input characteristics
Rated input voltage	96VDC
Input voltage range	87-108VDC
Input current	28A
Input voltage reporting accuracy	±2V
Output characteristics
Rated output power	2.4KW
Rated output voltage	14±0.2vdc
Output voltage range	10-15vdc （adjusted by software）
Output current range	0.5-172A
Voltage regulation accuracy	1%
Output response time	300mS (The time for the output voltage to rise from 10% to 90%, and it is required that the output waveform rise monotonically.)
Capacitive load	1000-5000uF
Output control method	Support software on/off
Parallel operation mode	Support
Environmental conditions
Operating ambient temperature	-40℃～+60℃
Storage temperature	-40～105℃
Humidity	5%~95% no condensation
Cooling function	Fan-cooling
Communication features	CAN bus support
Charging function	Receiving the charging command can charge normally; The no-command charger is in standby
Safety & Reliability
Electrical resistance strength	Input-case: 2000vdc/1min. It should be capable of withstanding 2000V DC voltage, with a leakage current of less than 3mA, 2000V DC voltage, and a leakage current of less than 1mA. There should be no breakdown or arc flying phenomenon, and the single machine should be marked with DC as per the national standard.
		Input-output: 3000vdc/1min It should be capable of withstanding a 3000V DC voltage with a leakage current of less than 3mA, and a 2000V DC voltage with a leakage current of less than 1mA. There should be no breakdown or arc flying phenomenon, and the single machine should be marked with DC as per the national standard. Output-case: 850vdc/1min It should be capable of withstanding a DC voltage of 850V, with a leakage current of less than 1.OmA, and there should be no breakdown or arc flying phenomenon. Insulation resistance
		Input- case.>50Μ Ω The insulation resistance between the live circuit and ground (enclosure) in a DC/DC converter shall not be less than 500Ω/V and greater than 50M Ω when the ambient temperature is 23℃±2℃ and the relative humidity is 80% to 90%.

CAN communication

No.	ITEM	Specifications	Note
1	Crystal oscillator tolerance	± 0.15%	Within the operating temperature range.
2	Communication rate	/	The tolerance is ±0.375Kbit/s
3	Sampling point	The sampling point should be set at a location close to but no later than 7/8 of the designated time.
4	Transceiver	The largest transceiver. The "loop delay" (from sending to receiving) is.300-ns.	The CAN transceiver shall comply with the ISO· 11898-2 standard

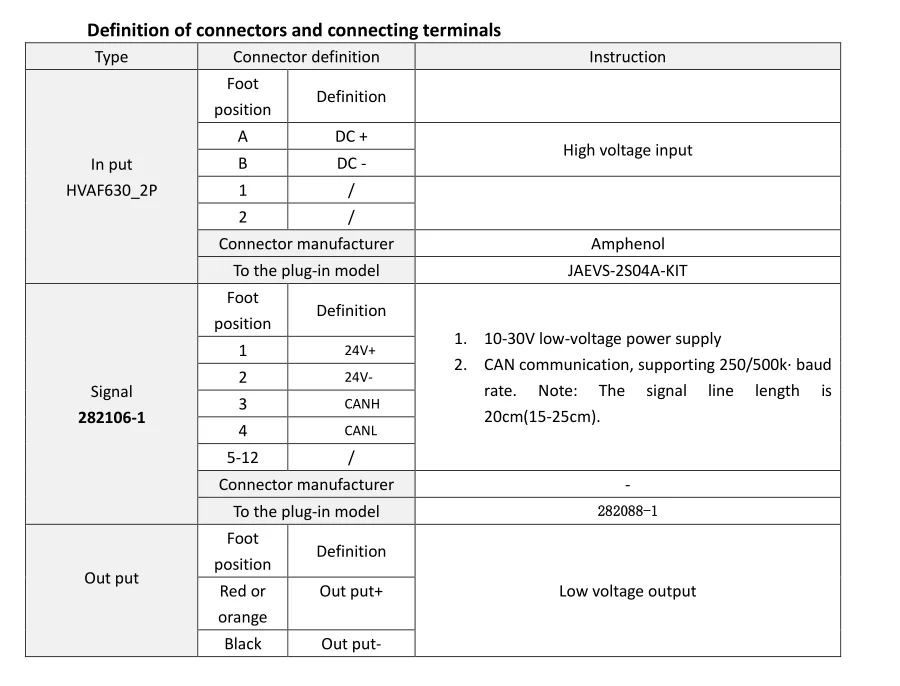

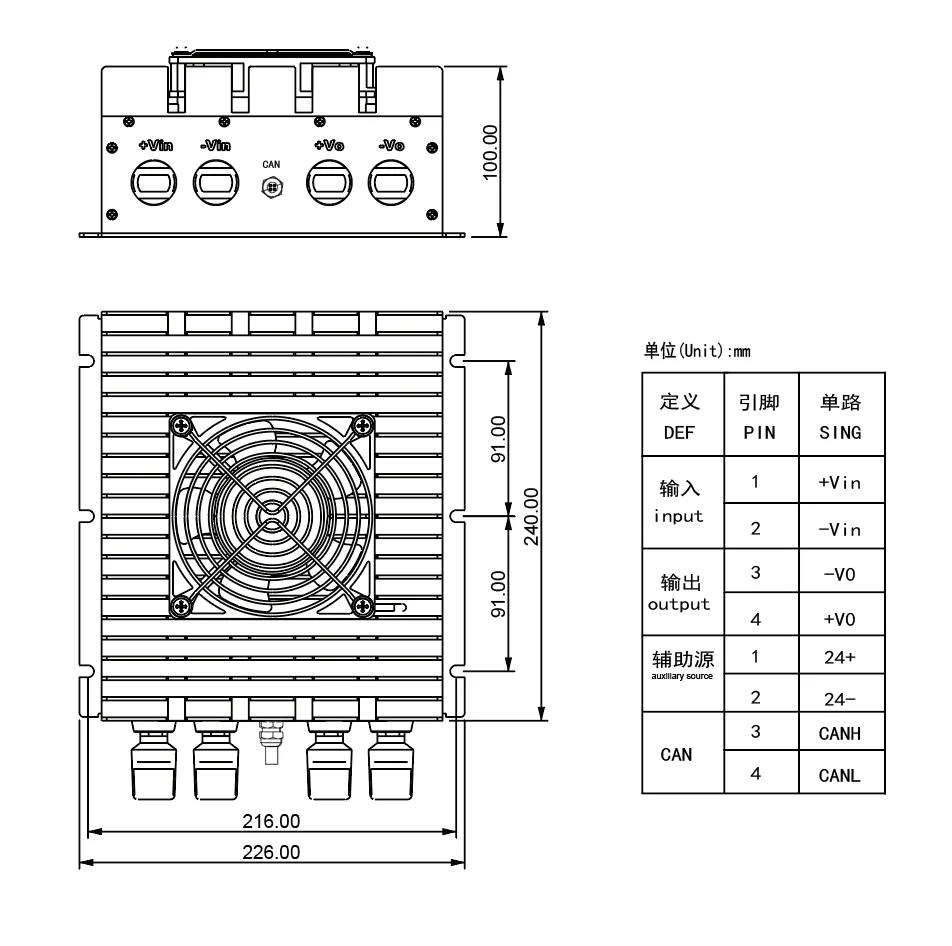

Size drawing
