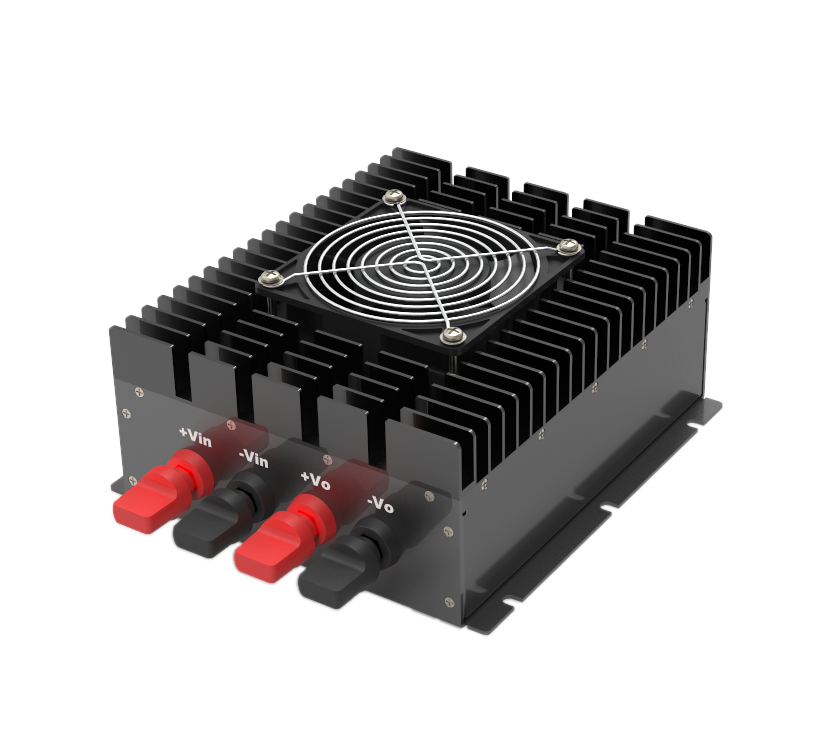

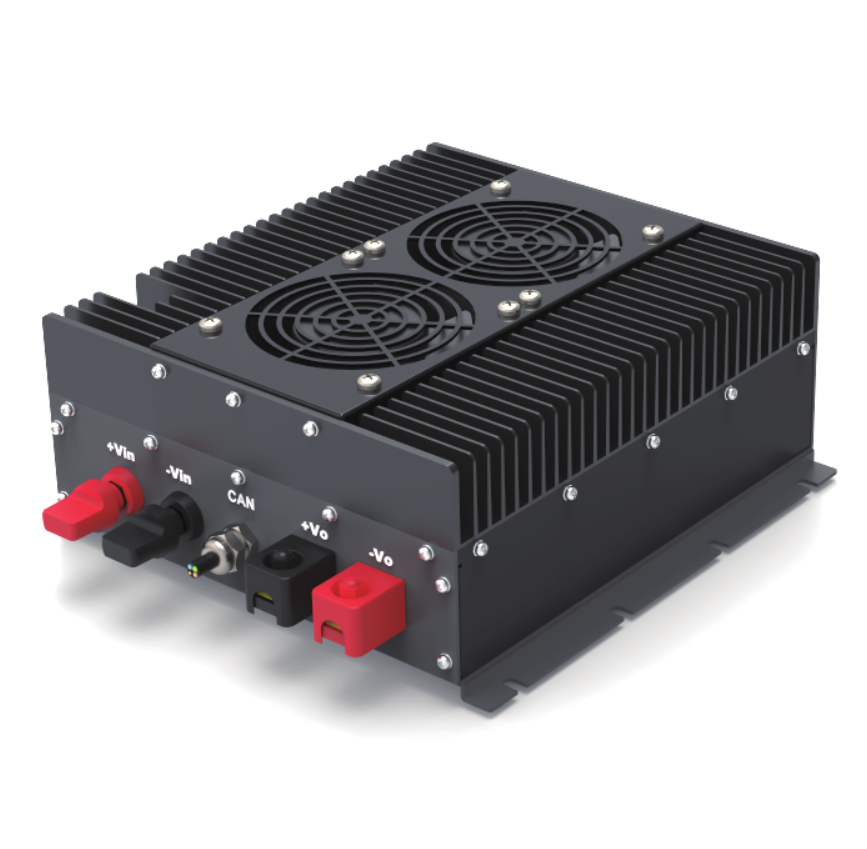

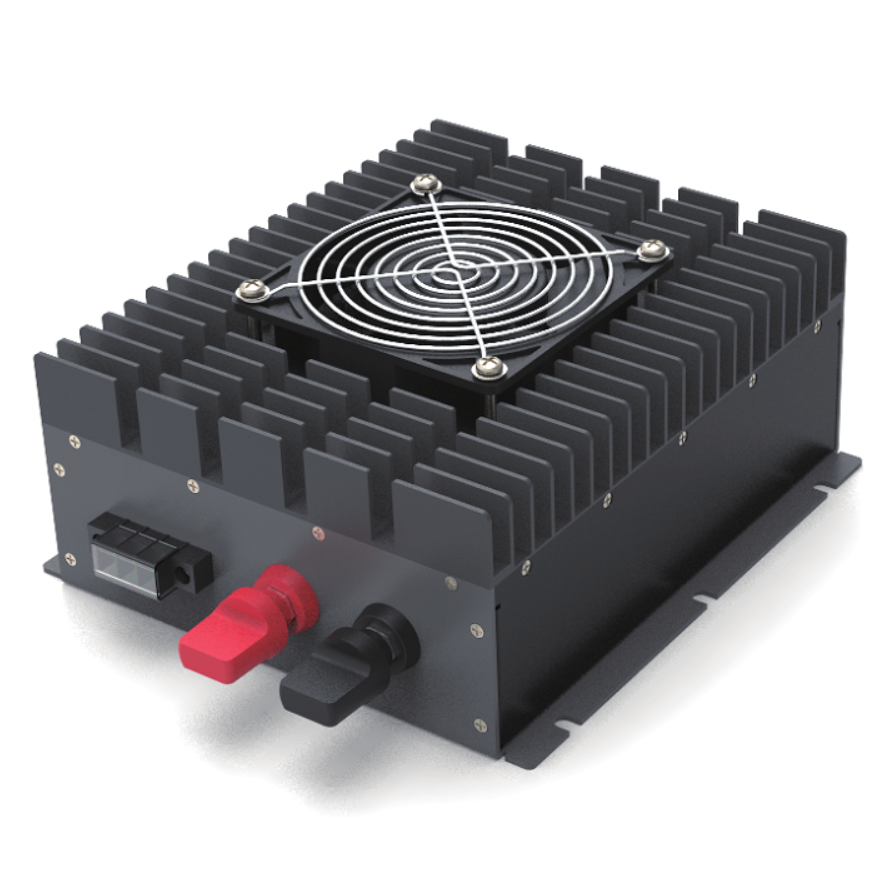

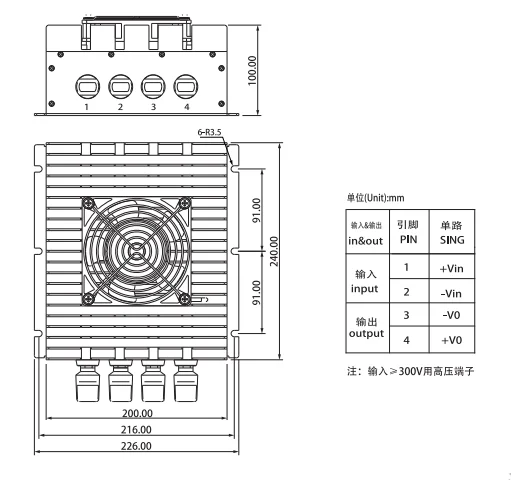

PDB-HF Series 1500-3000W

PDB1500-XXS48-K

Input characteristics

Rated input voltage

360/560/580/850VDC

Input voltage range

20-32VDC

Input current

7.5A

Input voltage reporting accuracy

±2V

Output characteristics

Rated output power

3KW

Rated output voltage

400±0.2vdc

Output current range

0.5-55A

Voltage regulation accuracy

1%

Output response time

300mS (The time for the output voltage to rise from 10% to 90%, and it is required that the output waveform
rise monotonically.)

Capacitive load

1000-5000uF

Output control method

Support software on/off

Parallel operation mode

Support

Environmental conditions

Operating ambient temperature

-40℃～+60℃

Storage temperature

-40～105℃

Humidity

5%~95% no condensation

Cooling function

Fan-cooling

Communication features

CAN bus support

Charging function

Receiving the charging command can charge normally; The no-command
charger is in standby

Safety & Reliability

Electrical resistance strength

Input-case: 2000vdc/1min. It should be capable of withstanding 2000V DC
voltage, with a leakage current of less than 3mA, 2000V DC voltage, and a leakage current of less than 1mA. There should be no
breakdown or arc flying phenomenon, and the single machine should be marked with DC as per the national standard.

Input-output: 3000vdc/1min It should be capable of withstanding a 3000V DC voltage with a leakage current of less than 3mA, and a
2000V DC voltage with a leakage current of less than 1mA. There should be no breakdown or arc flying phenomenon, and the single
machine should be marked with DC as per the national standard. Output-case: 850vdc/1min It should be capable of withstanding a DC
voltage of 850V, with a leakage current of less than 1.OmA, and there should be no breakdown or arc flying phenomenon. Insulation
resistance

Input- case.>50Μ Ω The insulation resistance between the live circuit and ground (enclosure) in a DC/DC converter shall not be
less than 500Ω/V and greater than 50M Ω when the ambient temperature is 23℃±2℃ and the relative humidity is 80% to 90%.

No.

ITEM

Specifications

Note

1

Crystal oscillator tolerance

± 0.15%

Within the operating temperature range.

2

Communication rate

/

The tolerance is ±0.375Kbit/s

3

Sampling point

The sampling point should be set at a location close to but no later than 7/8 of the designated time.

/

4

Transceiver

The largest transceiver. The "loop delay" (from sending to receiving) is.300-ns.

The CAN transceiver shall comply with
the ISO· 11898-2 standard
