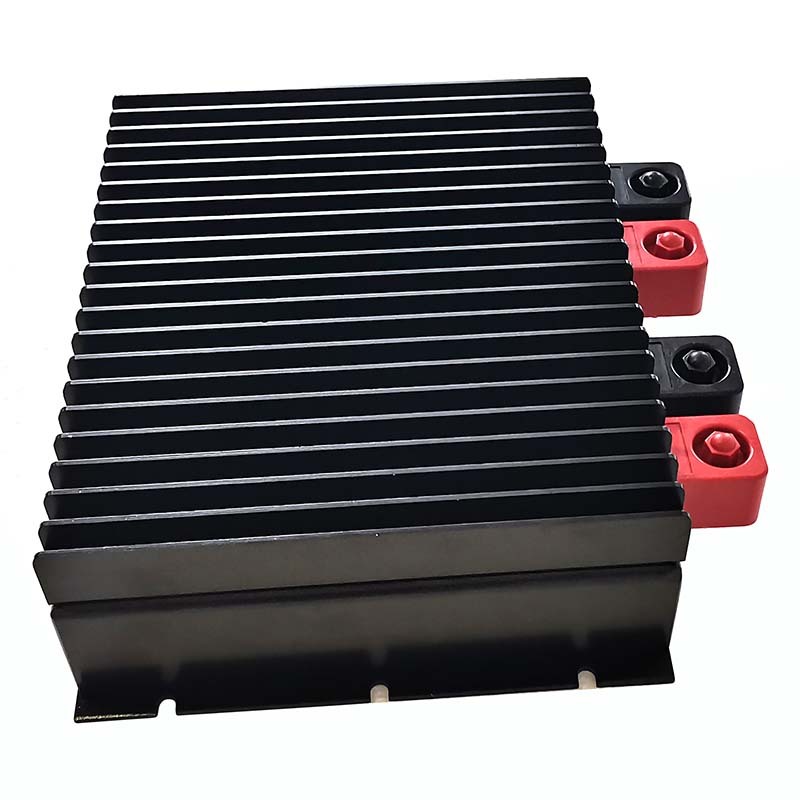

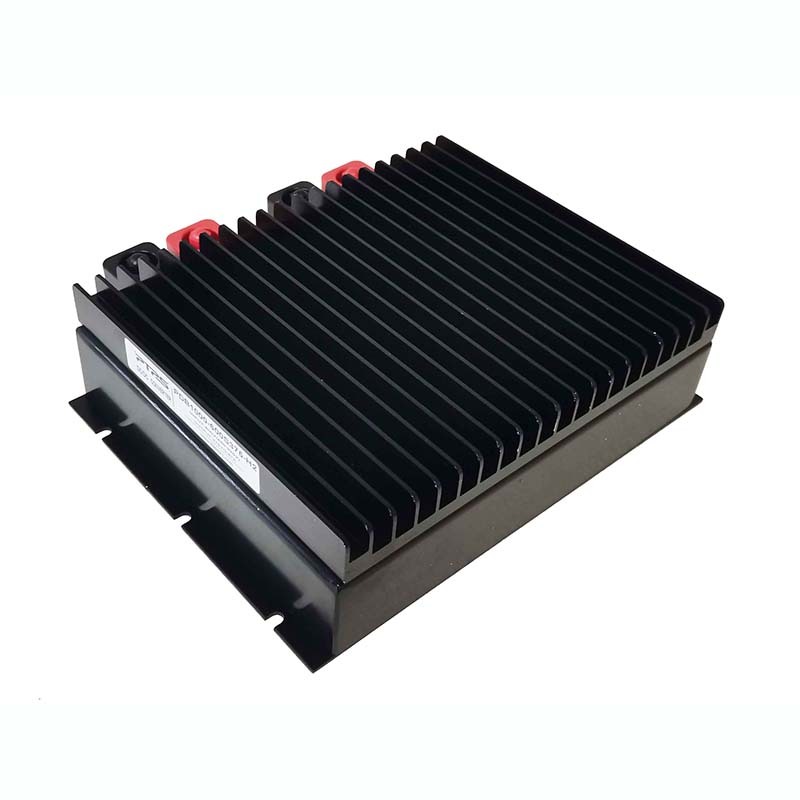

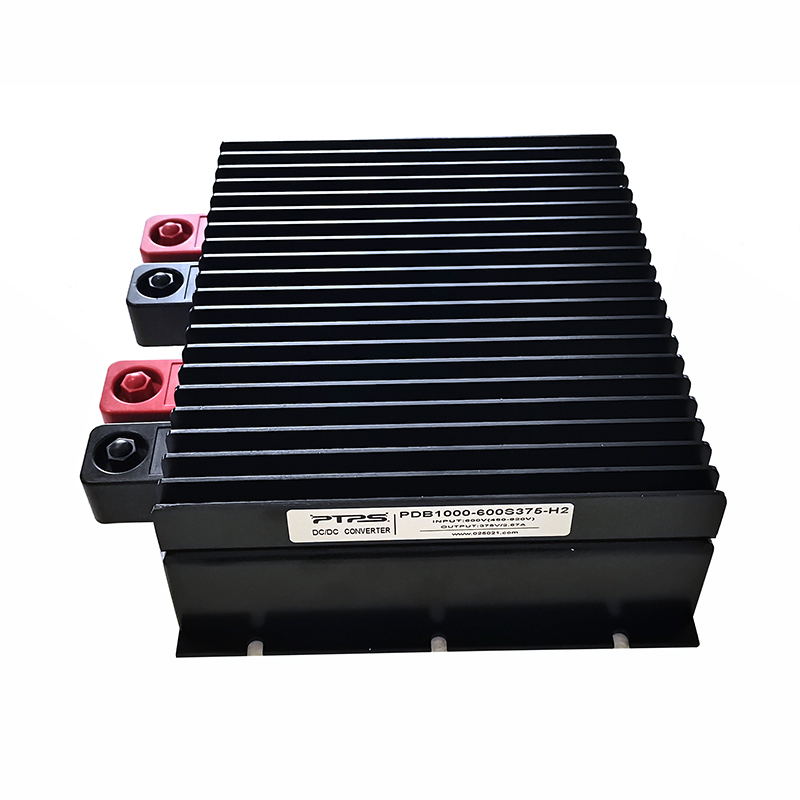

  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • PDB-H Series
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
1/1
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • PDB-H Series
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
Share:

PDB-H Series

SKU:
0.0 (0)
0 Sold
$210.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Output Power:
    730W
    1000W
  • Input Voltage:
    13-18V
    18-36V
  • Output Voltage:
    29.2V
    28V
  • Output current:
    25A
    35.71A
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • PDB-H Series
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • PDB-H Series
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
1/1
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • PDB-H Series
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • High Quality Constant Voltage Constant Current Dc Dc Converter Input 13-18V Output 29.2V 45A 730W
  • Description

Key attributes

Phase Single Phase Output Frequency 100-200KHZ
Type DC/DC Converter Place of Origin Jiangsu, China
Brand Name Pengtu Output Type Single/Dual

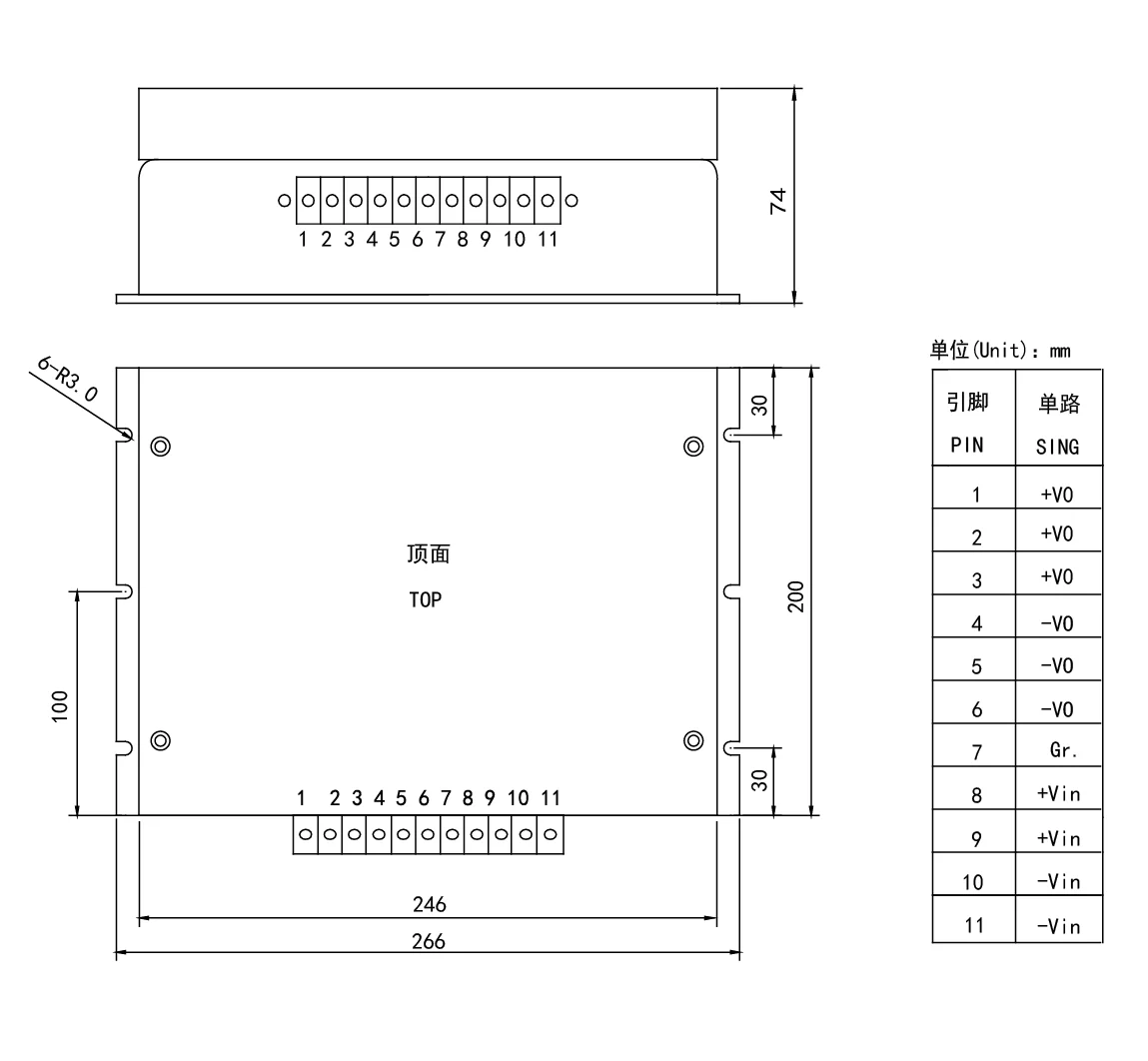

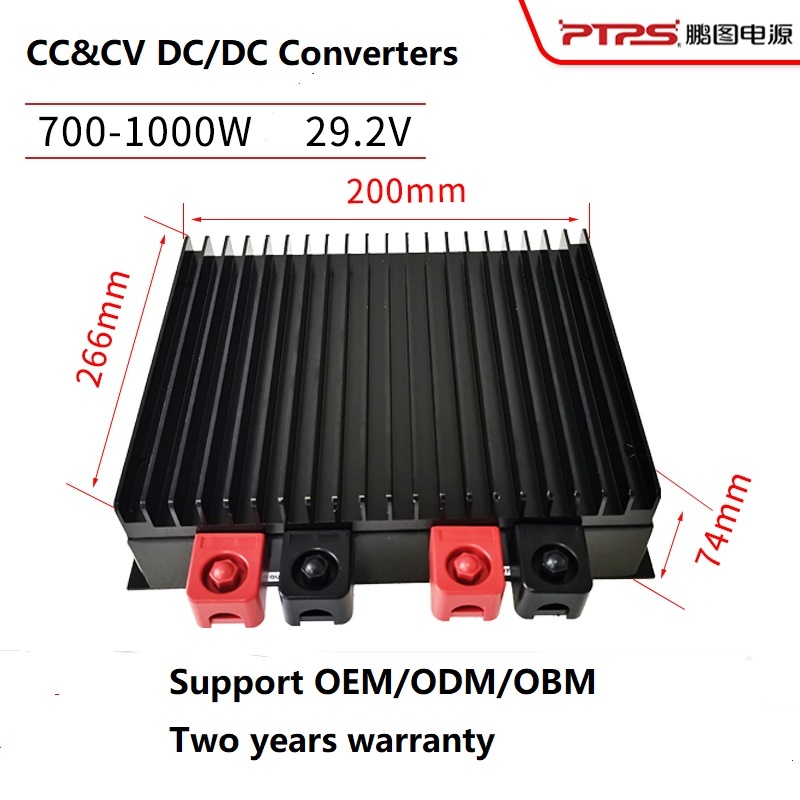

Size 266*200*74mm Weight 300g
Warranty 2 years Customized support Custom LOGO
Certificate CE,RoHs, ect


Packaging and delivery

Selling Units Single item Single package size 40X35X20 cm
Single gross weight 6.000 kg

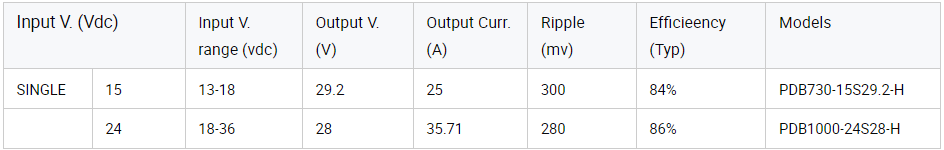

Products Description

Input V. (Vdc)
Input V. range (vdc)
Output V.(V)
Output Curr.(A)
Ripple (mv)
Efficieency (Typ)
Models
SINGLE
15
13-18
29.2
25
300
84%
PDB730-15S29.2-H
24
18-36
28
35.71
280
86%
PDB1000-24S28-H
Product Specifications
Input Characteristic:
Voltage range
15VDC (Normal Rated Value): 13 ~ 18 VDC
24VDC (Normal Rated Value): 18 ~ 36 VDC

Output Characteristic:
* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
* Output Current Limited ................................. 120% （Typ）
* Output current …………………………………5-80A for optional
* Output voltage …………………………………5-110V
* Power ……………………………………………500-1000W


General Characteristic：
* Switching frequency …………………… 100-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage * Input-output:>1500 VDC
* Input-case:>1050 VDC
Output-case: >500 VDC
* Environmental Characteristic
* Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃
Product Features
Product Application
Company Profile
Why Choose Us
30pcs 24vdc to 24vdc 3a 75W power converter/ carton (it's ok according to your requirement)
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
