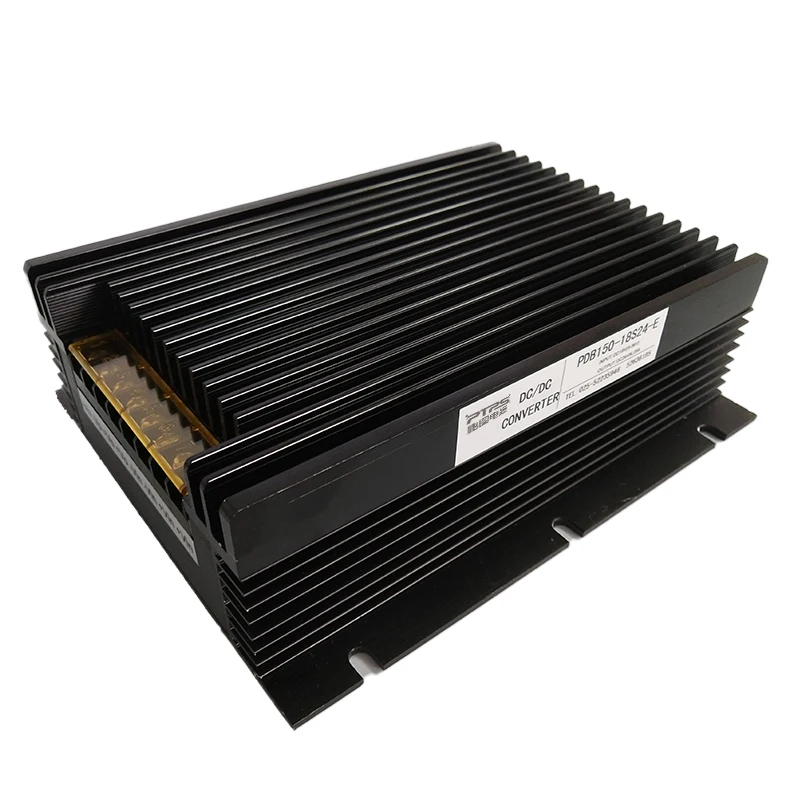

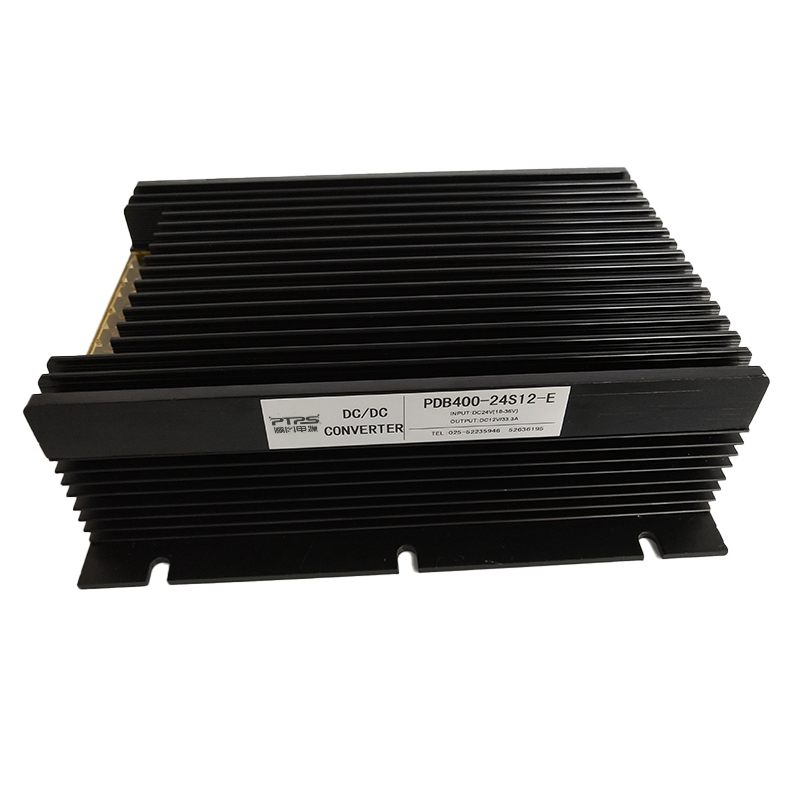

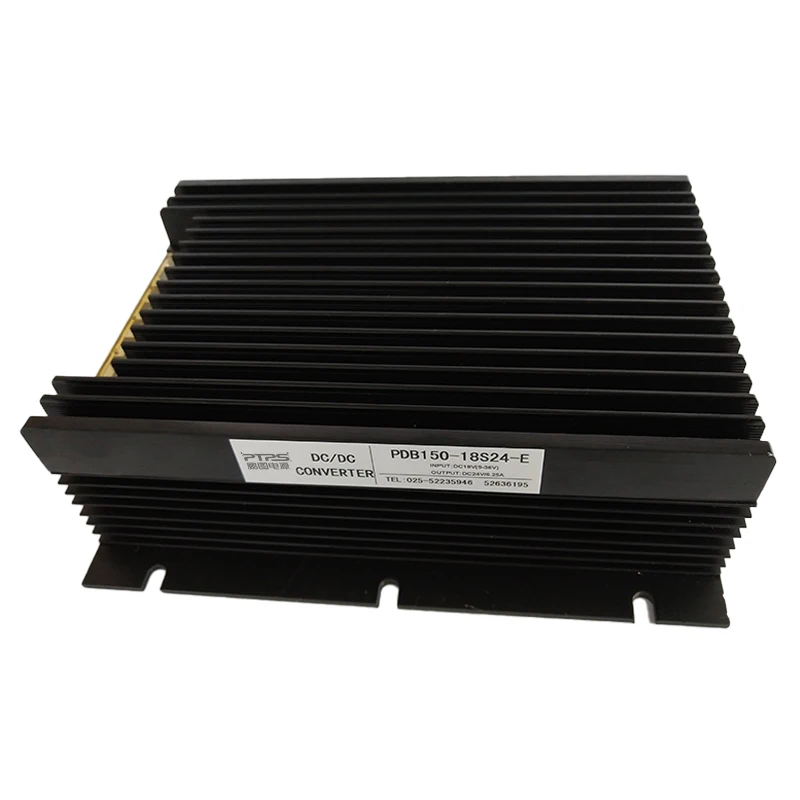

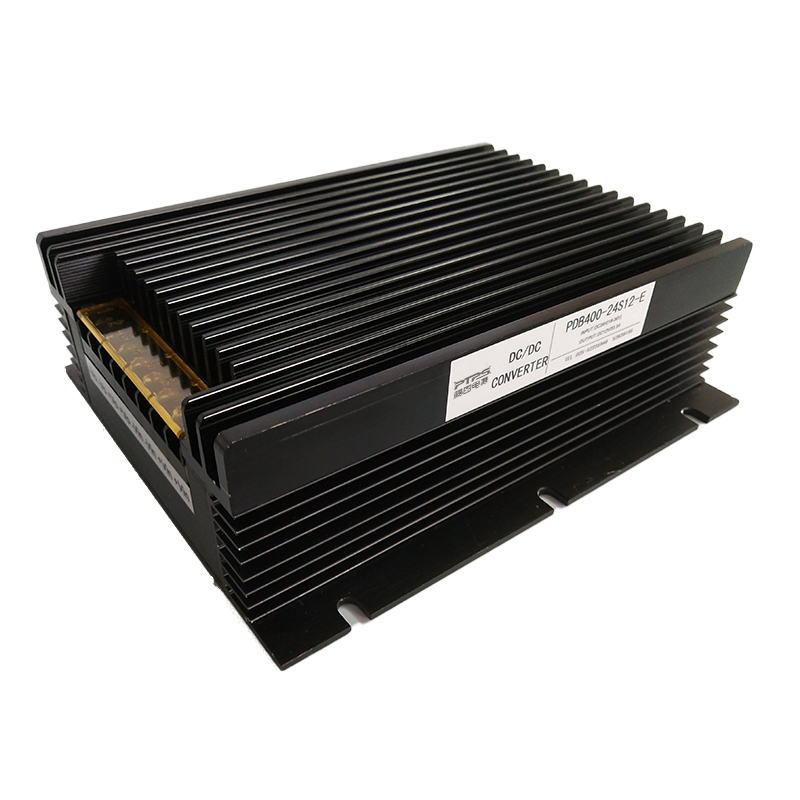

  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
  • PDB-E Series
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
1/1
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
  • PDB-E Series
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
Share:

PDB-E Series 100-350W

SKU:
0.0 (0)
0 Sold
$110.00 $0.00
Input V. (Vdc)
Input V. range (vdc)
Output V.(V)
Output Curr.(A)
Models
SING
12
9-18
12
16.67
PDB200-12S12-E
18
9-36
24
6.25
PDB150-18S24-E
12
9-18
24
12.5
PDB300-12S24-E
24
18-36
12
33.3
PDB400-24S12-E
24
18-36
110
3
PDB330-24S110-E
110
66-154
12
33.3
PDB400-110S12-E
110
66-154
24
16.7
PDB400-110S24-E
110
66-154
48
8.3
PDB400-110S48-E
600
400-800
24
12.5
PDB300-600S24-E
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Output Lines:
    Single
  • Output Power:
    200W
    150W
    300W
    400W
    330W
  • Input Voltage:
    9-18V
    9-36V
    18-36V
    66-154V
    400-800V
  • Output Voltage:
    12V
    24V
    110V
    48V
  • Output Current:
    16.67A
    6.25A
    12.5A
    33.3A
    3A
    16.7A
    8.3A
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
  • PDB-E Series
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
  • PDB-E Series
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
1/1
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
  • PDB-E Series
  • PDB-E Series 48V to 110V DC-DC Boost Converter Step up Power Module
  • Description

Key attributes

Phase Single Phase Output Frequency 100-200KHZ
Type DC/DC Converter Place of Origin Jiangsu, China
Brand Name Pengtu Output Type Single

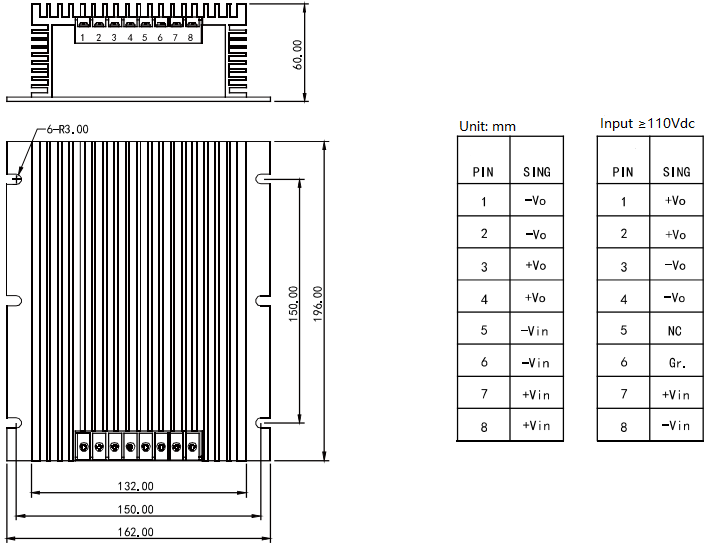

Size 196*162*60m Weight 400g
Warranty 2 years Customized support Custom LOGO
Certificate CE,RoHs, ect


Packaging and delivery

Selling Units Single item Single package size 30X25X10 cm
Single gross weight 4.000 kg
Products Description
Product Specifications
Input Characteristic
Voltage range
12VDC (Normal Rated Value): 9 ~ 18 VDC
18VDC (Normal Rated Value): 9 ~ 36 VDC
24VDC (Normal Rated Value): 18 ~ 36 VDC
110VDC (Normal Rated Value): 66 ~ 154 VDC
600VDC (Normal Rated Value): 400 ~ 800 VDC

Output Characteristic
* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
* Output Current Limited ................................. 120% （Typ）
* Output current …………………………………5-40A for optional
* Output voltage …………………………………5-48V
* Power ……………………………………………100-350W


General Characteristic
* Switching frequency …………………… 100-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage
* Input-output:>1500 VDC
* Input-case:>1050 VDC
* Output-case:>500 VDC


* Environmental Characteristic
* Substrate Working Temperature ………Industry: -25-+85℃
M I: -40-+85℃
M II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃
M: -55-+105℃
Input V. (Vdc)
Input V. range (vdc)
Output V.(V)
Output Curr.(A)
Models
SING
12
9-18
12
16.67
PDB200-12S12-E
18
9-36
24
6.25
PDB150-18S24-E
12
9-18
24
12.5
PDB300-12S24-E
24
18-36
12
33.3
PDB400-24S12-E
24
18-36
110
3
PDB330-24S110-E
110
66-154
12
33.3
PDB400-110S12-E
110
66-154
24
16.7
PDB400-110S24-E
110
66-154
48
8.3
PDB400-110S48-E
600
400-800
24
12.5
PDB300-600S24-E
