Home > New Energy On-board Power Supply > Isolated DC DC Converter > PDB-D2 Series

1/1

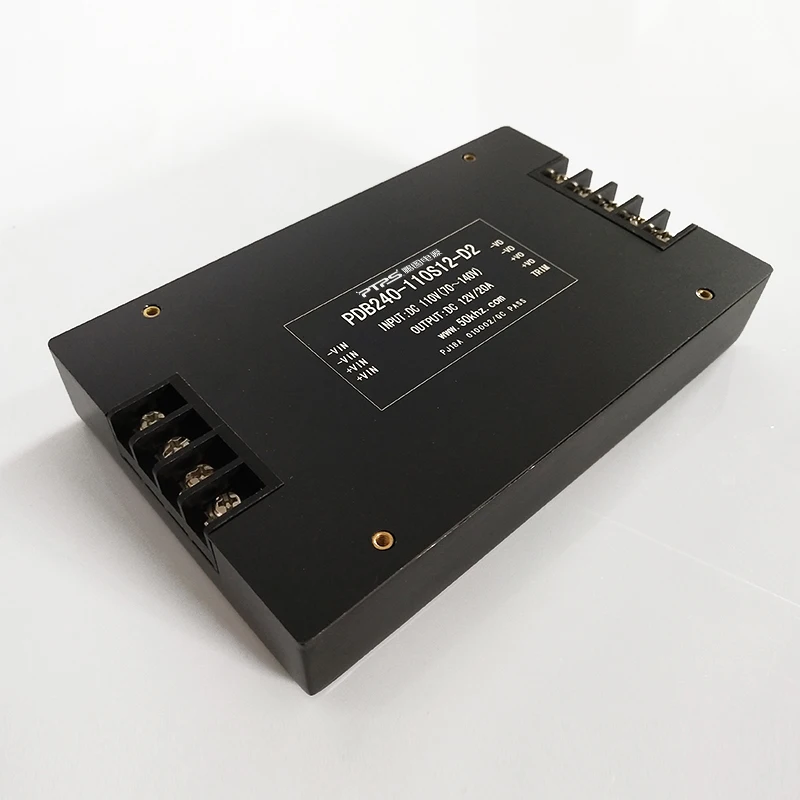

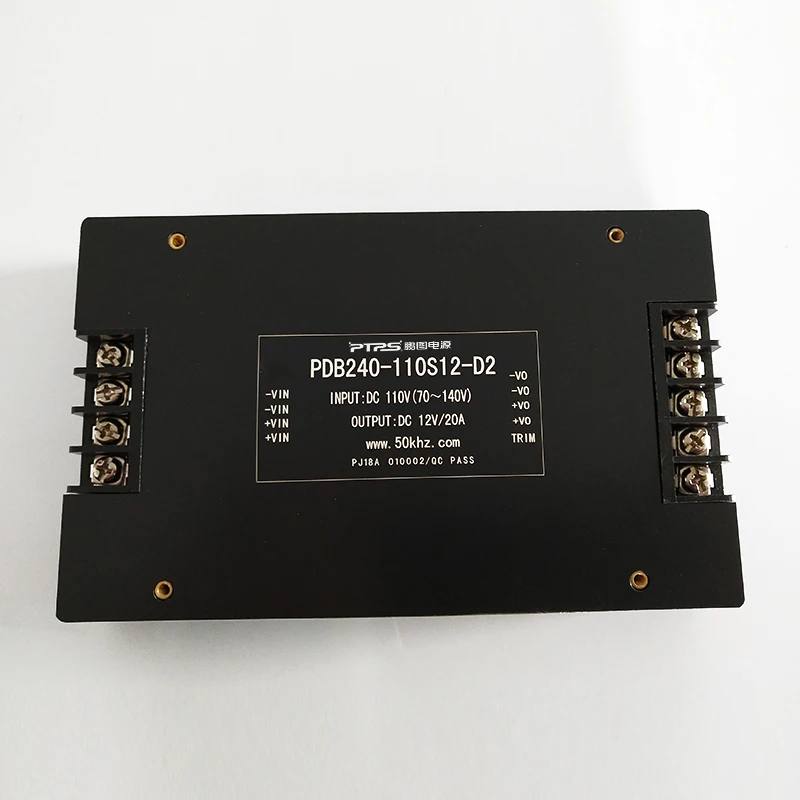

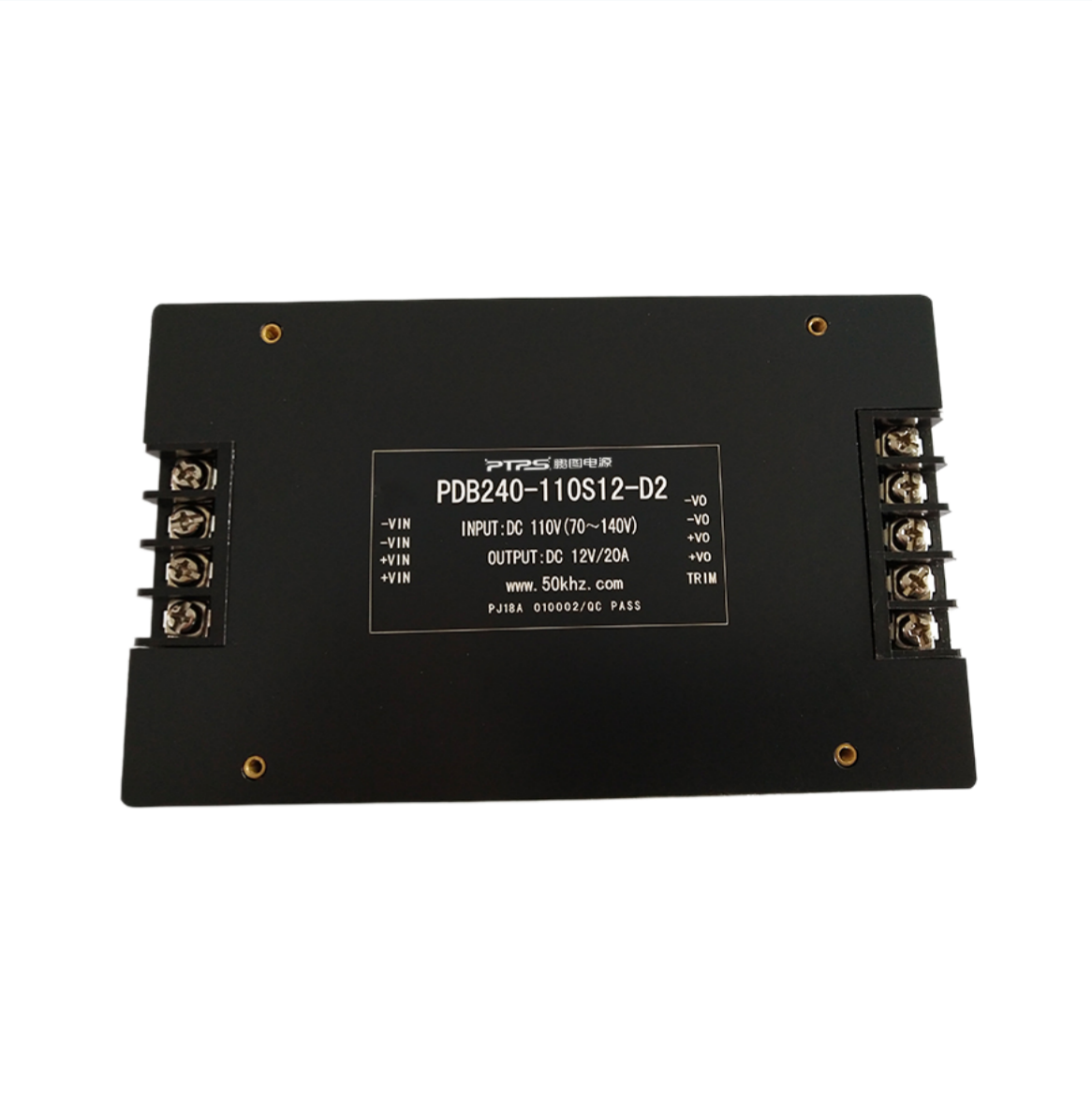

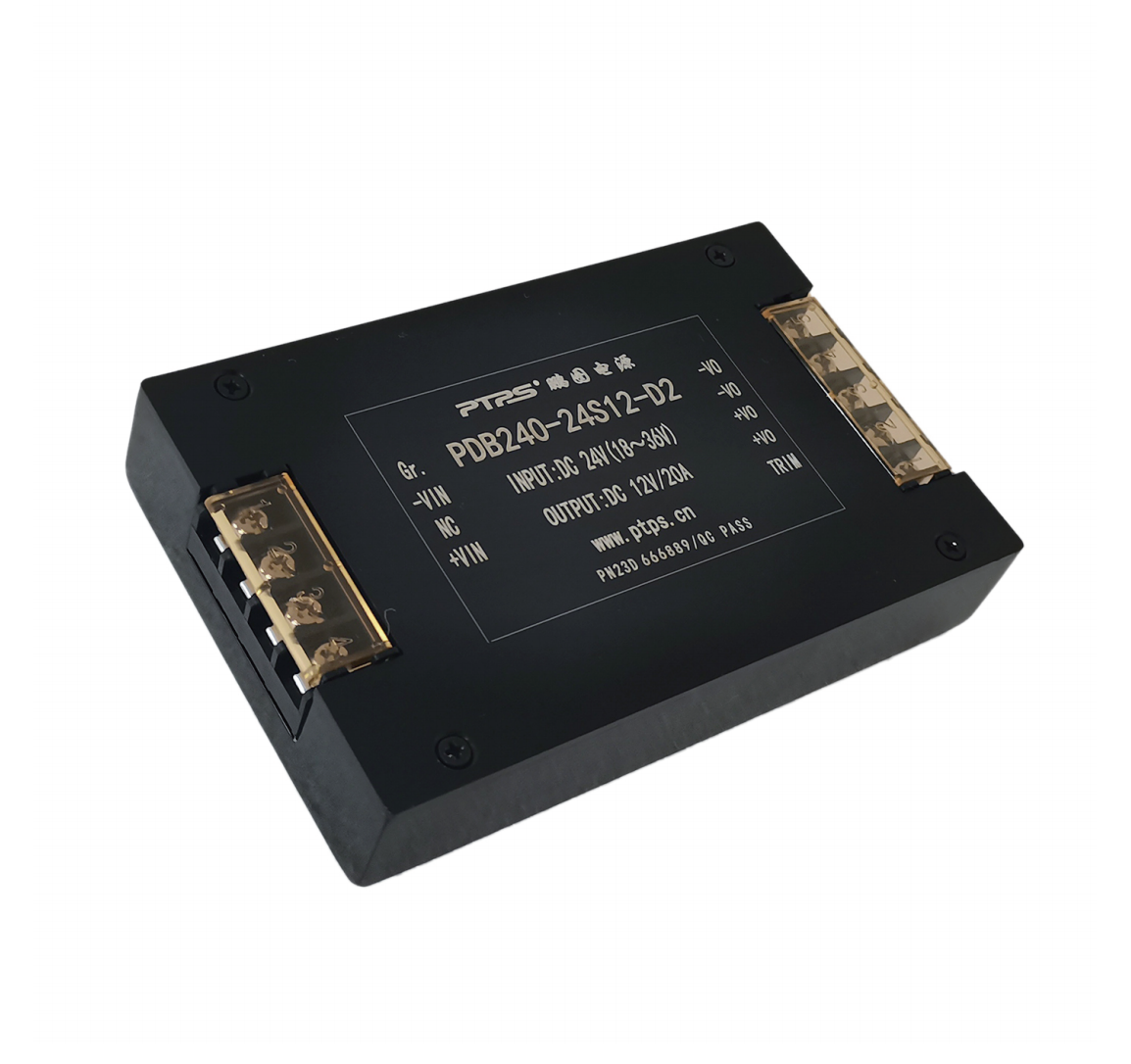

PDB-D2 Series

Name: PDB-D2 Series
Brand: MY SHOP
SKU: 1601039379629
Price: 70 USD
Availability: InStock

0.0 (0)

0 Sold

$70.00

Input V. (Vdc)		Input V. range.(vdc)	Output V.(V)	Output Curr.(A)	Models
SING	24	18-36	12	20	PDB240-24S12-D2
	24	18-36	24	12.5	PDB300-24S24-D2
	48	36-72	12	20.8	PDB250-48S12-D2
	48	36-72	24	12.5	PDB300-48S24-D2
	110	66-154	12	20	PDB240-110S12-D2
	110	66-154	24	12.5	PDB300-110S24-D2
	110	66-154	48	6.25	PDB300-110S48-D2
DUAL	24	18-36	05&24	15&4.16	PDB175-24D05&24-D2
DUAL	24	18-36	24&24	6.25&4	PDB175-24D12&24-D2

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Output Lines:

Single

Dual
Output Power:

240W

300W

250W

175W
Input Voltage:

18-36V

36-72V

66-154V
Output Voltage:

12V

24V

48V

5&24V

24&24V
Output Current:

20A

12.5A

20.8A

6.25A

15&4.16A

6.25&4A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-D2 Series
Size	1599827mm	Input Voltage	18-154VDC
Warranty	2 years	Output Current	2-10A
Certificate	CE,RoHs, ect	Output Voltage	5-48V

Packaging and delivery

Selling Units	Single item	Single package size	20X15X10 cm
Single gross weight	3.000 kg

Products Description

Product Specifications
Input Characteristic：

Inputvoltage range…………………… 9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC
36 ~ 72 VDC Rated value: 48VDC
70 ~ 140 VDC Rated value: 110VDC
9 ~ 36 VDC Rated value: 18VDC

Reverse Protection：
Fuse Outside

Output Characteristic：
Voltage set-point accuracy ………………±1%
Line regulation(main) …………...........…±0.2%
Load regulation(main) …………….......…±0.4%
Temperature coefficient …………….......±0.01%/°C
Output current limiting …………........… 120%(Typ)
Dynamic response ……………………… 400μs
Output current …………………………… 2-10A
Output voltage …………………………… 5-48V
Power …………………………………… 75-120W

General Characteristic：
Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
MTBF ………………………………… >500000H
Isolation voltage
Input-output:>1500 VDC/1min(leakage current<5mA)
Input-case: >1050 VDC/1min(leakage current<5mA)
Output-case: >500 VDC/1min

Environmental Characteristic：
Case temperature …………………… Industry: -25-+85°C; MilitaryⅠ: -40~ +85°C; Military Ⅱ: -55~ +85°C
Storage temperature …………………… Industry: -45~ +105°C; Military: -55~ +105°C

Input V. (Vdc)		Input V. range (vdc)	Output V.(V)	Output Curr.(A)	Models
SING	24	18-36	12	20	PDB240-24S12-D2
	24	18-36	24	12.5	PDB300-24S24-D2
	48	36-72	12	20.8	PDB250-48S12-D2
	48	36-72	24	12.5	PDB300-48S24-D2
	110	66-154	12	20	PDB240-110S12-D2
	110	66-154	24	12.5	PDB300-110S24-D2
	110	66-154	48	6.25	PDB300-110S48-D2
DUAL	24	18-36	05&24	15&4.16	PDB175-24D05&24-D2
DUAL	24	18-36	24&24	6.25&4	PDB175-24D12&24-D2
