Home > Solar PV Power Supply > PDB-C4Y Series

1/1

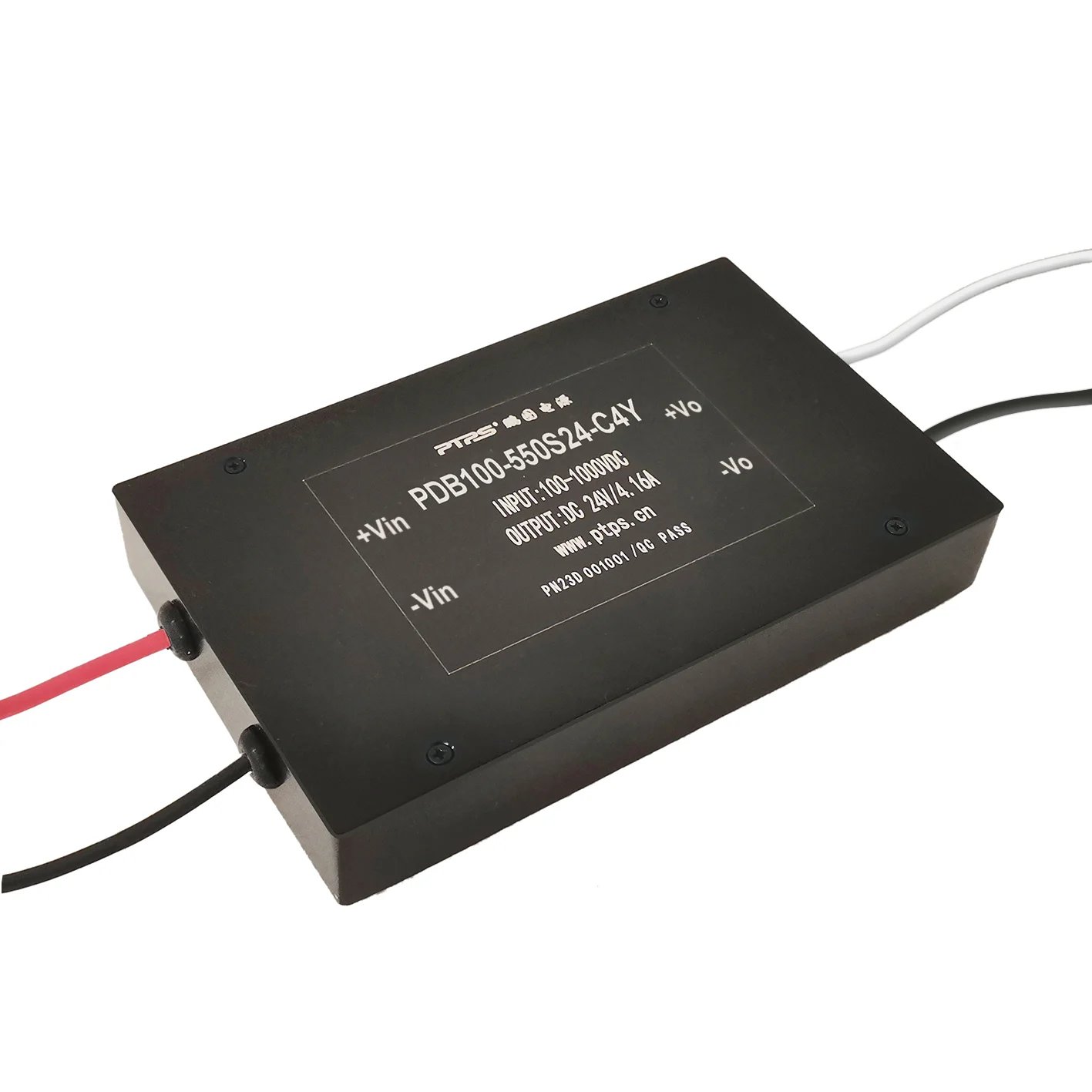

PDB-C4Y Series 100W

Name: PDB-C4Y Series 100W
Brand: MY SHOP
SKU: 1601350404204
Price: 60 USD
Availability: InStock

0.0 (0)

0 Sold

$60.00

Item	Input voltage range	Output voltage	Output current	Size
PDB100-550S12-C4Y	80-1000VDC/200-1200VDC/ 300-1500VDC	12VDC	8.33A	1398830mm
PDB100-550S24-C4Y	80-1000VDC/200-1200VDC/ 300-1500VDC	24VDC	4.17A	1398830mm

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Lines:

Single
Input voltage:

80-1500
Output voltage:

12V

24V
Output current:

8.33A

4.17A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-C4Y Series
Size	1398826mm	Input Voltage	100~1300VDC
Warranty	2 years	Output Current	2-20A
Certificate	CE,RoHs, ect	Output Voltage	5-48V

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12cm
Single gross weight	3.000 kg

Features:

* Wide input voltage: 80-1000VDC/200-1200VDC/300-1500VDC
* Isolated Input and output
* Input undervoltage protection, Input reverse protection
* Output overcurrent protection, Output short-circuit protection
* High efficiency, long life and high reliability,
* 100% full load burn-in test
* Operating temperature: -40℃~85 ℃

Input Characteristic:

80-1000VDC/200-1200VDC/300-1500VDC

Output Characteristic:
Voltage set-point accuracy ……………… ±2%
Output voltage range………………………±10%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% (Typ)
Output current …………………………………2-20A for optional
Output voltage …………………………………5-48V
Power ……………………………………………100W

General Characteristic:
Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
I: -40-+85℃

Storage temperature …………………… Industry: -45~ +105℃

J: -55-+105℃

Item	Input voltage range	Output voltage	Output current	Size
PDB100-550S12-C4Y	80-1000VDC/200-1200VDC/ 300-1500VDC	12VDC	8.33A	1398830mm
PDB100-550S24-C4Y	80-1000VDC/200-1200VDC/ 300-1500VDC	24VDC	4.17A	1398830mm
