PDB-C4 Series 100-200W

Name: PDB-C4 Series 100-200W
Brand: MY SHOP
SKU: 1601662279596
Price: 39 USD
Availability: InStock

0.0 (0)

0 Sold

$39.00

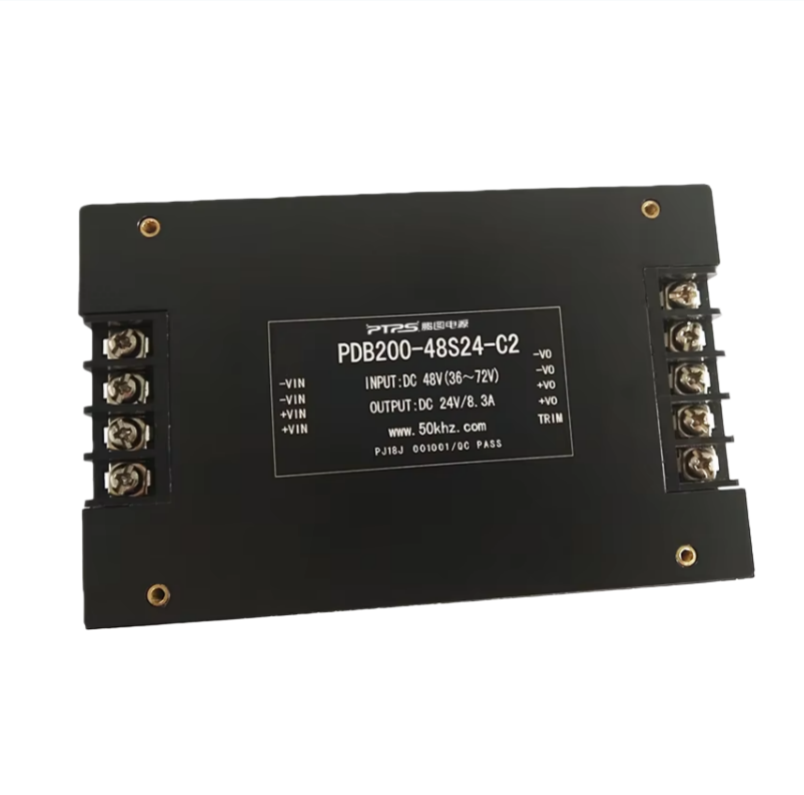

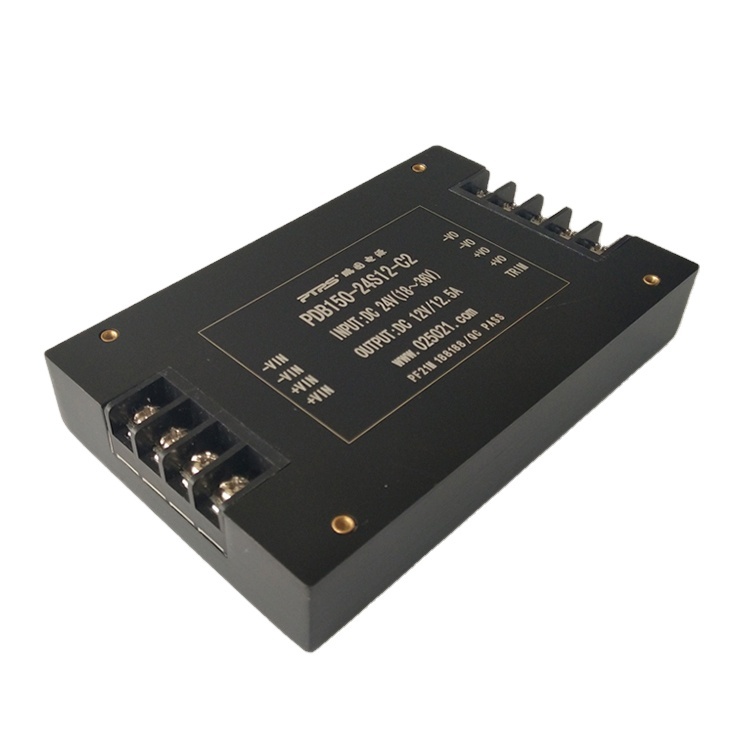

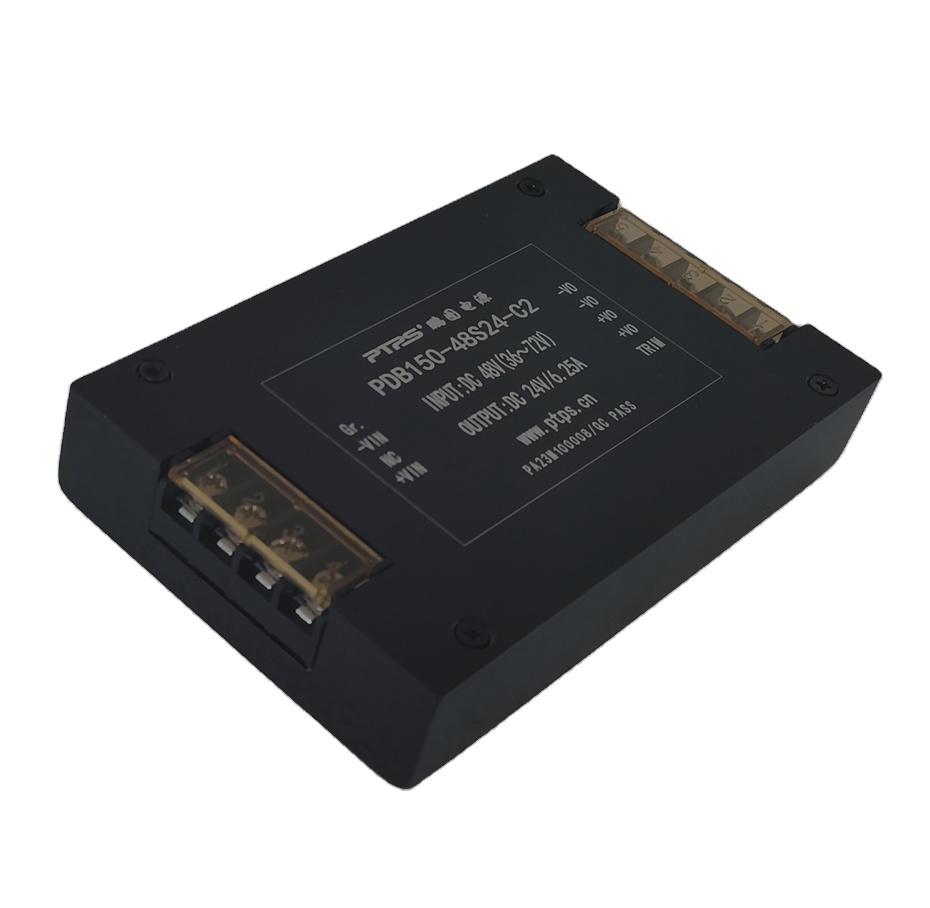

The PDB-C4 Series is a 100-200W industrial-grade DC/DC power module within the PTS PDB-C2/C4 family. It features an ultra-wide input voltage range (covering 12VDC to 800VDC), high reliability, and a fanless design, providing an efficient and stable voltage conversion solution for demanding industrial environments and new energy applications.

Typical Applications

New Energy Systems: Solar PV conversion, energy storage systems
Industrial Control: Automation equipment, robotics, motor drives
Telecom Equipment: Base station power supplies, network infrastructure
Military & Research: Special-purpose vehicles, marine power, laboratory instruments

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Lines:

Single
Input Voltage:

200-800

400-800

100-1200

300-1300
Output Power:

75W

100W

40W
Output Voltage/Output Current:

24V/3.13A

12V/8.33A

15V/2.67A

24V/4.16A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	100-200KHZ
Type	AC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Output Type	Single
Size	1398830mm	Weight	300g
Warranty	2 years	Customized support	Custom LOGO
Certificate	CE,RoHs, ect

Packaging and delivery

Selling Units	Single item	Single package size	25X20X10 cm
Single gross weight	3.000 kg

Output Characteristic
* Voltage set-point accuracy ……………… ±2%
* Output voltage range………………………±10%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
General Characteristic
* Switching frequency …………………… 160-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage
* Input-output:>1500 VDC
* Input-case:>1050 VDC
* Output-case:>500 VDC
* Environmental Characteristic
* Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃

1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western
Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South
Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent
research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW,BExpress Delivery；
Accepted Payment Currency:USD, EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
