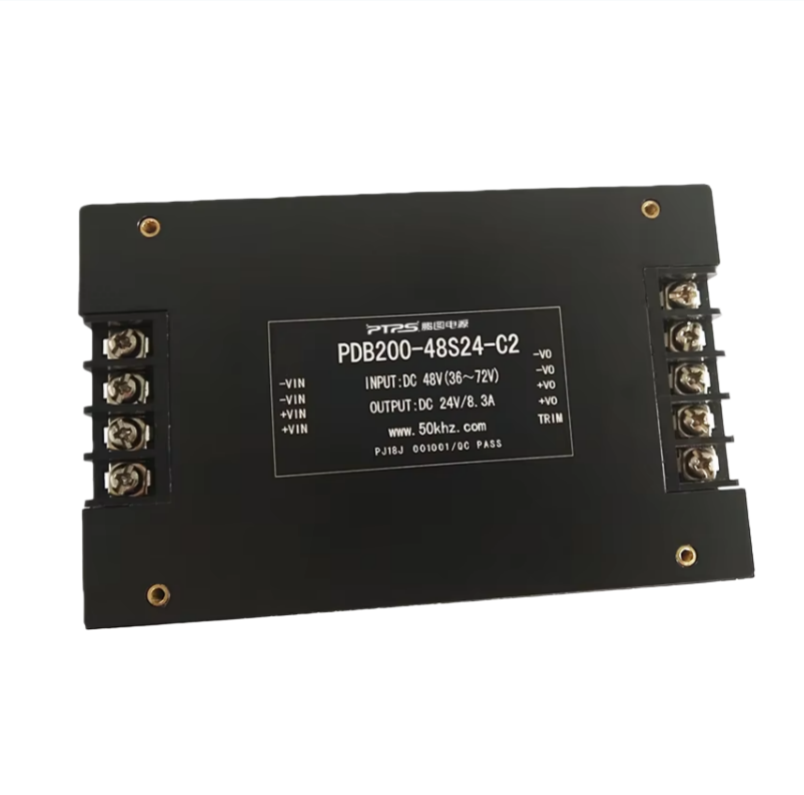

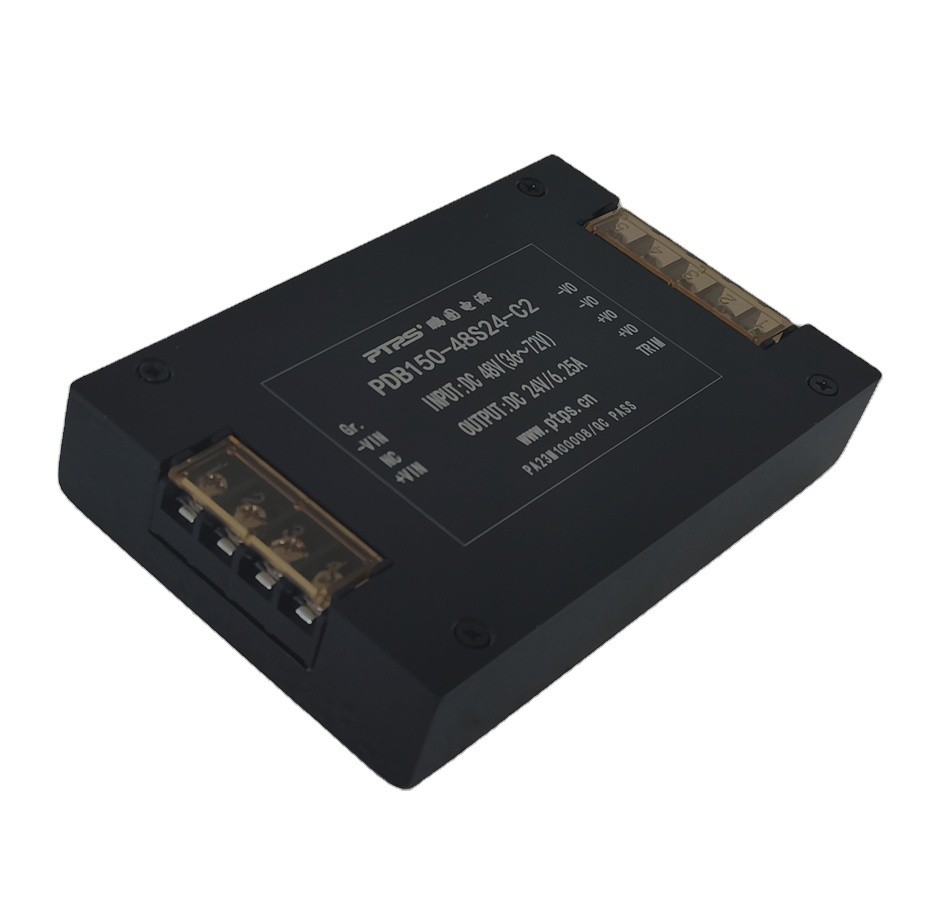

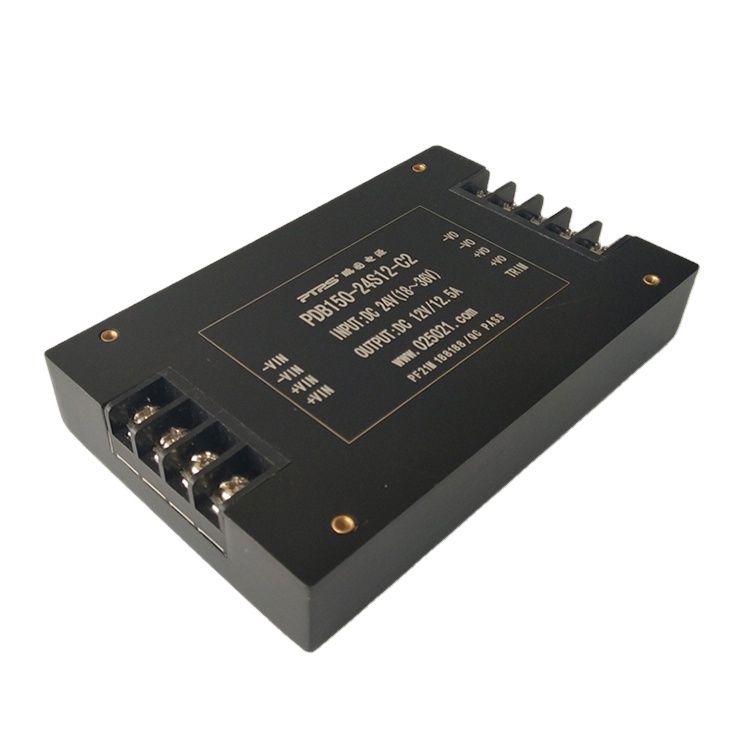

PDB-C2 Series 100-200W

SKU:
0.0 (0)
0 Sold
$35.00 $0.00
The PDB-C2 Series is a 100-200W industrial-grade DC/DC power module, featuring an ultra-wide input voltage range​ and high reliability​ as its core advantages. It is specifically designed for applications facing complex input power environments. This series supports multiple standard inputs from 12VDC to 110VDC, with some models offering a fourfold input range​, allowing it to easily adapt to scenarios with significant battery voltage fluctuations or unregulated power sources.
The PDB-C2 Series is an ideal choice for fields such as solar photovoltaic systems, industrial automation, telecommunications equipment, military electronics, and intelligent robotics.​ It is particularly well-suited for harsh environments with unstable input voltage or space constraints, where high power supply reliability and long lifespan are critical.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Black
    Black
  • Output Lines:
    Single
    Dual
  • Input Voltage:
    9-36
    18-36
    36-72
    66-154
  • Output Power:
    100W
    150W
    200W
  • Output Voltage/Output Current:
    12V/8.33A
    24V/4.16A
    12V/12.5A
    24V/6.25A
    24V/8.33A
    48V/4.16A
    12&24V/4&4.16A
    5&24V/10&4.16A
    5&12V/10&8.33A
    Please select the information you wantX
Quantity:
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
1/1
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • PDB100-18S24-C2 | 100W DC-DC Power Module | 24V 4.16A Output | Input 9-36VDC | for Industrial Control & LED Lighting
  • Description

Key attributes

Phase Single Phase Output Frequency 100-200KHZ
Type AC/DC Converter Place of Origin Jiangsu, China
Brand Name Pengtu Output Type Single/Dual

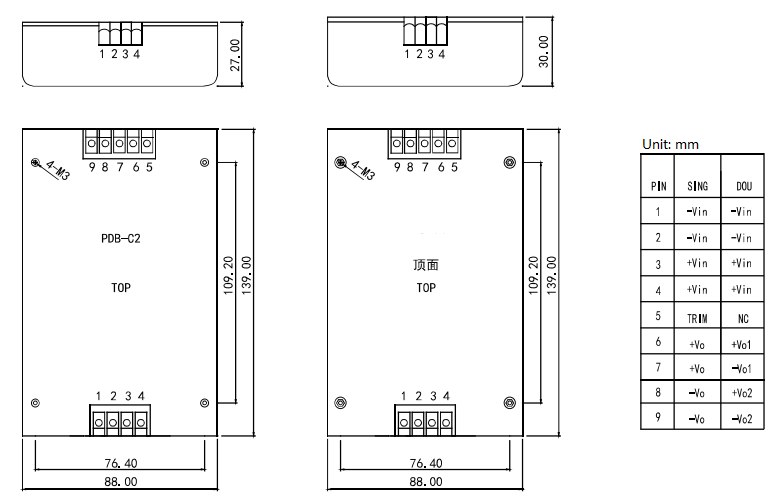

Size 139*88*27mm Weight 300g
Warranty 2 years Customized support Custom LOGO
Certificate CE,RoHs, ect


Packaging and delivery

Selling Units Single item Single package size 25X20X10 cm
Single gross weight 3.000 kg
Output Characteristic:
* Voltage set-point accuracy ……………… ±2%
* Output voltage range………………………±10%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
General Characteristic:
* Switching frequency …………………… 160-200 KHz
* Isolation resistance …………………… 200 MΩ
Isolation voltage:
* Input-output:>1500 VDC
* Input-case:>1050 VDC
* Output-case:>500 VDC
Environmental Characteristic:
* Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
* Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃

1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western
Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South
Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?

We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent
research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW,BExpress Delivery;
Accepted Payment Currency:USD, EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
