Home > Module Power Supply > Isolated DC DC Converter > PDB-A Series

1/1

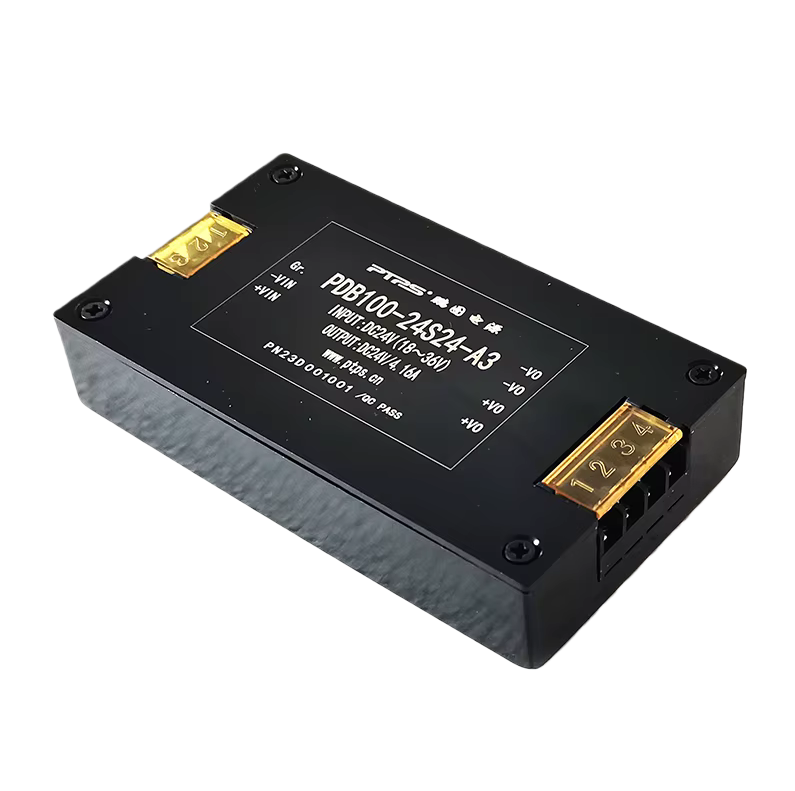

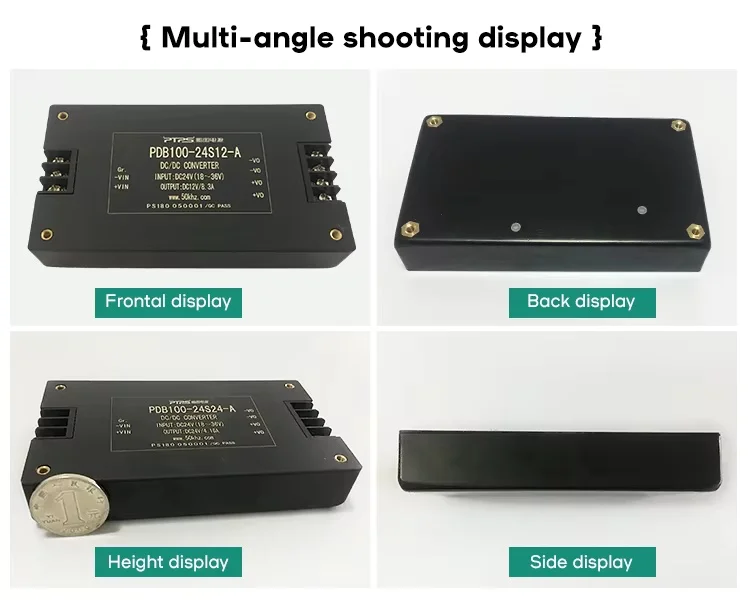

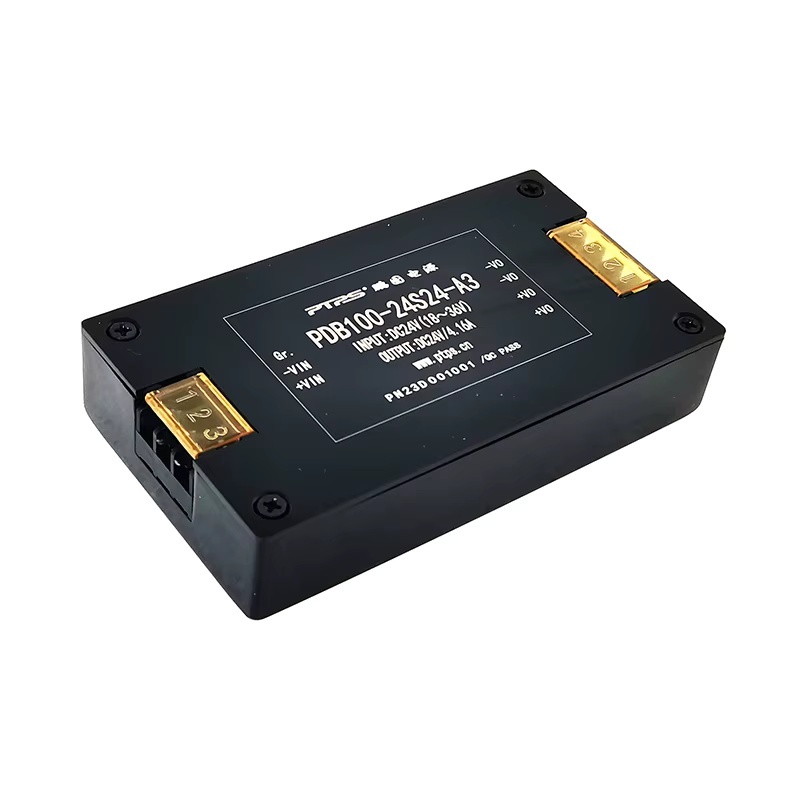

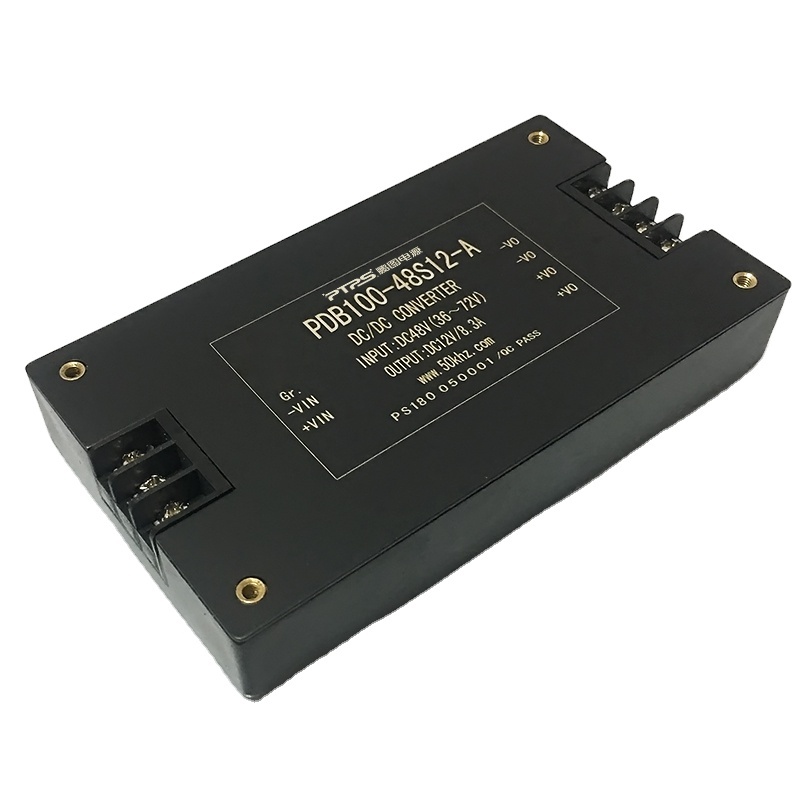

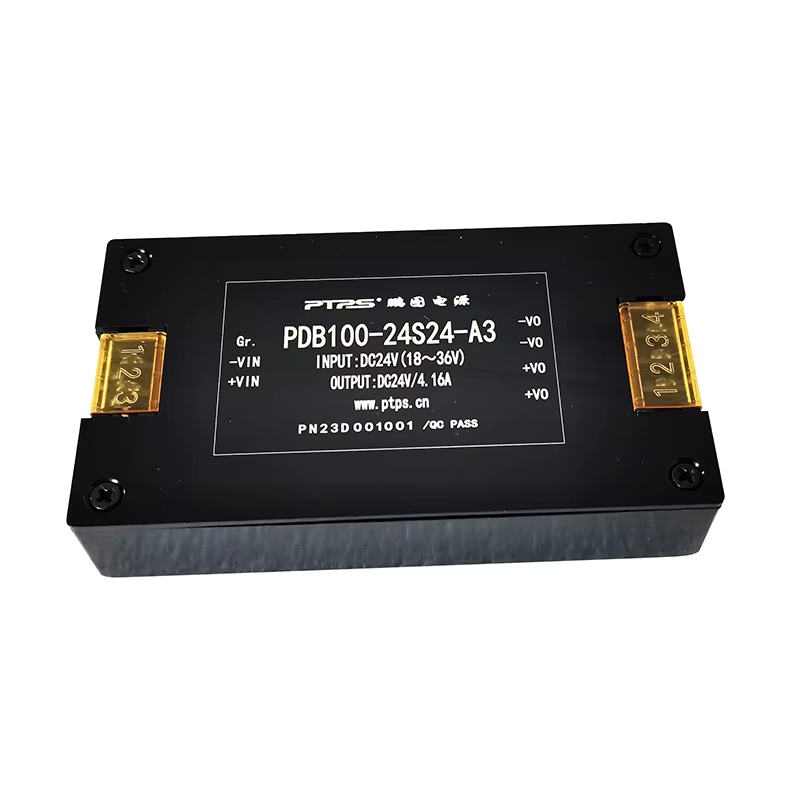

PDB-A Series 30-100W

Name: PDB-A Series 30-100W
Brand: MY SHOP
SKU: 1601663710383
Price: 24 USD
Availability: InStock

0.0 (0)

0 Sold

$24.00

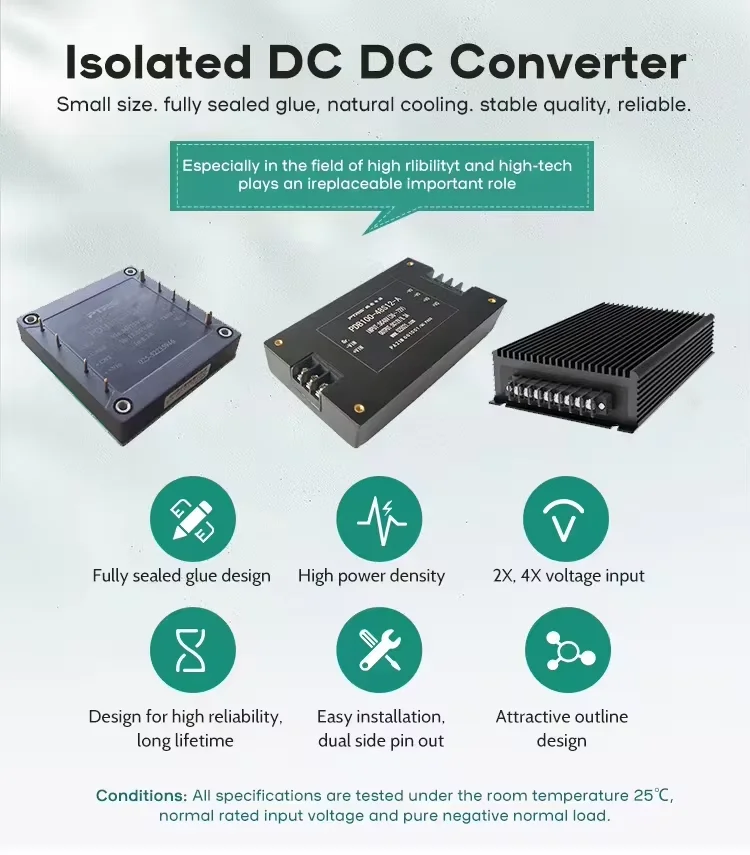

The PDB-A Series represents a high-value, cost-effective choice within our DC/DC power module family, offering a power range from 30W to 100W. Featuring a compact design and an ultra-wide 2:1 to 4:1 input voltage range, this series is engineered for industrial applications requiring reliable voltage conversion in demanding environments.

Typical Applications：Industrial Control & Automation Systems、Telecommunications Equipment & Network Infrastructure、Battery-Powered & Energy Storage Systems、Military Electronic Equipment and Intelligent Robotics & Automated Machinery.

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Lines:

Single

Dual
Input Voltage:

9-36

18-36

36-72

66-154
Output Power:

75W

100W

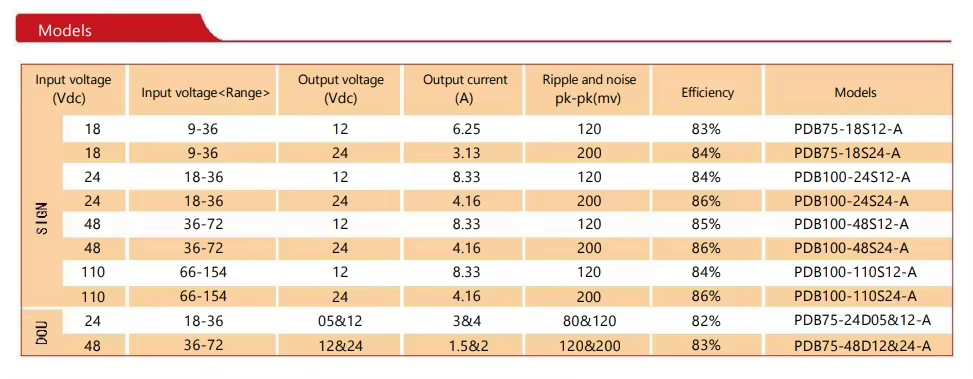

Output Voltage/Output Current:

12V/6.25A

24V/3.13A

12V/8.33A

24V/4.16A

5&12V/3&4A

12&24V/1.5&2A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	100-200KHZ
Type	AC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Output Type	Single/Dual

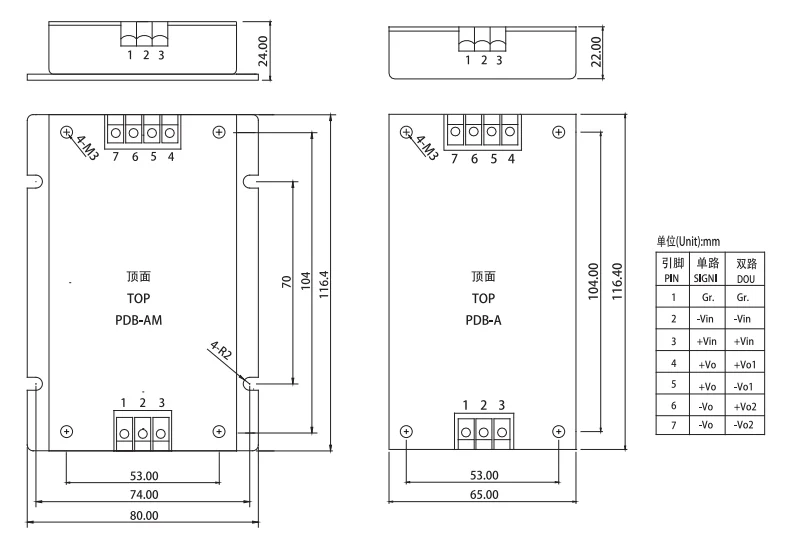

Size	116.46522mm	Weight	300g
Warranty	2 years	Customized support	Custom LOGO
Certificate	CE,RoHs, ect

Packaging and delivery

Selling Units	Single item	Single package size	20X18X15 cm
Single gross weight	2.000 kg

Input Characteristic: Inputvoltage range……………………18 ~ 36 VAC
Rated value: 24VAC .................................................... 36 ~ 72 VAC
Rated value: 48VAC
*Reverse Protection *Fuse Outside
Output Characteristic: Voltage set-point accuracy ………………±1%
Line regulation(main) …………...........…±0.2%
Load regulation(main) …………….......…±0.4%
Temperature coefficient …………….......±0.01%/°C
Output current limiting …………........… 120%(Typ)
Dynamic response ……………………… 400μs
Output current …………………………… 2-10A
Output voltage …………………………… 5-48V
Power …………………………………… 75-120W
General Characteristic: Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
MTBF ………………………………… >500000H
Isolation voltage Input-output:>1500 VDC/1min(leakage current<5mA)
Input-case: >1050 VDC/1min(leakage current<5mA)
Output-case: >500 VDC/1min
Environmental Characteristic: Case temperature …………………… Industry: -25-+85°C; JⅠ: -40~ +85°C;
Storage temperature …………………… Industry: -45~ +105°C; J: -55~ +105°C

1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western
Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South
Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent
research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW,BExpress Delivery；
Accepted Payment Currency:USD, EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
