Home > Solar PV Power Supply > PD-M Series

1/1

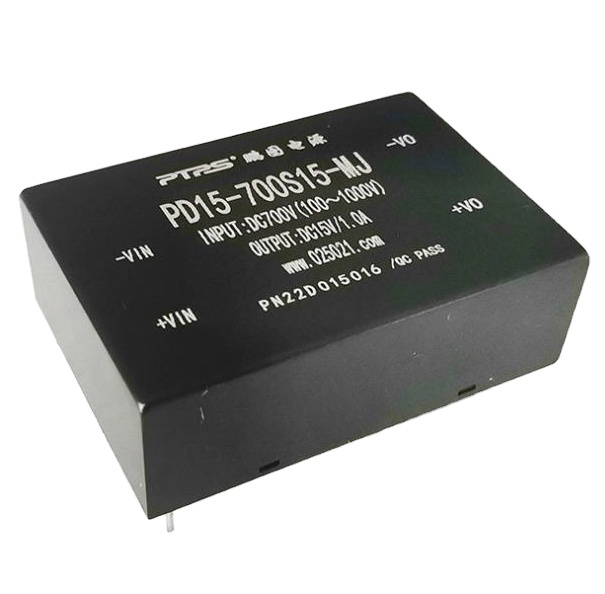

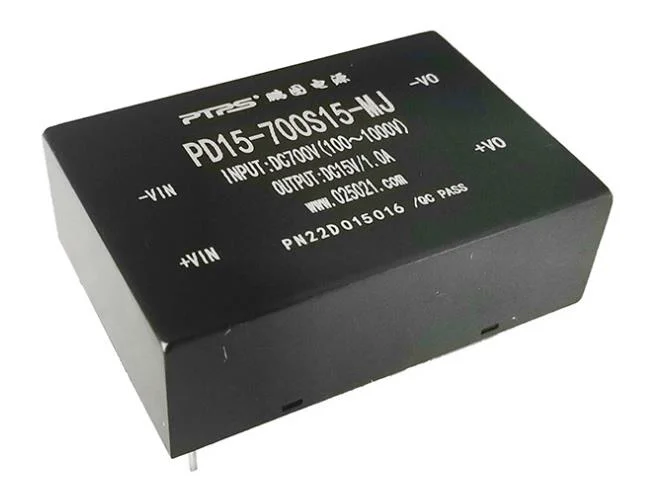

PD-M Series 15-20W

Name: PD-M Series 15-20W
Brand: MY SHOP
SKU: 1601582659666
Price: 18 USD
Availability: InStock

0.0 (0)

0 Sold

$18.00

15-20W Ultra-Wide High Voltage Input DC/DC Module Power Supply (PD-M Series) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 250~1500VDC and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

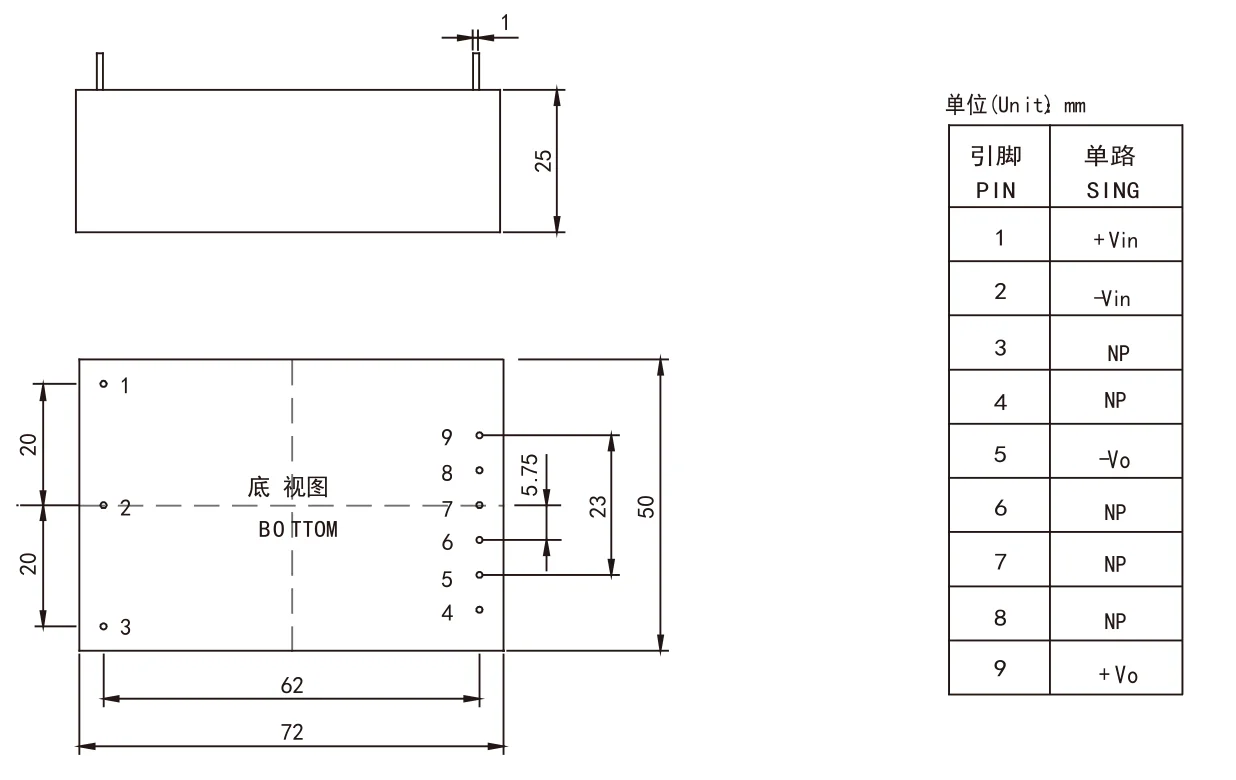

Item	Input voltage range	Output voltage	Output current	Size
PD15-700S05-M	200-1200VDC	5V	3000mA	725025MM
PD15-700S12-M		12V	1250mA
PD15-700S24-M		24V	630mA
PD20-900S05-M	300-1500VDC	5V	4000mA
PD20-900S12-M		12V	1660mA
PD20-900S24-M		24V	1040mA

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Input voltage:

200-1200V

300-1500V
Output voltage:

5V

12V

24V
Output current:

3A

1.25A

0.63A

4A

1.66A

1.04A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	160-200KHZ
Type	DC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Model Number	PDB-T1Y Series
Size	725025mm	Input Voltage	300-1500VDC
Warranty	2 years	Output Current	3~10A
Certificate	CE,RoHs, ect	Output Voltage	5V/12V/24V

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12cm
Single gross weight	2.000 kg

15-20W Ultra-Wide High Voltage Input DC/DC Module Power Supply (PD-M Series) is a high-efficiency, long-life, and highly reliable regulated power module. It supports an ultra-wide input voltage range of 250~1500VDC and features input-output isolation, under-voltage protection, reverse connection protection, output overcurrent protection, and short-circuit/overvoltage protection. Fully tested under 100% full-load aging conditions, it operates reliably in temperatures from -40℃ to +85℃. Widely applicable in photovoltaic power generation, PV inverters, energy storage systems, industrial control, and various civil applications, it provides stable and dependable working voltage for load devices.

Key Features:
* Ultra-wide input voltage: 200~1300VDC/300-1500VDC
* Input-output isolation
* Input under-voltage and reverse connection protection
* Output overcurrent, short-circuit, and overvoltage protection
* High efficiency, long life, high reliability
* Operating temperature: -40℃ ~ +85℃
* 100% full-load aging tested

Input Characteristic

250~1500VDC

Output Characteristic

Voltage set-point accuracy ……………… ±2%
Output voltage range………………………±10%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Output Current Limited ................................. 120% (Typ)
Output current …………………………………2-20A for optional
Output voltage …………………………………5-24V
Power ……………………………………………15-20W

General Characteristic

Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃

Military: -55-+105℃

Item	Input voltage range	Output voltage	Output current	Size
PD15-700S05-M	200-1200VDC	5V	3000mA	725025MM
PD15-700S12-M		12V	1250mA
PD15-700S24-M		24V	630mA
PD20-900S05-M	300-1500VDC	5V	4000mA
PD20-900S12-M		12V	1660mA
PD20-900S24-M		24V	1040mA
