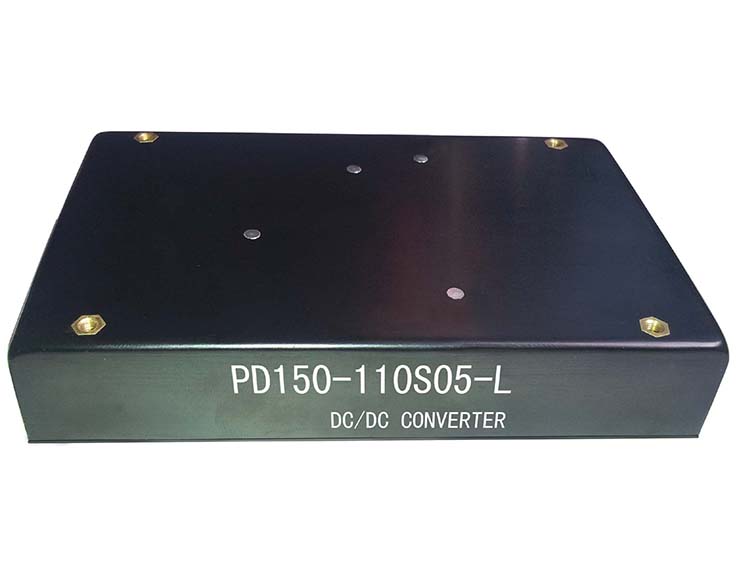

PD-L Series 150-300W

PD-L Seires

Features

l       Wide range of input voltage

l       Design for high reliability, long lifetime

l       Under & over-voltage protection for output

l       Full load efficiency up to 92%

l       Fast dynamic response

l       Up to 26 power density

l       High voltage input, high output power

l       Wide range of power, easy to upgrade

Input Characteristic

 l       Inputvoltage range……………………  70~140 VDC Rated value: 110VDC

                                                     200~400 VDC Rated value: 300VDC

                                                     400~800 VDC Rated value: 600VDC

       Reverse Protection

       Fuse Outside

Output Characteristic

 l       Output voltage seet-point accuracy……… ±1%

l       Line regulation …………………………… ±0.2% (typ)

l       Load regulation(10%~100%) …………… ±0.4% (typ)

l       Temp.  Coefficient…………………………… ±0.01 %/℃

l       Output current limiting …………… 120%(Typ)

l       Dynamic response ……………………… 400μs

l       Output current …………………………… 2-30A

l       Output voltage …………………………… 5-48V

l       Power  …………………………………… 150-300W


General Characteristic

l       Switching frequency …………………… 160~200 KHz

l       Isolation resistance ……………………  200 MΩ

l       MTBF …………………………………  >500000H

l       Isolation voltage

          Input-output: >2000 VDC

          Input-case: >2000 VDC

         Output-case: >500 VDC

l       Environmental Characteristic

        Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃; Military II: -55-+85℃

        Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃

 Models

Remark: Custom-made specifications are acceptable.

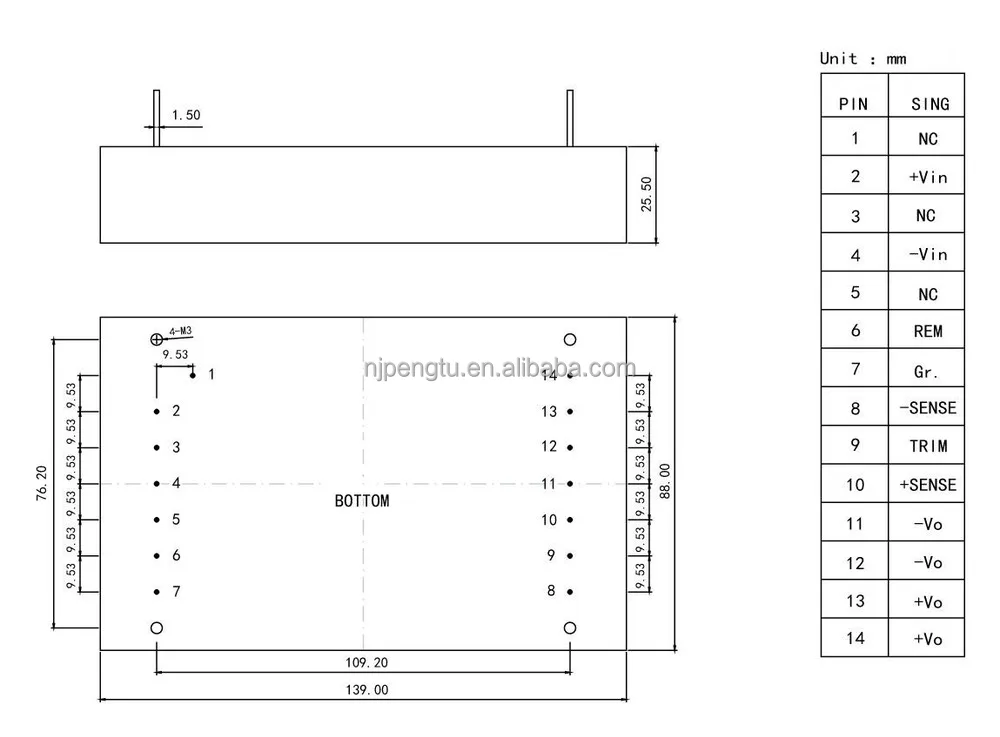

Mechanical Drawing & Pin definition
