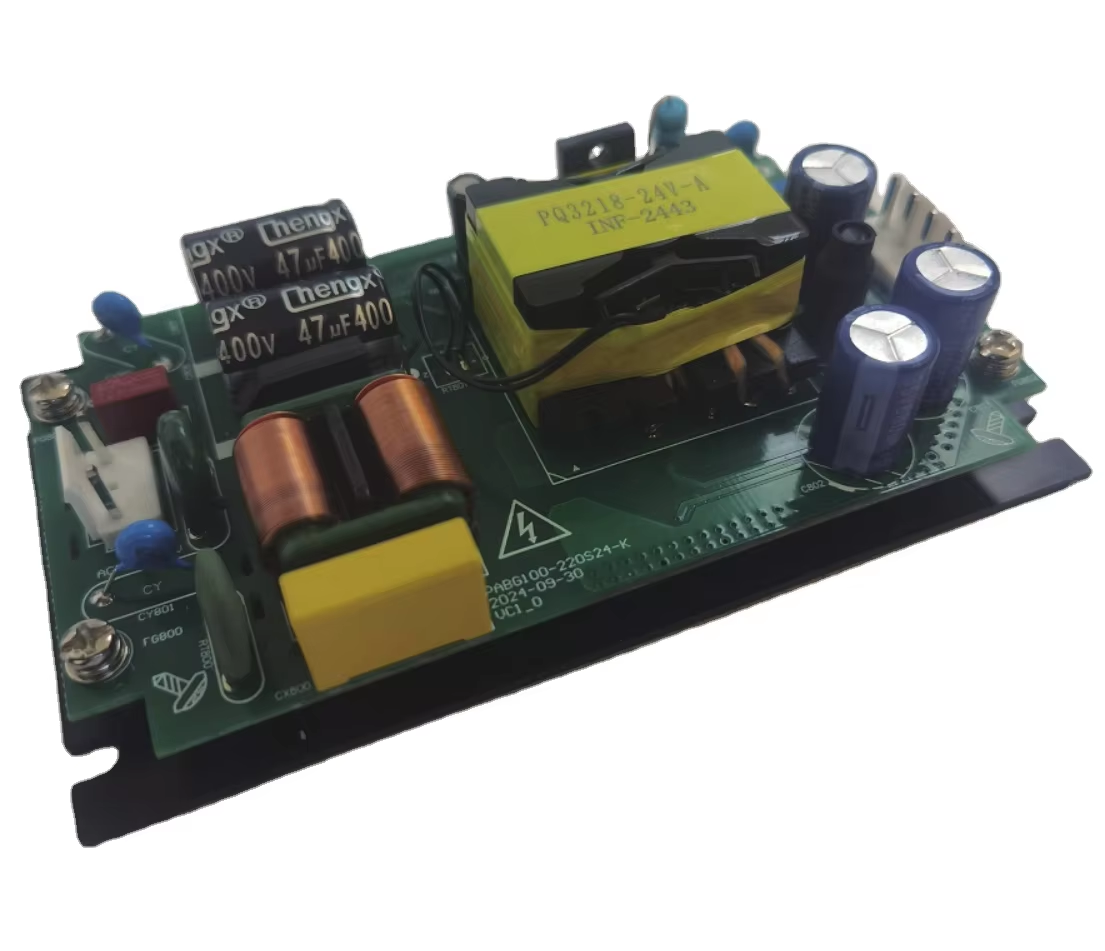

Item
|
PAK100-220WS12
|
PAK100-220WS15
|
PAK100-220WS24
|
PAK100-220WS36
|
PAK100-220WS48
|
|
|
|
|
|
|
Dc voltage
|
12V
|
15V
|
24V
|
36V
|
48V
|
|
|
|
|
|
Output rated current
|
8.33A
|
6.66A
|
4.16A
|
2.77A
|
2.08A
|
|
|
|
|
|
Output voltage range
|
11-13V
|
14-16V
|
22-26V
|
33-39V
|
44-52V
|
|
|
|
|
|
Rated power
|
100W
|
100W
|
100W
|
100W
|
100W
|
|
|
|
|
|
Ripple&noise
|
120Mvp-p
|
180Mvp-p
|
200Mvp-p
|
300Mvp-p
|
300Mvp-p
|
|
|
|
|
|
Output voltage accuracy
|
±2.0%
|
±2%
|
|
|
|
|
|
Linear regulation
|
±1%
|
|
|
|
|
|
Load regulation
|
±1.0%
|
|
|
|
|
|
Start, rise time
|
500ms, 30ms / 230VAC 500ms, 30ms / 115VAC full load
|
|
|
|
|
|
Hold time (Typ)
|
30ms / 230VAC 16ms / 115VAC Full load
|
|
|
|
|
|
|
Input voltage range
|
85-264VAC 100-370VDC
|
|
|
|
|
|
Efficiency
|
88%
|
89%
|
89%
|
90%
|
90%
|
|
|
|
|
|
Input current (Typ)
|
500mA/120VAC 900mA/230VAC
|
|
|
|
|
|
Surge current (Typ)
|
40A/120VAC 50A/230VAC
|
|
|
|
|
|
Leakage current
|
<1mA at 230VAC/60HZ
|
|
|
|
|
|
|
Input undervoltage
|
AC in <75VAC
|
|
|
|
|
|
Input overvoltage
|
AC icn> 280VAC
|
|
|
|
|
|
Output shortcircuit
|
Yes
|
|
|
|
|
|
Output over temp.
|
Yes
|
|
|
|
|
|
Output overcurrent
|
110-150% rated output power, protection mode: turn off the output, and restore after power restart
|
|
|
|
|
|
|
Operating temp.
|
-30- +70℃
|
|
|
|
|
|
Working humidity
|
10 ~ 85% RH
|
|
|
|
|
|
Storage temperature and humidity
|
-40~+85℃, 10~95% no condensation
|
|
|
|
|
|
Coefficient of temperature drift
|
0.03%/ (0~ 50℃)
|
|
|
|
|
|
Vibration resistance
|
10-500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes
|
|
|
|
|
|
|
Electromagnetic compatibility emission
|
Conduction
|
Comply with CISPR32/EN55032 CLASS A
|
|
|
|
|
|
Radiation
|
Comply with CISPR32/EN55032 CLASS A
|
|
|
|
|
|
Harmonic current
|
Comply with EN61000-3-2 CLASS A
|
|
|
|
|
|
Voltage flicker
|
IEC/EN61000-3-3
|
|
|
|
|
Electromagnetic compatibility immunity
|
Electrostatic discharge
|
IEC/EN61000-4-2 Contact 4KV/Air ±8KV
|
Perf.Criteria A
|
|
|
|
|
|
Radiation immunity
|
IEC/EN6100-4-3 3V/m
|
Perf.Criteria A
|
|
|
|
|
|
Pulse group immunity
|
IEC/EN61000-4-4 ±2KV
|
Perf.Criteria A
|
|
|
|
|
|
Surge immunity
|
IEC/EN61000-4-5 line to line ±2KV/line to ground ±4KV
|
Perf.Criteria A
|
|
|
|
|
|
Conducted disturbance immunity
|
IEC/EN61000-4-6 10Vr.m.s
|
Perf.Criteria A
|
|
|
|
|
|
Voltage dips, drops and short interruption immunity
|
IEC/EN61000-4-11 0%,70%
|
Perf.Criteria B
|
|
|
|
|
|
Insulation impedance
|
I/P-O/P, I/P-FG, O/P-FG 100M Ω/500VDC/25°C/70%RH
|
|
|
|
|
|
Isolated withstand voltage
|
I/P-O/P 1500VAC, I/P-FG 1500VAC, O/P-FG 500VAC
|
|
|
|
|
|
Others
|
MTBF
|
165K hrs min.MIL-HDBK-217E(25)
|
|
|
|
|
|

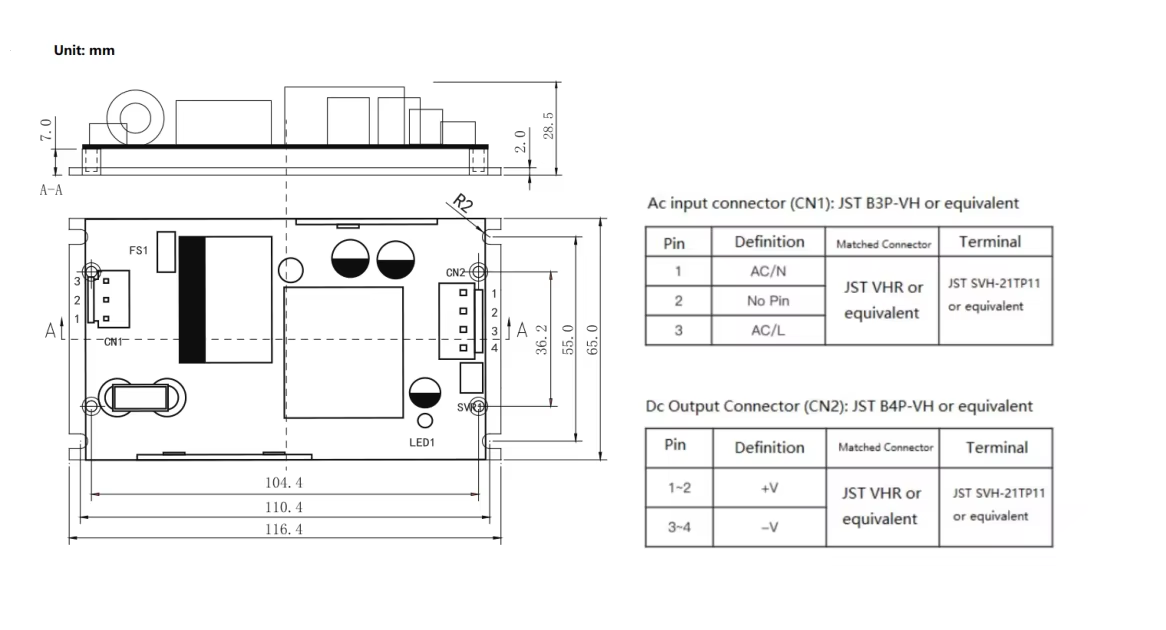

Size
|
PCB: 116.4*65*28mm (L*W*H)
|
|
|
|
|
|
|
1. Unless otherwise specified, the above data are measured at TA=25℃, humidity <75%, nominal input voltage 230Vac and rated output
load;
2. Ripple and noise are measured at 20MHz, using 300mm twisted pair wire, while the terminal is paralleled with a 0.1uF
high-frequency ceramic capacitor and a 47uF electrolytic capacitor.
3. Accuracy: including setting error, linear adjustment rate;
4. The power supply is regarded as a component in the system and needs to be confirmed with the terminal device for
electromagnetic compatibility.
|
|
|
|
|
