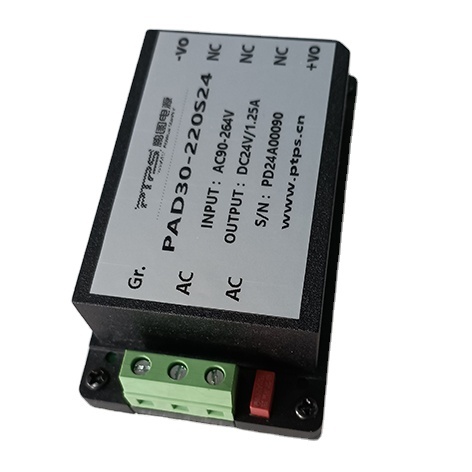

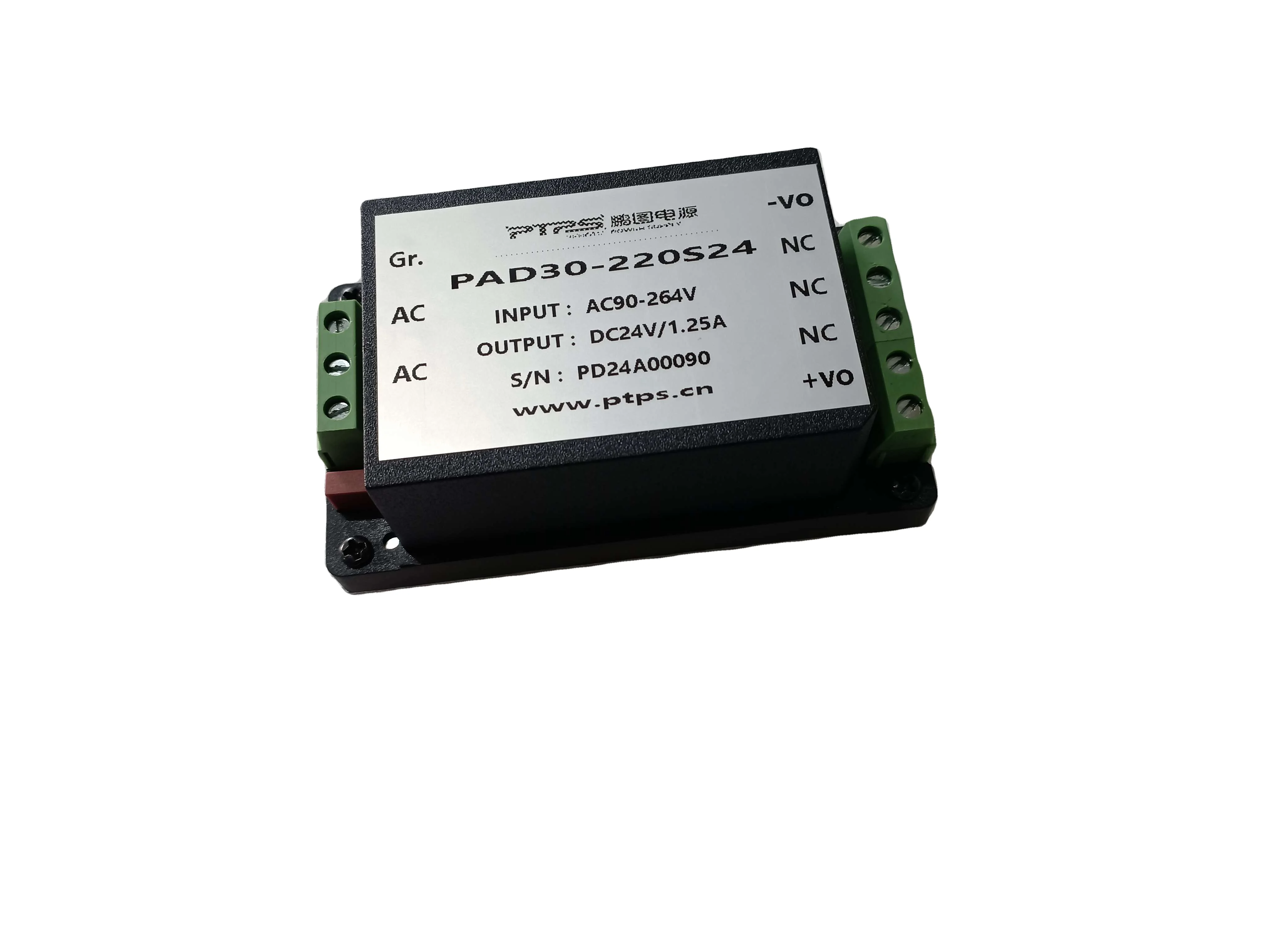

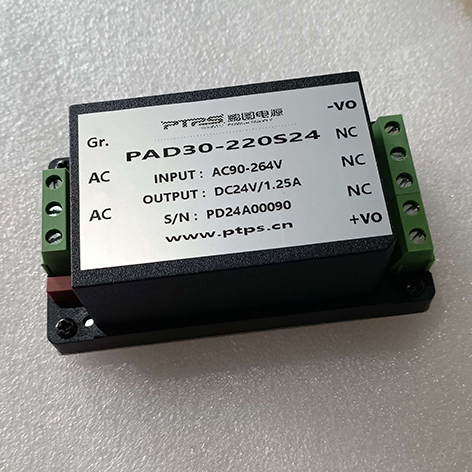

PAD Series 15-40W

Name: PAD Series 15-40W
Brand: MY SHOP
SKU: 1601352201329
Price: 10 USD
Availability: InStock

0.0 (0)

0 Sold

$10.00

This series has the advantages of universal input voltage range, high cost performance, low power consumption, high efficiency,
high reliability, safe isolation and so on.Widely used in industrial control, communications, military, street lamp control, major
research institutes, vehicle equipment, ships and other fields.

Item	Output power	Output voltage	Output current
PAD15-220S12	15W	12V	1.25A
PAD20-220S24	20W	24V	0.83A
PAD25-220S48	25W	48V	0.52A
PAD40-220S15	40W	15V	2.66A

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Output Power:

15W

20W

25W

40W
Output voltage:

12V

24V

48V

15V
Output current:

1.25A

0.83A

0.52A

2.66A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	100-200KHZ
Type	AC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Output Type	Single

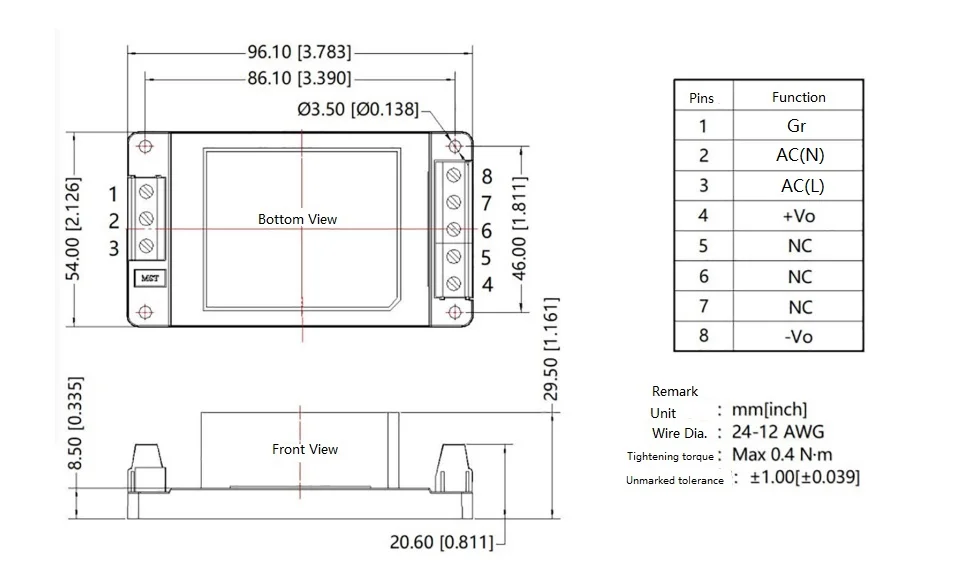

Size	96.15429.5mm	Model Number	PAD Series
Warranty	2 years	Customized support	Custom LOGO
Certificate	CE,RoHs, ect

Packaging and delivery

Selling Units	Single item	Single package size	28X25X12 cm
Single gross weight	3.000 kg

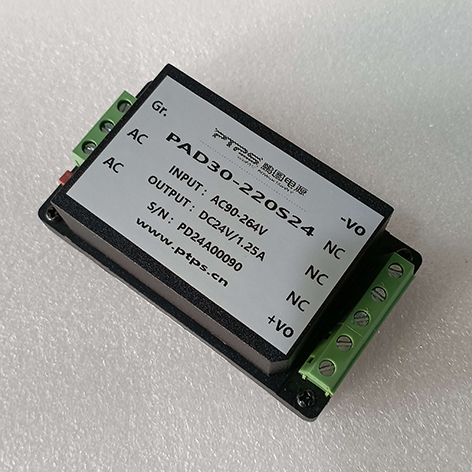

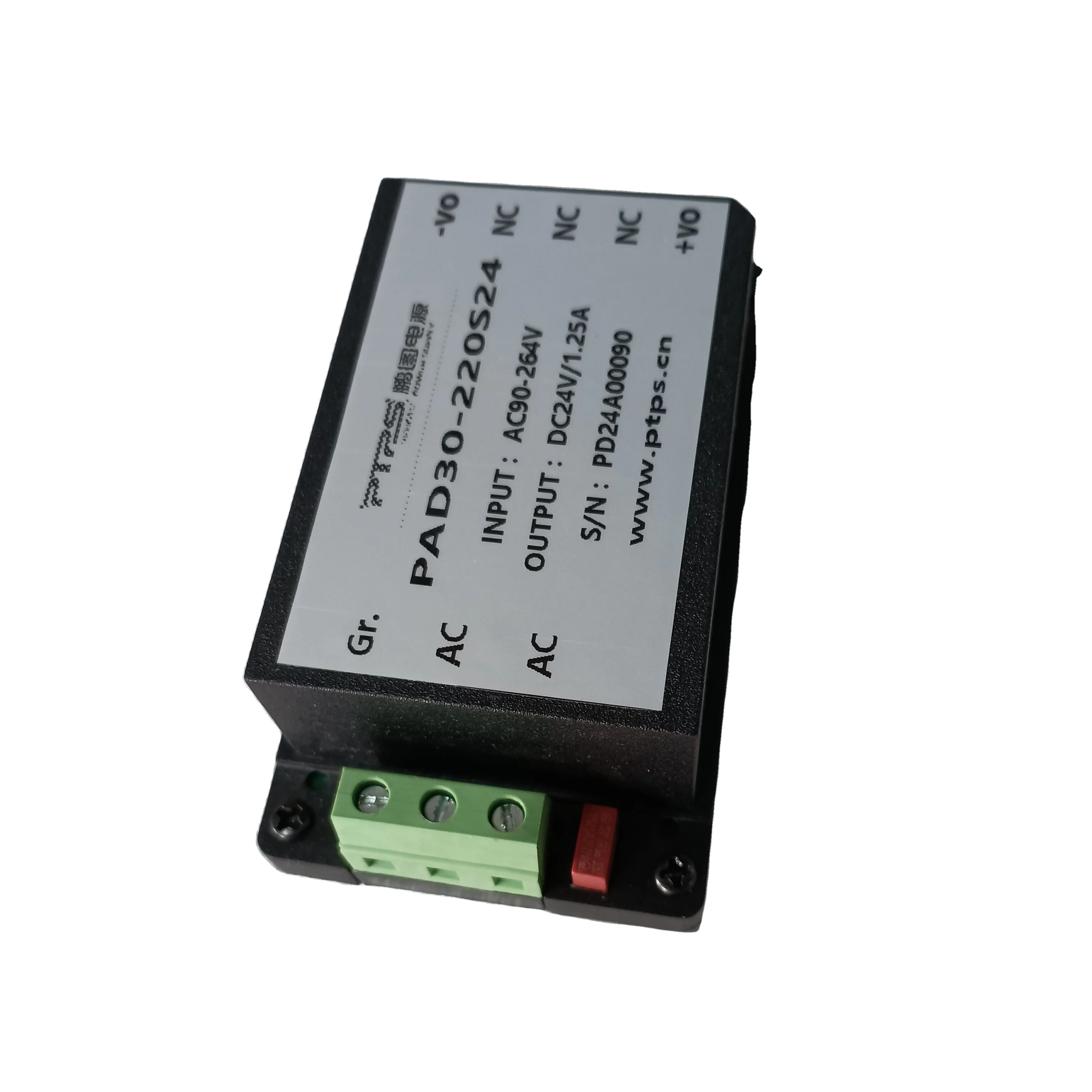

10-40W AC DC Din rail power supply
This series has the advantages of universal input voltage range, high cost performance, low power consumption, high efficiency,
high reliability, safe isolation and so on.Widely used in industrial control, communications, military, street lamp control, major
research institutes, vehicle equipment, ships and other fields.

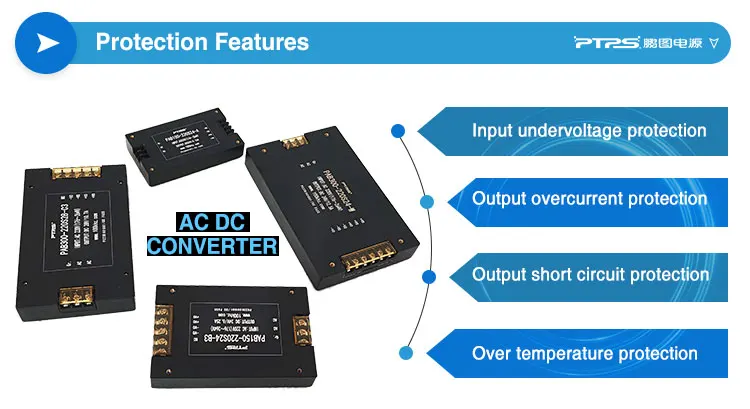

Features:
* Wide voltage input:85-265V/ 165-265V/100-460VAC for optional
* Isolated Input and output
* Over-temperature protection
* Short-circuit protection and self-recovery
* Long life and high reliability
* 100% full load burn-in test

Output Characteristic:

* Voltage set-point accuracy ……………… ±2%
* Line Regulation (Main) ……….........……… ±0.5%
* Load regulation (Main) ………........…..........±0.5%
* Output Current Limited ................................. 120% （Typ）
* Output current …………………………………2-15A for optional
* Output voltage …………………………………5-48V
* Power ……………………………………………10-40W

General Characteristic:
* Switching frequency …………………… 100-200 KHz
* Isolation resistance …………………… 200 MΩ
* Isolation voltage * Input-output:>1500 VAC/MIN (Leakage current ＜5mA)
* Input-case:>1500 VAC/MIN (Leakage current ＜5mA)
* Output-case:>500 VDC/MIN
* Main-Viice: >500 VDC/MIN

* Environmental Characteristic

* Substrate Working Temperature ………Industry: -25-+85℃
J I: -40-+85℃
* Storage temperature …………………… Industry: -45~ +105℃

J: -55-+105℃
