Home > New Energy On-board Power Supply > AC DC Converter(OBC) > PAB-M Series

1/1

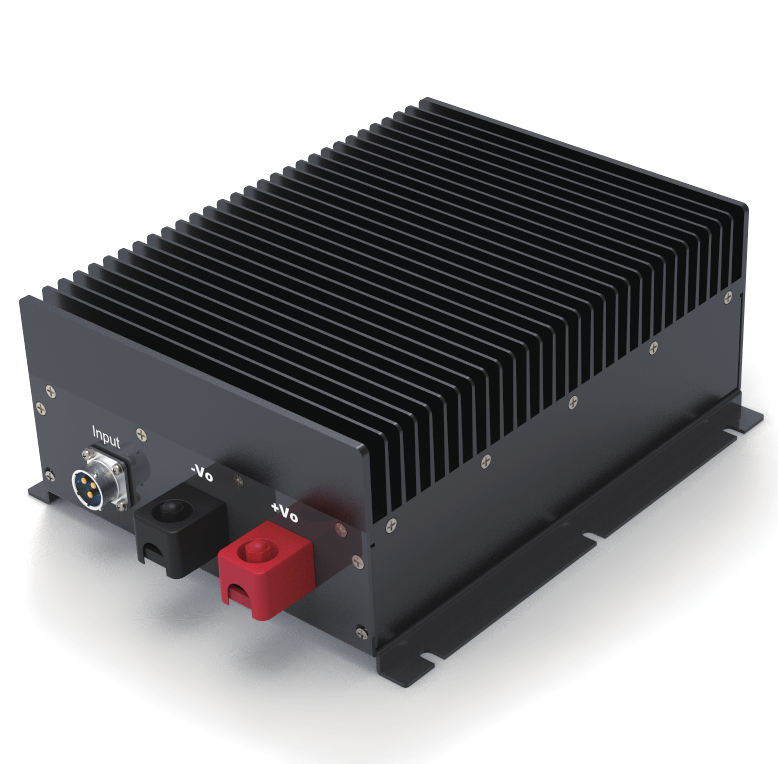

PAB-M Series 1500-2000W

Name: PAB-M Series 1500-2000W
Brand: MY SHOP
SKU: 1601590648194
Price: 260 USD
Availability: InStock

0.0 (0)

0 Sold

$260.00

Input V. (Vac)	Input V. range (vac)	Output V.(V)	Output Curr. (A)	Models
220W	90-264	24	60	PAB1500-220WS24-M
		48	35	PAB2000-220WS48-M
		72	25	PAB2000-220WS72-M
		110	18	PAB2000-220WS110-M
		144	13	PAB2000-220WS144-M
		220	8	PAB2000-220WS220-M
		360	6	PAB2000-220WS360-M
		540	3	PAB2000-220WS540-M

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Color:

Black
Output Power:

1500 W

2000W

2000A
Input Voltage:

90-264V
Output Voltage:

24V

48V

72V

110V

144V

220V

360V

540V
Output Current:

60A

35A

25A

18A

13A

8A

6A

3A

Quantity:

Add to Favorites (0)

1/1

Description

Key attributes

Phase	Single Phase	Output Frequency	100-200KHZ
Type	AC/DC Converter	Place of Origin	Jiangsu, China
Brand Name	Pengtu	Output Type	Single

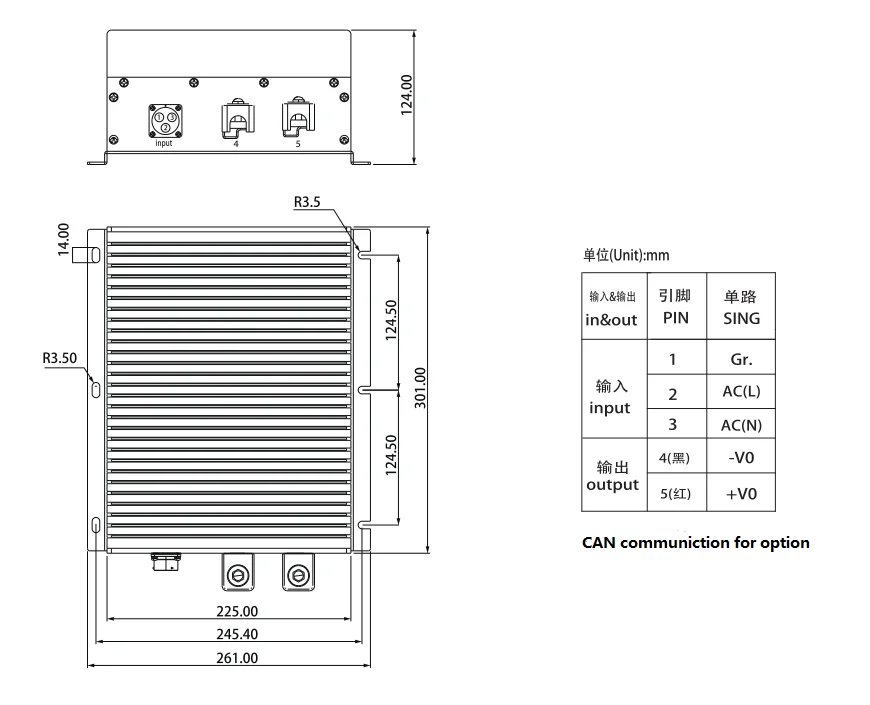

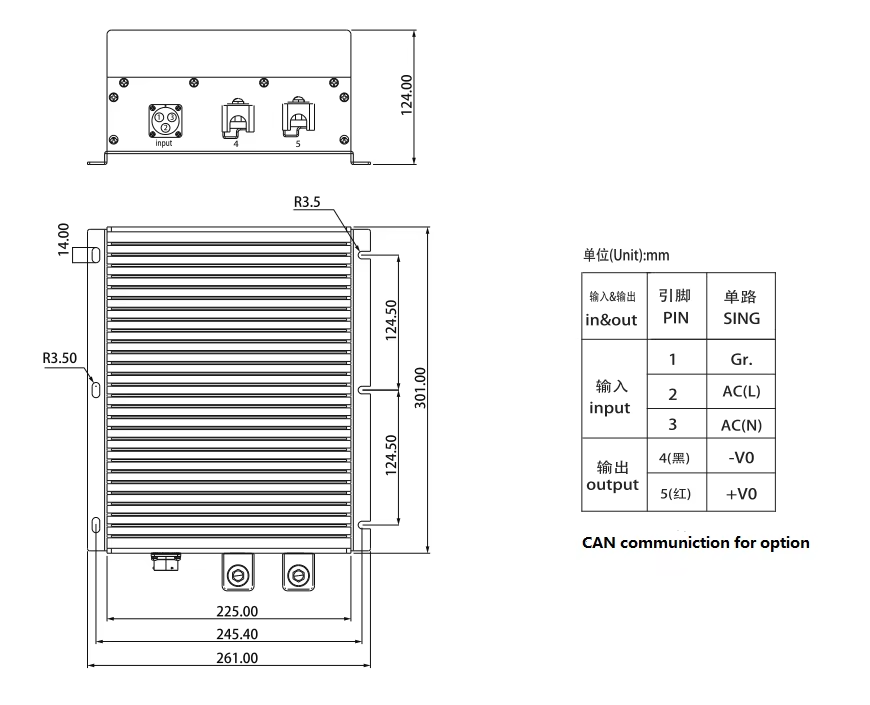

Size	261301124mm	Model Number	PAB-M Series
Warranty	2 years	Customized support	Custom LOGO
Certificate	CE,RoHs, ect

Packaging and delivery

Selling Units	Single item	Single package size	30X28X26 cm
Single gross weight	4.000 kg

Features
* Broadband noise filter input
* Surge surpress circuit input
* High efficiency, high reliability, long service life design
* CAN communication (Optional)
* Refer to UL1950, IEC950 safety regulation
* Attractive outline design

Conditions: All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal
load.

Input Characteristic Voltage range：220VAC (Normal Rated Value): 176 ~ 264 VAC Output Characteristic Voltage set-point accuracy ……………… ±2%
Line Regulation (Main) ……….........……… ±0.5%
Load regulation (Main) ………........…..........±0.5%
Cross regulation ………........….………........±3%
Output Current Limited ................................. 120% （Typ）
Output current …………………………………5-60A for optional
Output voltage …………………………………24-540V
Power ……………………………………………1200-2000W
General Characteristic Switching frequency …………………… 100-200 KHz
Isolation resistance …………………… 200 MΩ
Isolation voltageInput-output: >1500 VAC/MIN (Leakage current ＜5mA)
Input-case: >1500 VAC/MIN (Leakage current ＜5mA)
Output-case: >500 VDC/MIN
Main-Viice: >500 VDC/MIN

Environmental Characteristic
Substrate Working Temperature ………Industry: -25-+85℃
Military I: -40-+85℃ Military II: -55-+85℃
Storage temperature …………………… Industry: -45~ +105℃
Military: -55-+105℃

Input V. (Vac)		Input V. range (vac)	Output V.(V)	Output Curr. (A)	Ripple &noise pk-pk (mv)	Efficiency (Typ)	Models
SINGLE	220W	90-264	24	60	200	90%	PAB1500-220WS24-M
			48	35	300	91%	PAB2000-220WS48-M
			72	25	500	93%	PAB2000-220WS72-M
			110	18	600	93%	PAB2000-220WS110-M
			144	13	600	93%	PAB2000-220WS144-M
			220	8	800	93%	PAB2000-220WS220-M
			360	6	800	93%	PAB2000-220WS360-M
			540	3	800	93%	PAB2000-220WS540-M
