PAB-G3 Series 600-1000W

SKU:
0.0 (0)
0 Sold
$188.00 $0.00

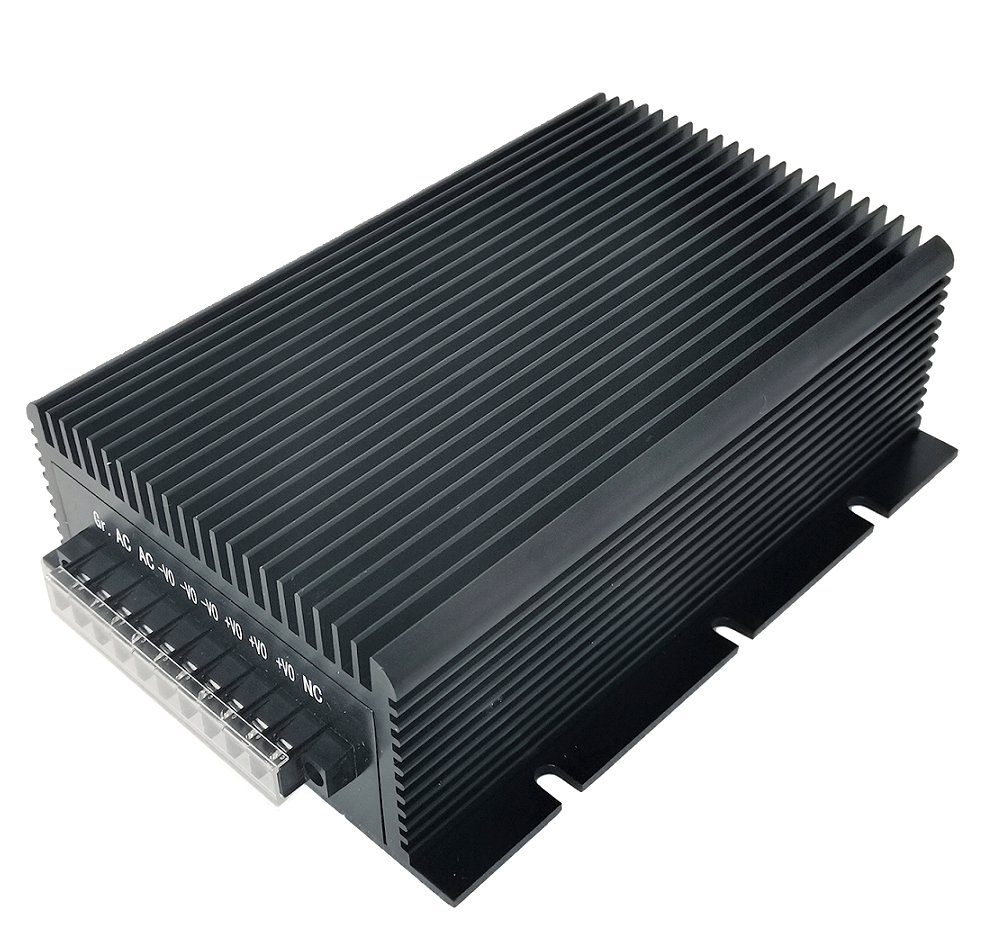

The PAB-G3 600-1000W Series Power Module is designed for high-performance applications. With a wide input range of 176~264VAC and power output from 600W to 1000W, it offers flexible voltage options from 5V to 48V to meet diverse requirements. Featuring high efficiency, excellent heat dissipation, and reliable operation even under harsh conditions, the module is equipped with built-in broadband noise filtering, surge suppression, and multiple protection functions (undervoltage, overcurrent, short circuit, and over-temperature).
Ideal for industrial automation, communication equipment, new energy vehicles, and defense applications, the PAB-G3 Series delivers a trustworthy and efficient power solution.
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
$128.00
30-max
    Please select the information you want X
  • Color:
    Black
  • Output Lines:
    Single
  • Input Voltage:
    176-264
  • Output Power:
    600W
    1000W

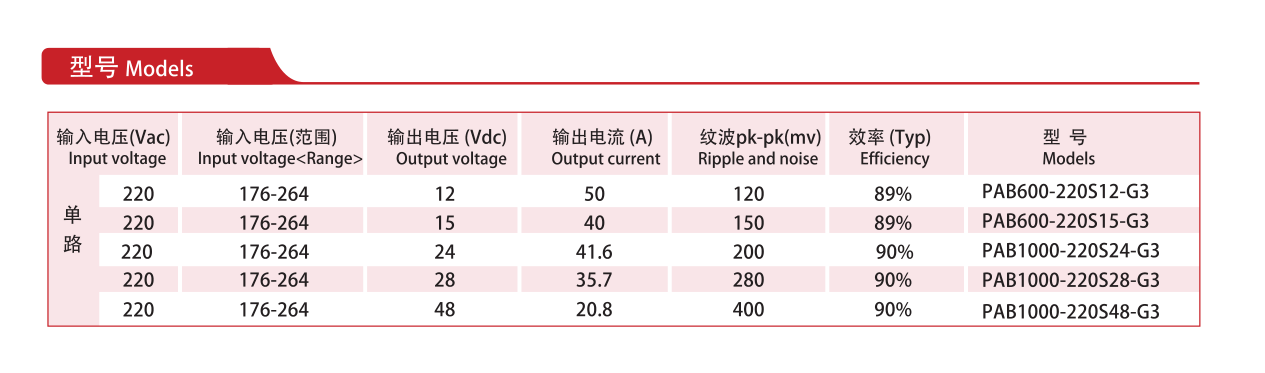

  • Output Voltage/Output current:
    12V/50A
    15V/40A
    24V/41.6A
    28V/35.7A
    48V/20.8A
    Please select the information you wantX
Quantity:
1 * $188 = $188
save $0.00
  • PAB-G3 Series 600-1000W
  • PAB1000-220S48-G3 | 1000W High Efficiency AC DC Converter | 48V 20.8A Output 90 Percent Efficiency
  • PAB-G3 Series 600-1000W
  • PAB1000-220S48-G3 | 1000W High Efficiency AC DC Converter | 48V 20.8A Output 90 Percent Efficiency
1/1
  • PAB-G3 Series 600-1000W
  • PAB1000-220S48-G3 | 1000W High Efficiency AC DC Converter | 48V 20.8A Output 90 Percent Efficiency
  • Description

Key attributes

Phase Single Phase Output Frequency 100-200KHZ
Type AC/DC Converter Place of Origin Jiangsu, China
Brand Name Pengtu Output Type Single/Dual

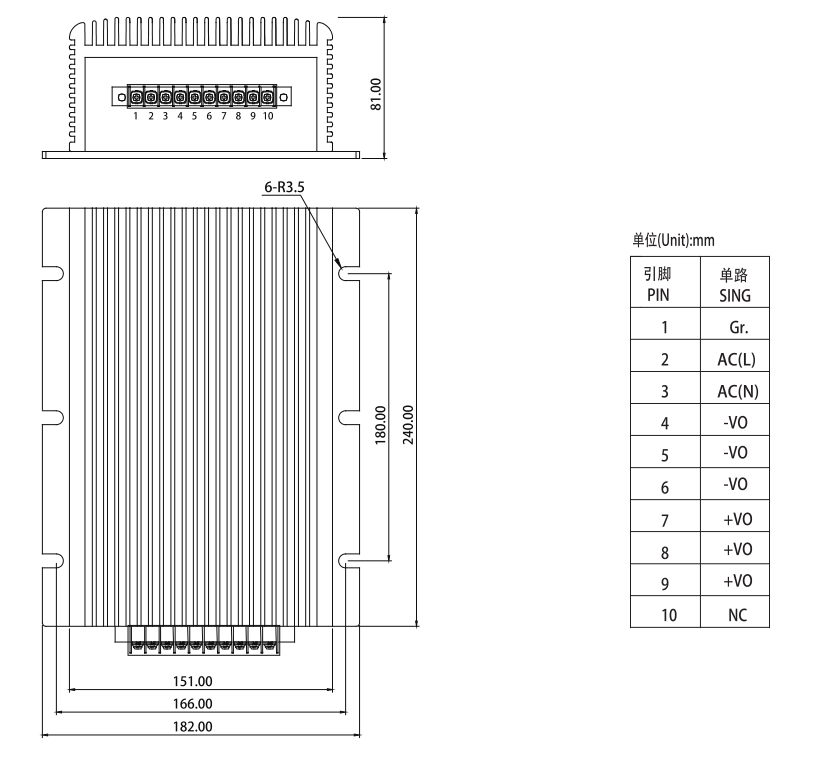

Size 180*115*27mm Weight 400g
Warranty 2 years Customized support Custom LOGO
Certificate CE,RoHs, ect

Packaging and delivery

Selling Units Single item Single package size 20X18X16 cm
Single gross weight 4.000 kg
Highlights at a glance
1000W 48V output ideal for telecom data centers and high power PoE switches
Industry leading 90 percent efficiency and 400mV ripple performance
All specifications tested at 25C room temperature and normal resistive load
About this supplier
About Nanjing Pengtu Power SupplyFounded in 2007 in Nanjing, China, Nanjing Pengtu Power Supply Co., Ltd. is a national high-tech enterprise specializing in module power supplies, photovoltaic power supplies, railway power supplies, and vehicle-mounted power supplies.20+ Years Expertise ~ Professional R&D team with extensive software, hardware, and electrical design experience.Strong Innovation ~ Over 20 national patents, multiple mature and stable product series.Strict Quality Control ~ ISO9001:2015 certified, CE & EMC compliant, advanced testing and production equipment.Wide Applications ~ Rail transit, solar energy, automotive, aerospace, electricity, automation, marine, and new energy industries.Global Reach ~ Trusted by well-known domestic clients and exported to Southeast Asia, Europe, and North America.One-Stop Service ~ From design to after-sales, offering customized solutions with rapid delivery.We are committed to Quality & Service, delivering high performance, reliable power solutions that create more value for our customers worldwide.
Company overview
Competitive advantages
Factory profile
Packaging & shipping specifications
FAQS
  • Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.
  • How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment
  • What can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply
  • Why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.
  • What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express DeliveryAccepted Payment Currency:USD,EURAccepted Payment Type: T/T,L/C,PayPal,Western Union,CashLanguage Spoken:English,Chinese,Spanish,Portuguese,Korean
