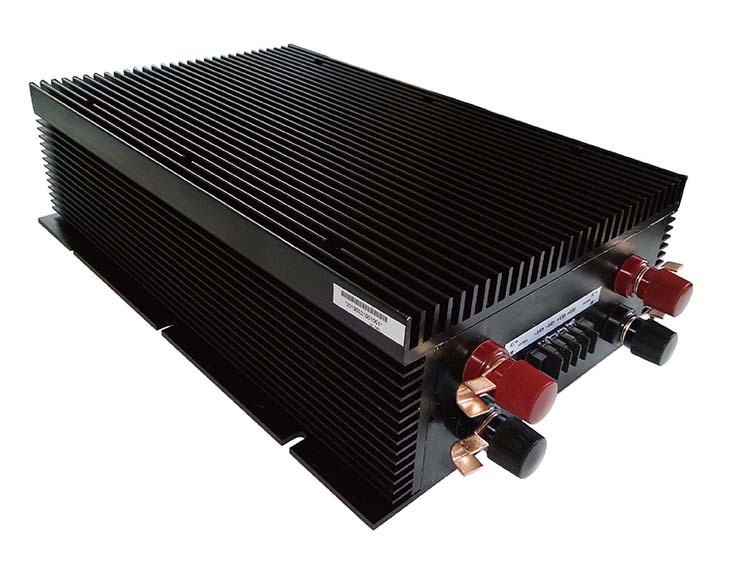

PAB-H Series 1500-2000W

SKU:
0.0 (0)
0 Sold
$480.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Black
  • Input Voltage:
    176-264V
  • Output Power:
    1500W
    2000W
  • Output Voltage:
    12V
    15V
    24V
    28V
    110V
  • Output Current:
    125A
    100A
    62.5A
    53.5A
    18.1A
    Please select the information you wantX
Quantity:
  • PAB-H Series 220VAC to 24VDC Power Supply 1.5KW | Industrial AC DC Power Supply
  • PAB-H Series 220VAC to 24VDC Power Supply 1.5KW | Industrial AC DC Power Supply
  • PAB-H Series 220VAC to 24VDC Power Supply 1.5KW | Industrial AC DC Power Supply
  • PAB-H Series 220VAC to 24VDC Power Supply 1.5KW | Industrial AC DC Power Supply
1/1
  • PAB-H Series 220VAC to 24VDC Power Supply 1.5KW | Industrial AC DC Power Supply
  • PAB-H Series 220VAC to 24VDC Power Supply 1.5KW | Industrial AC DC Power Supply
  • Description

Key attributes

Phase Single Phase Output Frequency 160-200KHZ
Type AC/DC Converter Place of Origin Jiangsu, China
Brand Name Pengtu Output Type Single/Dual

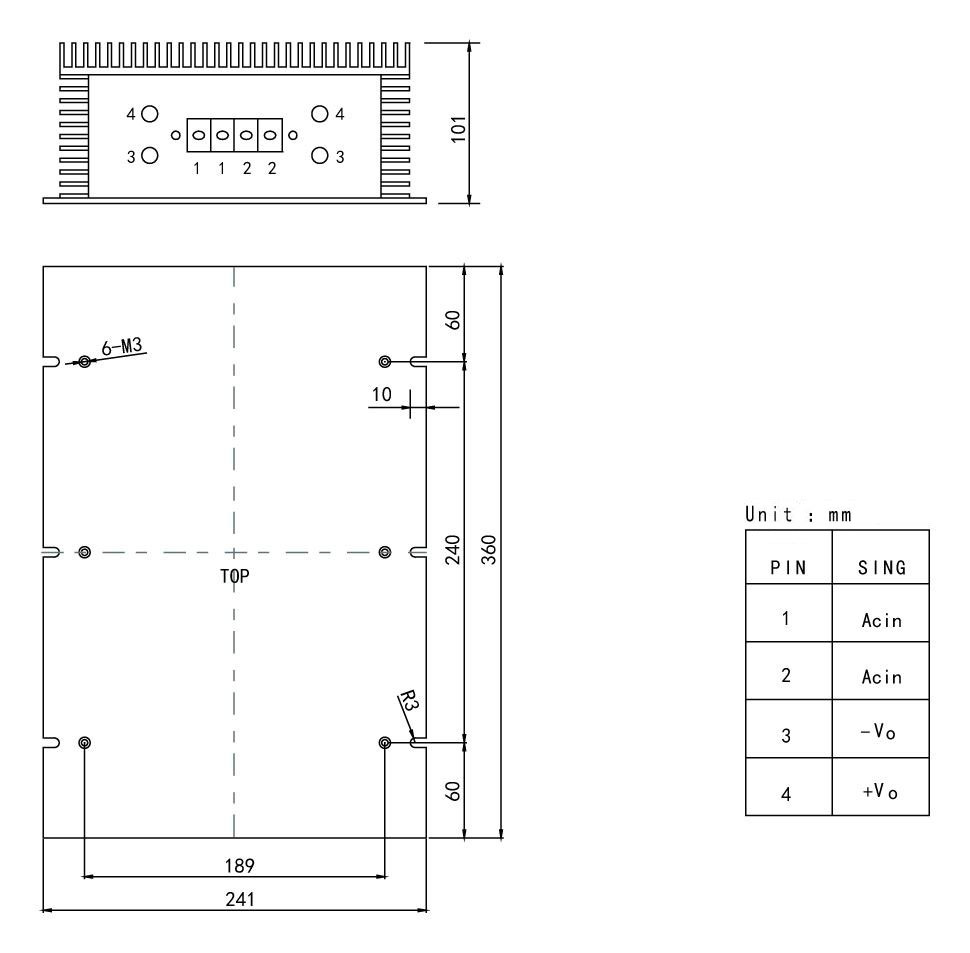

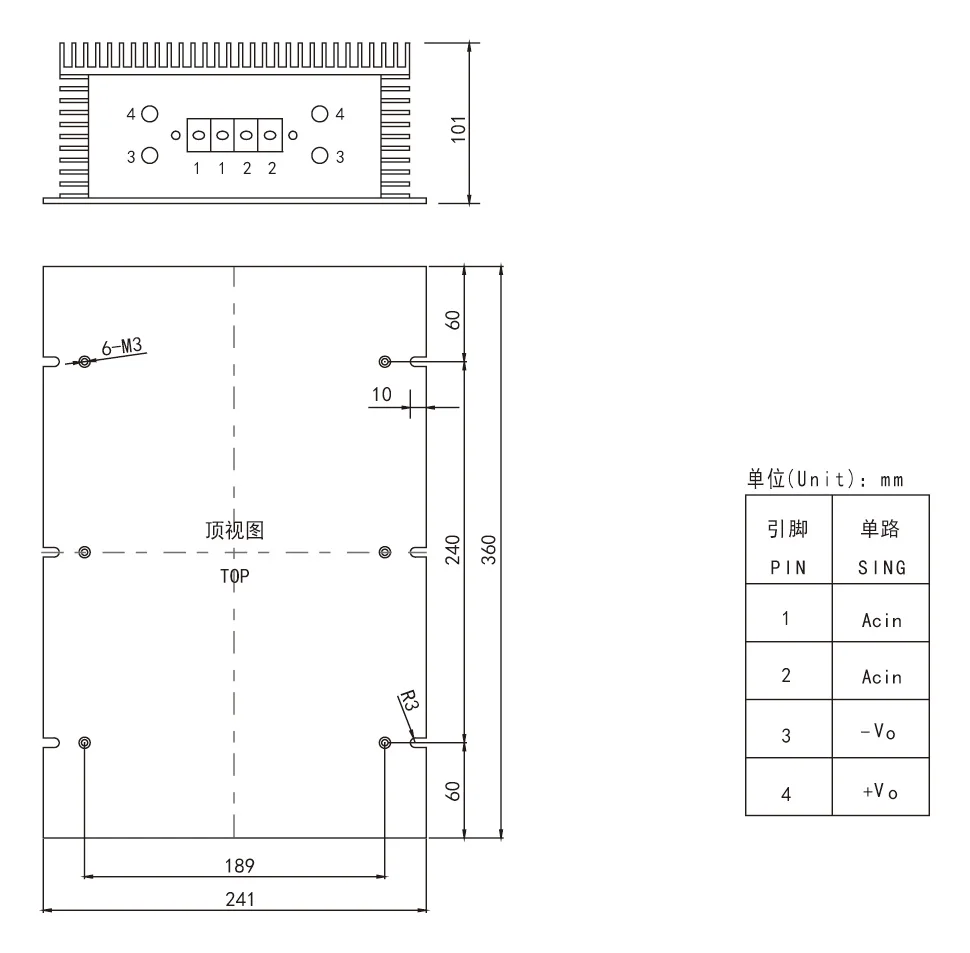

Size 101*241*360mm Weight 800g
Warranty 2 years Customized support Custom LOGO
Certificate CE,RoHs, ect


Packaging and delivery

Selling Units Single item Single package size 40X30X15 cm
Single gross weight 8.000 kg
Product Description
Specification
Features:
Wide input voltage
Broadband noise filter of input
Surge suppress circuit of input
Comply with UL1950, IEC950 safety regulation
Nice shape design
Easy Installation
Terminal connection method
Fast dynamic response
Input Characteristic:
Inputvoltage range……………………176 ~ 264 VAC Rated value: 220VAC
Reverse Protection:
Fuse Outside
Output Characteristic:
Voltage accuracy …….................…………±1%
Line regulation(main) ………………........±0.2%
Load regulation(main) …………….......…±0.4%
Temperature coefficient …………........…±0.01%/℃
Output current limiting ………….........… 110%(Typ)
Dynamic response ……………………… 400μs
Output current …………………………… 6-125A
Output voltage …………………………… 12-110V
Power ……………………………………1500-2000W
General Characteristic:
Switching frequency …………………… 160-200 KHz
Isolation resistance …………………… 200 MΩ
MTBF ………………………………… >500000H
Isolation voltage:
Input-output:>1500 VAC/Min (Leakage current<5mA)
Input-case: >1500 VAC /Min (Leakage current<5mA)
Output-case: >500 VDC/Min
Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃; J I: -40-+85℃;
Storage temperature ……………….. Industry: -45~ +105℃; J: -55-+105℃
item
value
Place of Origin
China
Jiangsu
Brand Name
PengTu
Model Number
PAB1500-220S24-H
Output Power
1500W
Output Type
Single
Input Voltage
220VAC
Output Voltage
24VDC
Output Frequency
160-200KHz
Output Current
62.5A
Size
101*241*360mm
Voltage Set-point Accuracy
±1%
Line Regulation
±0.2%
Output current Limiting
120%(Typ)
Isolation Resitstance
200MΩ
MTBF
>500000h
Packing & Delivery
carton (it's ok according to your requirement)

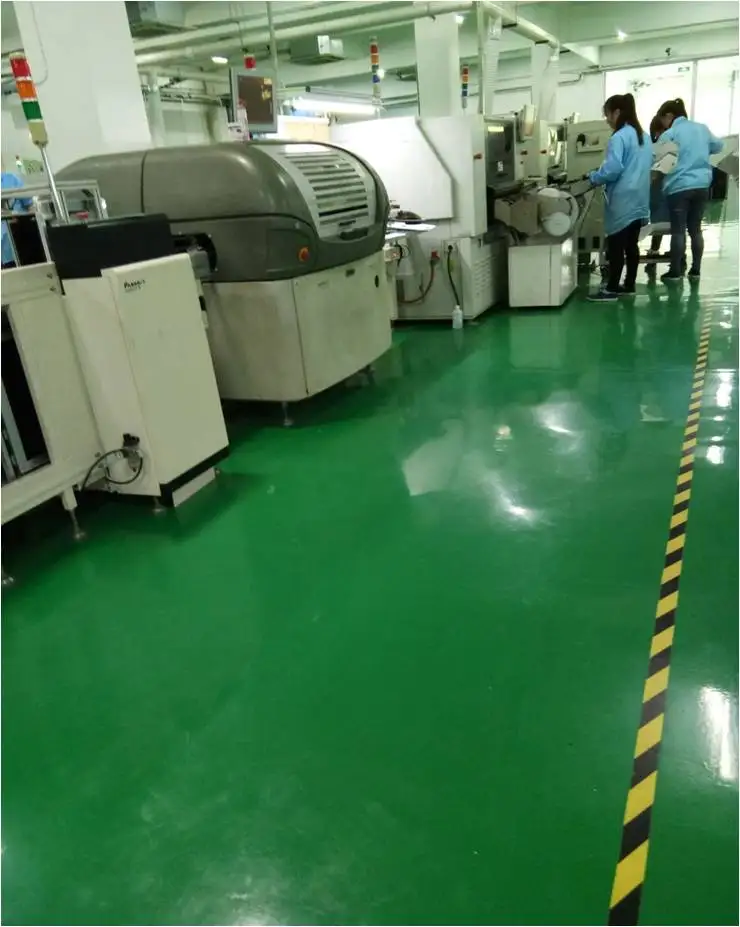

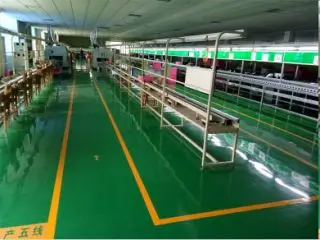

Company Profile
00:14
00:14

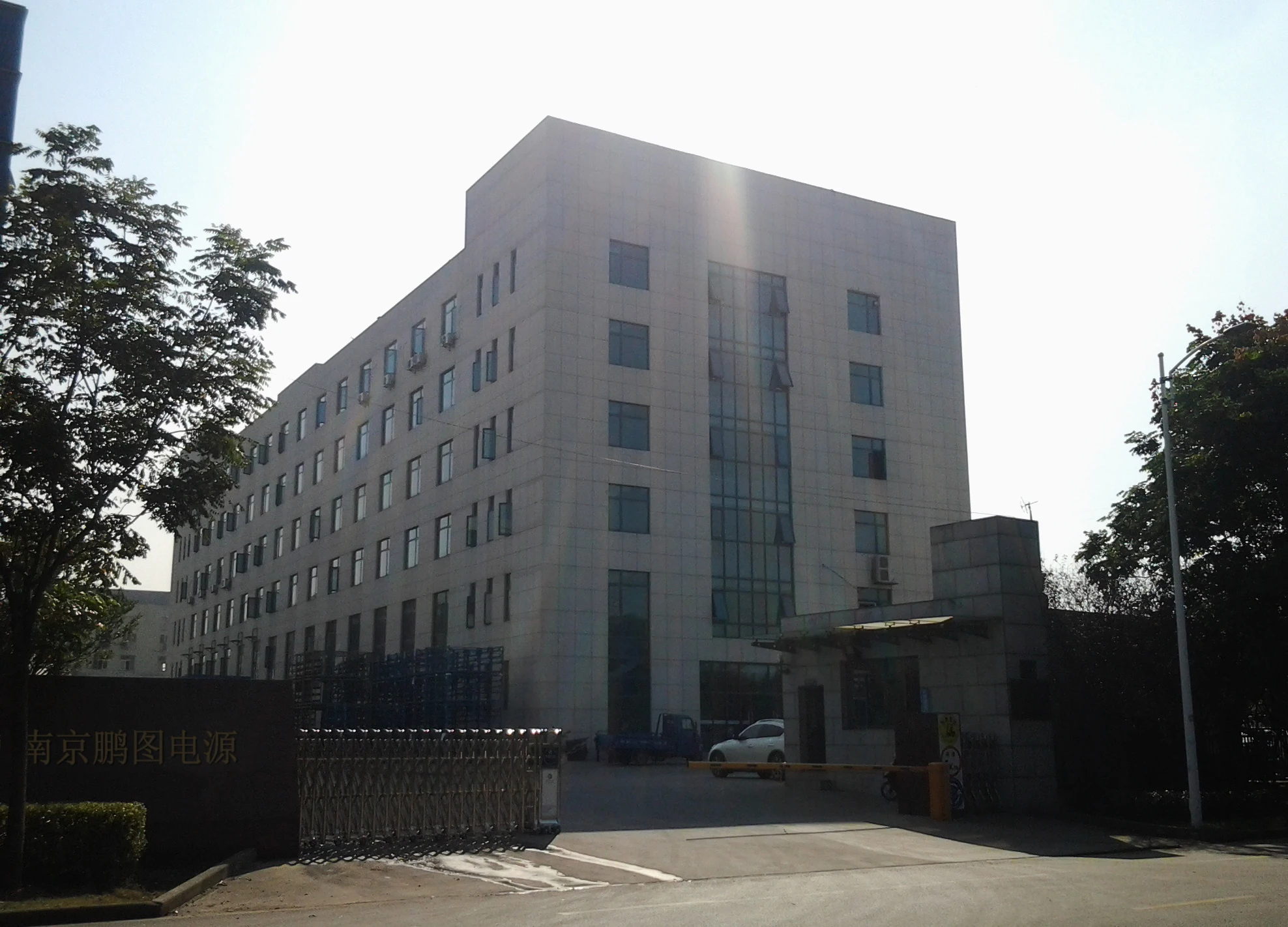

Nanjing Pengtu Power Supply Co., Ltd was established in 2007, is located in NO. 26 Daxiaochang Road, Qinhuai District, Nanjing, China. Our company is a manufacturer specializing in power product development, design, production, sales and service company. Our company has R&D, Production, Marketing, Quality Control department and other functional departments, And has a number of high-tech talents, which college degree or above of our personnel is more than 50% of the total number of employees. Our company has not only passed ISO9001-2008 Quality System Certification, and some products through the Measurement of Jiangsu Province Academy of Sciences and National Electric Power Academy of Sciences and other authorities detection. Product safety and electrical properties fully comply with the Ministry of Information Industry YD/T731-2000 High Frequency Switch Rectifier Standard. In the power supply field, our company has independent research and development of AC/DC, DC/DC switching power supply module series mature products, power covers 3W-1000W. And our company strictly reference (GJB9001A - 2001) Nations Standard Quality Management System requirements, design and produce the special specifications of the power supply. Since its establishment to now, our company adhere to the science and technology as the forerunner, take the technology as the backing, and constantly develop all kinds of hi-tech leading colleague's new products. Currently we has a number of national patent. Our company produces the "PengTu" brand power has been widely used in railway, military, aerospace, power, communication, control, instrument, car equipment, ship and major scientific research institutions, etc various fields, from the customer high praise. We will always remember the business philosophy "quality first service first", to provide users with convenient one-stop service. With our practical, innovation, refinement spirit of enterprise, we accelerate the company's technical innovation and product development and at the same time we will with more quality products, more detailed services and more excellent results return to the vast number of customers. Let us work together to create you and I better tomorrow.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(20.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Northern Europe(10.00%),Southeast Asia(10.00%),Mid East(6.00%),Eastern Asia(5.00%),South Asia(5.00%),South America(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
ACDC Converter,DC DC Converter,EV on board charger,battery charger,Power Supply

4. why should you buy from us not from other suppliers?
We are a manufacturer specializing in power product development, design, production, sales and service company. We has independent research and development of AC/DC, DC/DC switching power supply and EV on board charger. Various products are widely used.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Korean
